TP-Link VIGI NVR1008H 8 Channel NVR

TP-Link VIGI NVR1008H 8 Channel NVR

Model: VIGI NVR1008H

Reviews: No reviews yet

Price: 5,200.00৳

Regular Price: 6,700.00৳

Save: 1,500.00৳

Key Features:

  • IP Video Input: 8-Channel
  • Incoming Bandwidth: 80 Mbps
  • Outgoing Bandwidth: 60 Mbps
  • Multi-View Display: 1/4/6/8
  • Mobile Phone Access: Android, iOS
  • Interoperability: ONVIF, CGI
  • Warranty Details: 1 Year
Buy Now

Specifications

Audio and Video

IP Video Input 8-Channel
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode HDMI/VGA Simultaneous Output
Multi-View Display 1/4/6/8

Decoding

Audio Compression G.711A/G.711U/G.726
Decoding Format H.265+/H.265/ H.264+/H.264
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Live View/Playback Resolution 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback 4 Channel†
Decoding Capability 1-ch @ 8MP, 2-ch @ 4MP, 4-ch @ 2MP

Recording Administration

Record Mode • Manual Recording
• Scheduling Recording
• Motion Detection Recording
Playback Mode • Instant Playback
• Regular Playback
• Tag Playback
• Event Playback
Backup Mode • Regular Backup
• Video Clip Backup
Playback Function • Play
• Pause
• Stop
• Fast ForwardM
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording • Audio On/Off

Network

Protocol TCP/IP, DHCP, DNS, NTP, UPnP
Mobile Phone Access Android, iOS
Incoming Bandwith 80 Mbps
Outgoing Bandwidth 60 Mbps
Web Browser Chrome (57+), Firefox (52+), Edge (91+)
Interoperability ONVIF, CGI

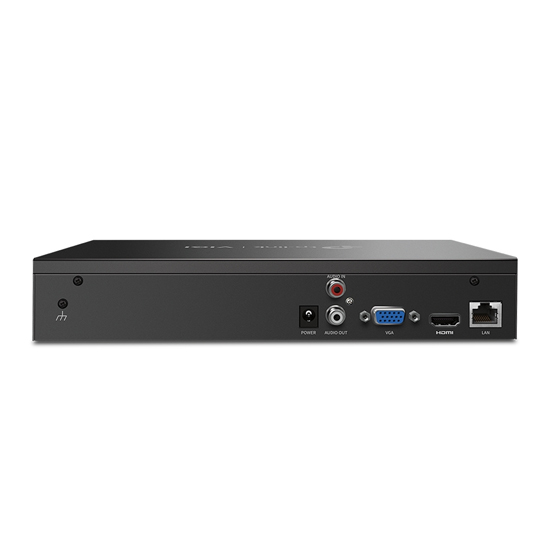

External Interface

Network Interface 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface 2× USB 2.0
Audio Interface 1, Audio In; 1, Audio Out
Alarm In/Out N/A
Serial Interface N/A
Power 1× DC Jack
Reset Button 1
Speaker N/A
eSATA N/A
HDMI 1
VGA 1

HARD DISK

SATA 1 SATA Interface
Capacity Up to 16 TB

Alarm

General Alarm • Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
Anomaly Alarm • Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
Alarm Linkage • Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm

Environmental

Operating Temperature -10–55 °C
Storage Temperature -40–70 °C
Storing/Storage Humidity 10%~90% RH Non-Condensing
Working Temperature • NVR: -10–55 °C
• Power Adapter: 0–40 °C
Working Humidity 10%~90% RH Non-Condensing

Power Type

External Power Supply DC 12V/1.5A
Max. Power Consumption 4.25 W (without disk)

Certification

Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

VIDEO/IMAGE

Video Input 8-Channel IP Video Input, up to 8 MP Resolution
Recording Resolution Recording Resolution: 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
HDMI Output Resolution 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Interface

Video Output Recording Resolution: 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
HDMI/VGA Output Resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz

Physical Specification

Weight 578.5 g
Net Weight 0.59 Kg
Gross Weight 0.95 Kg
Package Content VIGI Network Video Recorder
Power Adapter
HDD Screws
Mouse
Quick Installation Guide

Warranty Information

Warranty Details 1 Year

Description

TP-Link VIGI NVR1008H 8-Channel NVR – Smart, Scalable guidance for Growing screen Needs

Upgrade your screen structure with the TP-Link VIGI NVR1008H, a dependable and scalable 8-channel Network Video Archivist(NVR) aimed to meet the requirements of fragile to medium companies, homes, retail stores, and department surroundings. Engineered to extend high-conclusion videotape recording, exceptional playback, remote monitoring, and effective storehouse, this NVR delivers a comprehensive and professional-grade guidance result.

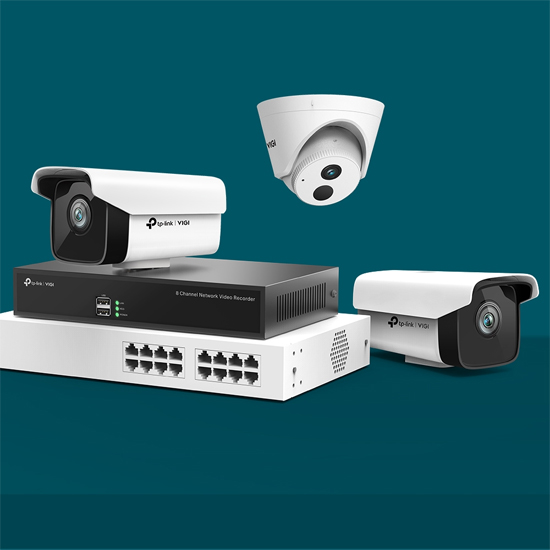

Expand Your guidance with 8-Channel Brace

The VIGI NVR1008H supports up to 8 IP guidance cameras, making it ideal for companies appearing to expand their screen content. Whether you’re covering entries, hallways, cash registers, storehouse areas, or parking parcels, this system ensures every side is covered. Its capability to manage eight channels contemporaneously allows for centralized monitoring and lesser effectiveness in guarding your property.

Crisp and Clear Recording – Up to 5MP Resolution

Experience high-description videotape with brace for over to 5MP conclusion, allowing clear and detailed images that are pivotal for relating people, objects, and events. From day to night, inner or out-of-door cameras, the VIGI NVR1008H ensures that your guidance footage maintains the clarity demanded for substantiation and dissection.

Effective H.265 Compression Saves Storage and Bandwidth

Seasoned with H.265 videotape contraction, the NVR1008H optimizes storehouse operation and reduces bandwidth consumption without compromising videotape quality. assimilated to standard-issue H.264, H.265 delivers significantly better contraction classes, allowing for further storehouse time on the same hard-bitten drive and bettered streaming interpretation across your network.

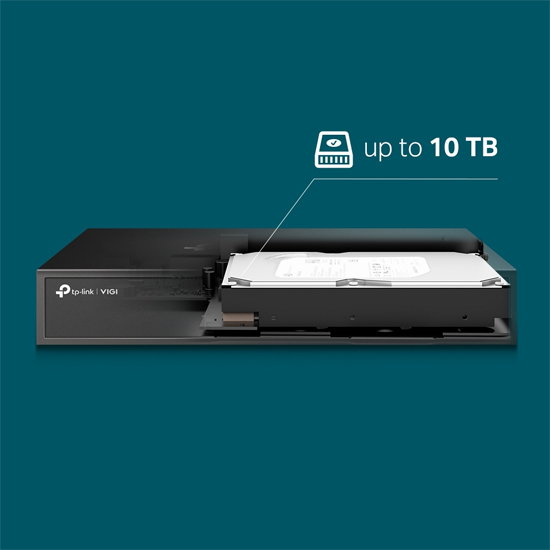

Bountiful storehouse with Flexible Options

The TP-Link VIGI NVR1008H supports one SATA hard-bitten drive with a ultimate capacity of over to 10 TB, giving away you bountiful room to store days, weeks, or indeed months of videotape footage, depending on reporting quality and operation. Whether you conclude for nonstop, listed, or stir-touched off recording, this NVR provides adjustable and effective storehouse results to meet your screen demands.

Smart Video Management and Intelligent Detection

When exercised with TP-Link VIGI cameras, the NVR1008H unlocks important exceptional videotape dissection features, involving:

1. Stir Discovery

2. Intrusion Discovery

3. Line-Crossing cautions

Camera Tampering Discovery

These smart features give real-time cautions, allowing screen brigades to respond incontinently to suspicious conditioning. Events are stressed in playback for quick and ready review, saving time and perfecting episode conclusion.

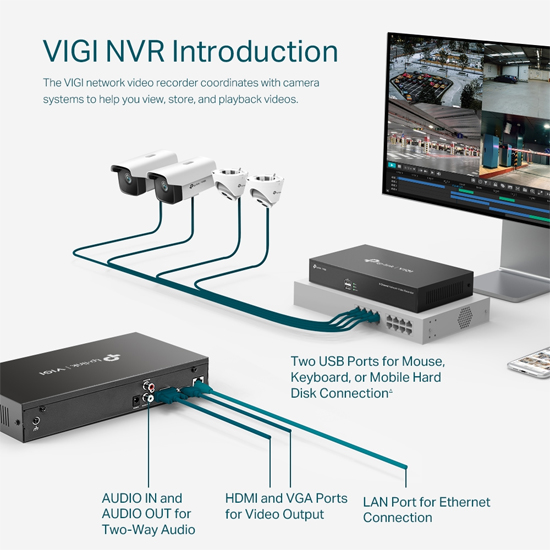

Remote Access Anytime, Anywhere

Cover your property from anywhere in the world with the VIGI Security App, VIGI Security Management System(CMS), or secure trap gate. Whether you’re at home, in the department, or on holiday, you can pierce live videotape feeds, playback recorded footage, and take settings ever utilizing your smartphone, tablet, or PC.

With strong encryption and stoner authentication, your data and videotape feeds remain secure and private at all moments.

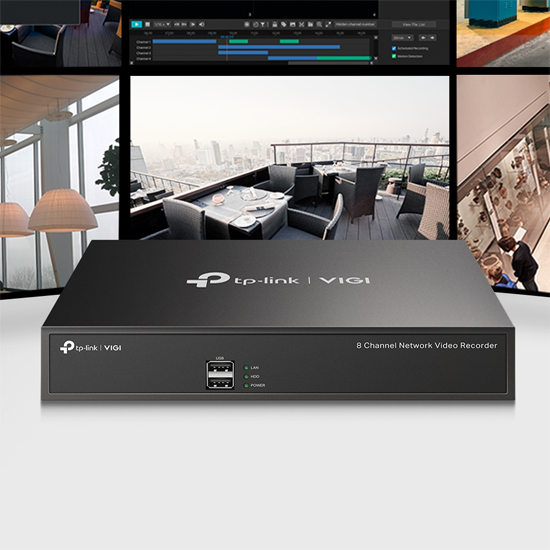

Original Monitoring with HDMI & VGA Affair

The VIGI NVR1008H features HDMI and VGA videotape affair anchorages, allowing direct connection to a examiner or television for real-time original viewing. Whether you’re setting up a devoted control locus or exclusively need original access to your cameras, this NVR supports adjustable exposition options to fit your format.

Ready Installation and stoner-Friendly Interface

Aimed with release of use in mind, the VIGI NVR1008H features spontaneous camera detection and a simplified format process. Indeed druggies with minimum specialized experience can install and operate the system with confidence. The intuitive stoner interface offers clear navigation and quick access to all crucial places involving live prospect, playback, storehouse settings, and system configuration.

Its fanless project ensures quiet operation, making it ideal for use in bruit-sensitive surroundings similar as services or retail spaces.

Crucial Features at a regard

 Supports 8-channel IP camera input

 Up to 5MP videotape conclusion

 Effective H.265 contraction technology

 1 SATA HDD niche supporting up to 10 TB storehouse

 Smart discovery stir, line-voyage, intrusion, tampering

 Remote access via VIGI App, CMS, and trap cybersurfer

 HDMI and VGA affair for live original exposition

 Fanless project for quiet operation

 Plug-and-play format with bus camera detection

With the TP-Link VIGI NVR1008H, you get the full combination of interpretation, simplicity, and scalability. Whether you are expanding an being guidance system or erecting one from scrape, this 8-channel NVR delivers smart monitoring, demitasse-clear recording, and dependable screen — backed by TP-Link’s commissioned interpretation and continuity.
