TP-Link VIGI C540-W 4MP Full-Color PTZ Wi-Fi IP Camera

TP-Link VIGI C540-W 4MP Full-Color PTZ Wi-Fi IP Camera

Model: VIGI C540-W

Reviews: No reviews yet

Price: 6,800.00৳

Regular Price: 7,990.00৳

Save: 1,190.00৳

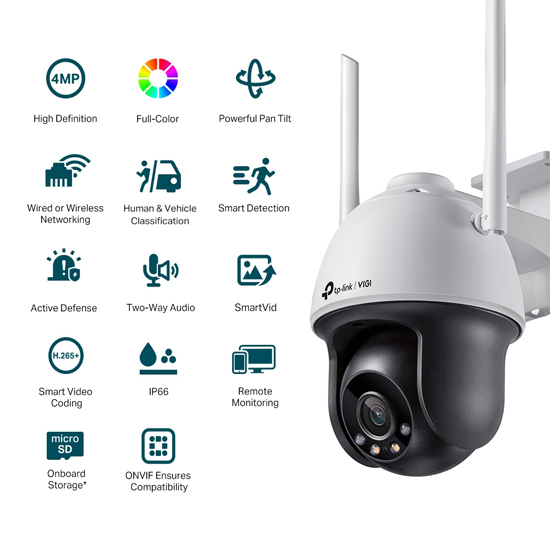

Key Features:

  • Brand: TP-Link
  • Type: Network Camera
  • Day/Night Mechanism: IR Cut Filter
  • Bit Rate Control: CBR, VBR
  • Max. Resolution: 2560 X 1440
  • Lens Type: Fixed Focal Lens
  • Protection: IP66
  • Material: Plastic
  • Warranty Details: 1 Year
Buy Now

Specifications

General Information

Brand TP-Link
Model VIGI C540-W
Type Network Camera

Camera

Slow Shutter Yes
Day/Night Mechanism IR Cut Filter
Shutter Speed 1/3 to 1/10000 s
Image Sensor 1/3” Progressive Scan CMOS
Minimum Illumination 0.005 Lux; 0 Lux with IR/White Light


Day/Night Switch Unified/ Scheduled/ Auto
OSD Setting Yes
Image Parameters Switch Yes
Wide Dynamic Range (WDR) DWDR
SNR ≥ 52 dB
ROI 1 Region
Privacy Mask Up to 4 Masks
Image Enhancement BLC/3D DNR/HLC/SmartIR
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°)

Video

Bit Rate Control CBR, VBR
Max. Resolution 2560 X 1440
H.264 Type High Profile
H.265 Type Main Profile
H.264+ Main Stream Supported
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Video Compression Sub-Stream: H.265/H.264
Main Stream: H.265+/H.265/H.264+/H.264
Main Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Lens

Aperture F1.6
Lens Mount M12
Focal Length 4 mm
Lens Type Fixed Focal Lens
FOV 4mm:
Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
DORI Distance 4 mm:
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

PTZ

3D Positioning Yes
Presets 300
Pan/tilt Range Pan: 0° to 350°, Tilt: 0° to 120°
Manual Control Speed Configurable from 8° to 35°/s
Patrol Scan 8 patrols, up to 8 presets for each patrol
Park Action Yes;
Preset; Patrol Scan
Power-off Memory Yes;
Auto restore to previous PT and lens status after power failure
Pan/tilt Speed Pan Speed:
Configurable from 8° to 44°/s; Preset Speed: 44°/s

Tilt Speed:
Configurable from 8° to 44°/s, Preset Speed 44°/s

Angle Adjustment (Manual)

Range Pan: 0° to 348°
Tilt: 0° to 120°

Illuminator

White LED Quantity: 2
Range: 30m
IR LED Quantity: 2
Range: 30m;
Wavelength: 850nm
Illuminator On/Off Control Auto/Scheduled/Always on/Always off

Audio

Audio Input Yes
Audio Output Yes
Audio Compression Yes
Environment Noise Filtering Yes
Audio Sampling Rate 8KHz
Audio Communication Two-Way Audio
Audio Bit Rate 64 Kbps(G.711 alaw)

Network

ONVIF Yes
Cloud Yes
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI
API Open Network Video Interface (Profile S)
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

WIRELESS

Wireless Statistics N/A
Auto Wireless Channel N/A
Throughput Monitoring N/A
Wireless Transmit Power High
Frequency 2.4 GHz
Wireless Mode AP, AP Client
Standards and Protocols IEEE 802.11b/g/n
Wireless Security PWPA/WPA2-PSK
WiFi Channels UN: 1-13
US: 1-11
Radio Bandwidth 20M: Yes
40M: Yes
Auto: N/A
Wireless Rate 11Mbps(802.11b)
54Mbps(802.11g)
150/300Mbps(802.11n)

ALARM AND EVENT MANAGEMENT

Linkage Method N/A
Output Notification Message Push
Smart Event • Area Intrusion Detection
• Line-Crossing Detection
• People Detection• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Abnormal Sound Detection
• Scene Change Detection
Basic Event • Exception ( Illegal Login)
• Video Tampering Detection
• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing

Interface

Reset Button Yes
Built-in Speaker Yes
Alarm N/A
Audio N/A
Power DC Power Port
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
On-Board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
Built-in Microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera

Environmental

Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storing/Storage Humidity 95% or Less (Non-Condensing)

Protection

Protection IP66

Certification

Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, R-NZ

Power Type

Power Supply 12V DC/1A, 5.5mm Coaxial Power Plug

Physical Specification

Material Plastic
Net Weight 0.62 Kg
Gross Weight 1.21 Kg
Antenna Quantity: 2
Gain: 2.0dBi
Type: 2.4GHz Welded Dipole Omni-Directional Antenna
Package Content VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Power Adapter
Mounting Accessories
Product Dimensions (L x W x H) 120 × 172 × 198 mm (excluding antennas)

Warranty Information

Warranty Details 1 Year

Description

TP-Link VIGI C540-W 4MP Full-Color PTZ Wi-Fi IP Camera – Smart Wireless Surveillance with Full Coverage and Brilliant Night Vision

Experience a new position of wireless surveillance with the TP-Link VIGI C540-W 4MP Full-Color PTZ Wi-Fi IP Camera, finagled to deliver professional-grade security, vibrant full-color videotape, and intelligent stir tracking each without the complexity of wired installation. Whether you are securing your home, office, retail store, or out-of-door installation, the VIGI C540-W offers flexible wireless monitoring with superior performance and 24/7 visibility.

Ultra-Clear 4MP High-Resolution Imaging

The VIGI C540-W features a 4MP image detector with a resolution of 2560 × 1440, furnishing sharp, detailed illustrations to help you see every important element in your monitoring area. Whether it’s a person’s face, a license plate, or subtle movements, this high-description clarity ensures accurate identification and effective surveillance around the timepiece.

PTZ Control for Panoramic and Precision Views

Unlike fixed cameras, the PTZ(Pan-Tilt-Zoom) functionality of the VIGI C540-W allows druggies to ever rotate the camera 360 ° horizontally and 90 ° vertically, as well as drone in optically to concentrate on distant subjects. This dynamic content ensures complete visibility over wide areas similar as parking lots, storages, erecting entrances, and yards without eyeless spots. Pre-set command paths and drone points can be configured for automated scanning of critical zones.

Full-Color Night Vision – pictorial Detail Indeed in Darkness

The camera is equipped with Full-Color Night Vision, using a high-perceptivity detector and erected-in limelights to deliver clear, various videotape indeed in low-light or complete darkness. Unlike traditional infrared night vision, which produces black-and-white footage, the VIGI C540-W lets you prisoner vibrant night-time videotape — ideal for relating people, vehicles, and incidents with better delicacy and detail.

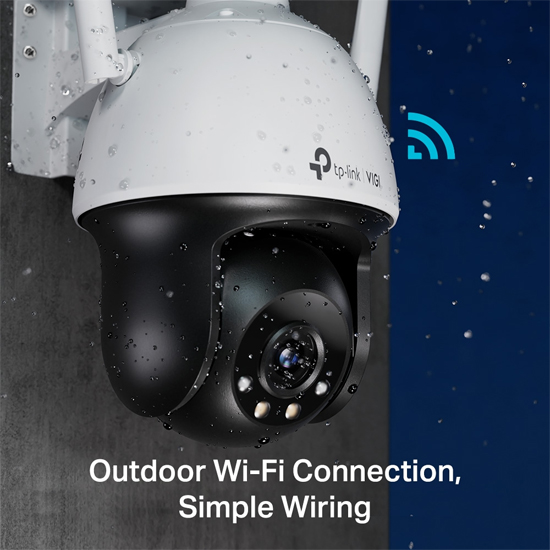

Wireless Connectivity with Dual-Band Wi-Fi

Say farewell to complicated cabling. The VIGI C540-W supports binary-band Wi-Fi(2.4 GHz and 5 GHz), icing strong, stable, and hindrance-free wireless connections. This makes it easy to install the camera anywhere within your wireless network range, offering maximum inflexibility for deployment in areas where running Ethernet lines would be delicate or expensive.

AI-Powered Smart Detection and Instant Alerts

The camera’s erected-in AI enables smart stir discovery with advanced analytics, including mortal and vehicle recognition, intrusion discovery, line-crossing, and region monitoring. This intelligent shadowing minimizes false admonitions from inapplicable movements and sends real-time cautions to your smartphone via the VIGI app, so you are always informed when exertion is detected.

Rugged Design with IP66 Waterproof Standing

Designed for both inner and out-of-door use, the TP-Link VIGI C540-W is erected with an IP66-rated waterproof quadrangle, making it largely resistant to dust, rain, and extreme temperatures. Its durable design ensures continued performance in a wide range of surroundings, from sunny quadrangles to storm-exposed rooftops.

Flexible Storage Options and Integration

The VIGI C540-W supports multiple storehouse options to meet your specific security requirements. You can record footage directly to a microSD card(up to 256 GB), to a VIGI NVR, or to FTP storehouse. The camera also supports ONVIF and RTSP, allowing flawless integration with third-party security systems and software platforms.

Easy Setup and Remote Monitoring

Setting up the VIGI C540-W is simple with its intuitive interface and wireless capabilities. The TP-Link VIGI app enables remote access, live view, playback, and configuration from anywhere using your smartphone or PC. You can cover multiple cameras, acclimate PTZ controls, and admit smart cautions each from a single app.

TP-Link VIGI C540-W 4MP Full-Color PTZ Wi-Fi IP Camera combines high-performance surveillance with wireless freedom, smart AI discovery, full-color visibility, and out-of-door continuity. It's the ideal result for druggies looking to secure their property with flexible, intelligent, and easy-to-manage wireless videotape monitoring.
