Price: 8,700.00৳
Regular Price: 9,900.00৳
Save: 1,200.00৳
Gigabyte GA-H81M-DS2 4th Gen Micro ATX Motherboard
| Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package L3 cache varies with CPU |
| Intel® H81 Express Chipset |
| 2 x 64 Mbit flash |
| AMI EFI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Micro ATX Form Factor; 22.6cm x 17cm |
| 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots (The PCI Express slots conform to PCI Express 2.0 standard.) |
| 2 x 1.5V DIMM |
| 1 x D-Sub |
| Chipset: Up to 2 USB 3.0/2.0 ports on the back panel Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Realtek® GbE LAN chip (10/100/1000 Mbit) |
| 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper |
| Dual channel DDR3 memory architecture |
| Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules |
| 16 GB |
| 1 GB |
| 1 x D-Sub port, supporting a maximum resolution of 1920x1200 |
| Supported Storage Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices 2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices |
| Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| N/A |
| 03 Years Warranty |

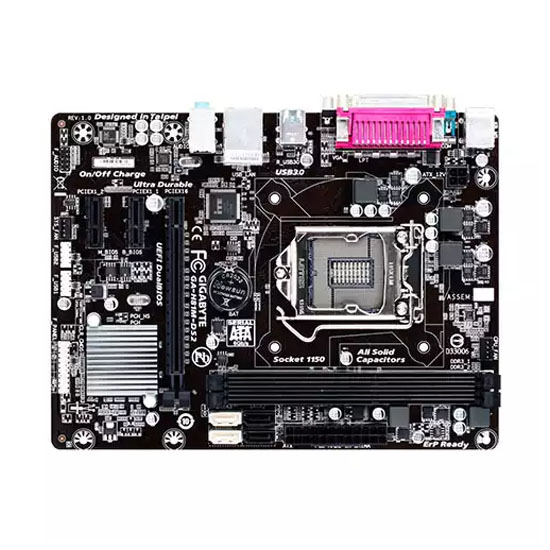

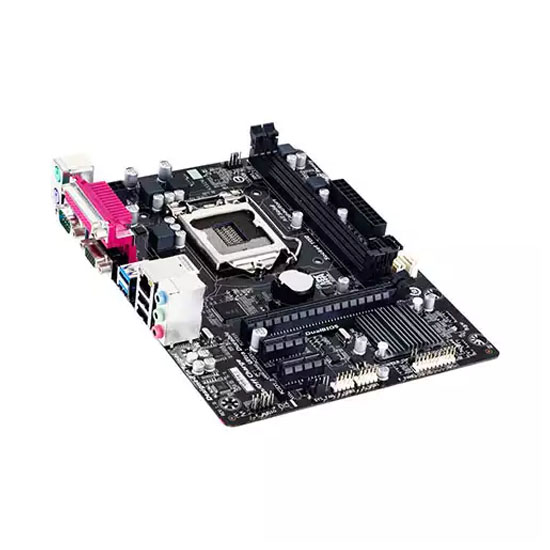

Gigabyte GA-H81M-DS2 4th Gen Micro ATX Motherboard
The Gigabyte GA-H81M-DS2 is a reliable and budget-friendly Micro-ATX motherboard designed for 4th generation Intel® Core™, Pentium®, and Celeron® processors based on the LGA1150 socket. Built around the Intel® H81 chipset, this motherboard delivers solid performance for everyday computing, office setups, and basic multimedia systems, making it an excellent choice for entry-level builds and system upgrades.
Supporting up to 16GB of DDR3 memory across two DIMM slots with speeds of up to 1600 MHz, the GA-H81M-DS2 ensures smooth multitasking and responsive system performance. It features one PCIe 3.0 x16 slot for graphics expansion and one PCIe 2.0 x1 slot for additional peripherals such as network cards or sound cards, offering essential upgrade flexibility.
Storage options include two SATA 6Gb/s ports, enabling support for fast SSDs or high-capacity hard drives. The board also integrates Realtek® GbE LAN for stable internet connectivity and high-definition audio with 8-channel sound output, delivering clear audio for movies, music, and communication.
With a focus on stability and durability, the GA-H81M-DS2 uses high-quality Japanese solid capacitors that enhance power efficiency and extend the motherboard's lifespan. It supports Gigabyte’s Easy Energy Saver technology, helping reduce power consumption and maintain an eco-friendly computing environment.
The rear I/O panel includes VGA and DVI-D video outputs for multi-monitor support, multiple USB 2.0 and USB 3.0 ports for fast data transfer, and standard audio jacks. Although it lacks support for advanced features like overclocking or multi-GPU setups, it provides dependable functionality for basic desktop needs.
Ideal for home users, small offices, or budget-conscious builders, the Gigabyte GA-H81M-DS2 combines essential features, proven reliability, and compact Micro-ATX design to deliver a cost-effective foundation for a practical and efficient computing system.
