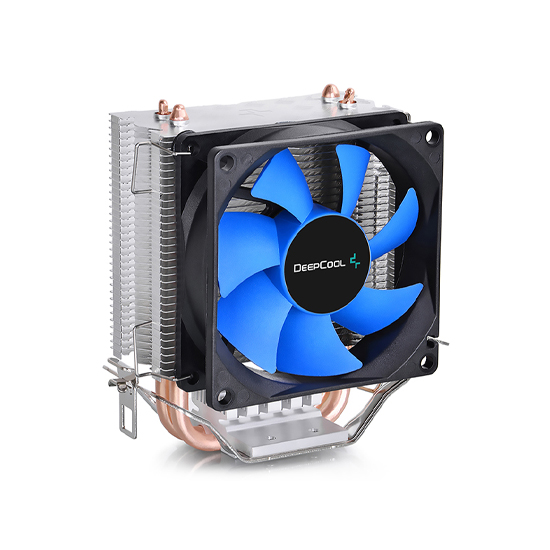

DeepCool ICE EDGE MINI FS V2.0 Air CPU Cooler

DeepCool ICE EDGE MINI FS V2.0 Air CPU Cooler

Model: ICE EDGE MINI FS V2.0

Reviews: No reviews yet

Price: 1,000.00৳

Regular Price: 1,470.00৳

Save: 470.00৳

Key Features:

  • Brand: DeepCool
  • Cooler Type: Air CPU Cooler
  • Series: ICE EDGE
  • Supported CPU Socket Brand: Intel & AMD
  • Fan Speed: 2200 RPM
  • Bearing Type: Hydro Bearing
  • Heat Sink Material: Aluminum
  • Body Color: Silver
  • Warranty Details: 1 Year
Buy Now

Specifications

General Information

Brand DeepCool
Model ICE EDGE MINI FS V2.0
Cooler Type Air CPU Cooler
Series ICE EDGE
Part No DP-MCH2-IEMV2

Technical Info

Supported CPU Socket Brand Intel & AMD
Supported Socket Intel - LGA1700/ LGA1200/ LGA1155/ LGA1150/ LGA1151, AMD - AM5/ AM4

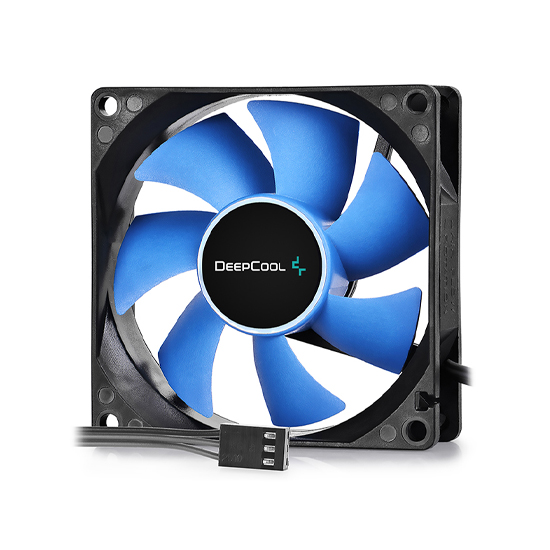

Fan / Cooling System

Number Of Fans 1
Fan Power Connector 3-pin
Fan Size (Height) 80mm
Fan Rated Current 0.12 A
Fan Rated Voltage 12VDC
Fan Speed 2200 RPM
Fan Noise Level 24.7 dB(A)
Fan Air Flow 25.13 CFM
Fan Air Pressure 2.23 mmAq
Bearing Type Hydro Bearing
Fan Dimensions 80 x 80 x 25mm

Heat Sink & Radiator

Radiator Size 80mm
Heat Sink Material Aluminum
Heat Pipe Dimensions Ø6 mm x 2 pcs
Dimension (Heat Sink/Radiator) 85 x 57.2 x 112mm

Power Type

Approx. Power Consumption 5W

Physical Specification

Body Color Silver
Weight (Kg) 258gm
Body Dimensions 119 x 75 x 112mm

Additional Info / Features

Others Fan speed: 2200 RPM+-10%; heatpipe: 6 mm x 2 pieces.

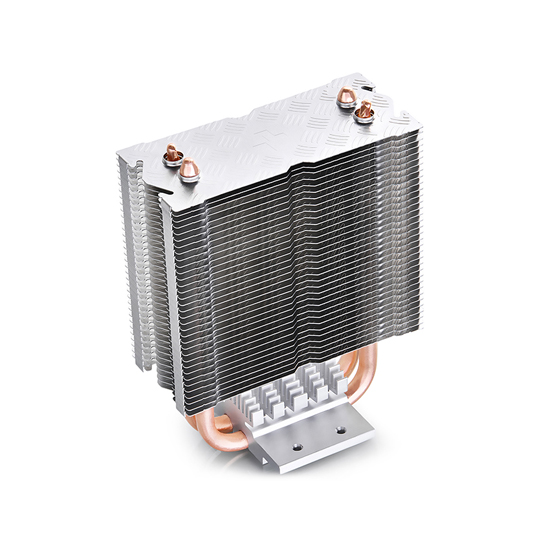

Specialty For effective heat dissipation, specialized aluminum heatsink construction is used. The purpose of the TPE fan housing is to lessen fan noise and absorb operating vibration.

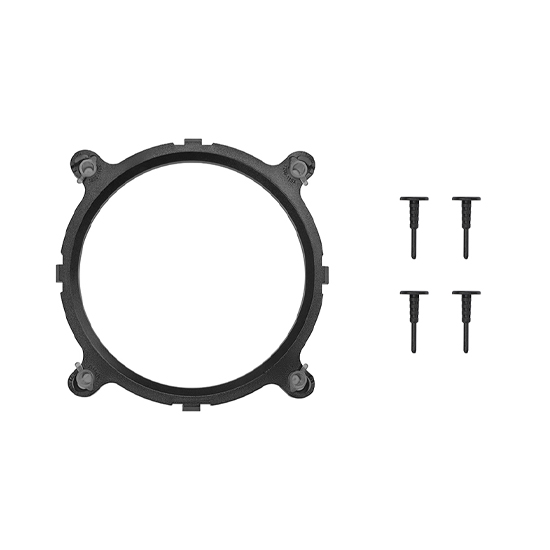

Feature AMD AM5/AM4 Compliant. Several clips are included to support AMD AM5/AM4 and Intel LGA1700/1200/1151/1150/1155. To remove heat and reduce the possibility of overheating, two sintered metal powder heat pipes make direct contact with the CPU surface.

Warranty Information

Warranty Details 1 Year

Description

DeepCool ICE EDGE MINI FS V 2.0 Air CPU Cooler – Compact and important Cooling for Small Builds

The DeepCool ICE EDGE MINI FS V 2.0 is a compact and effective air CPU cooler finagled to deliver excellent cooling performance in space-constrained PC builds. Designed for druggies who need further than a stock cooler without immolating space, this cooler offers solid thermal performance, quiet operation, and broad platform comity, making it ideal for budget gaming systems, compact workstations, and mini-ITX PCs.

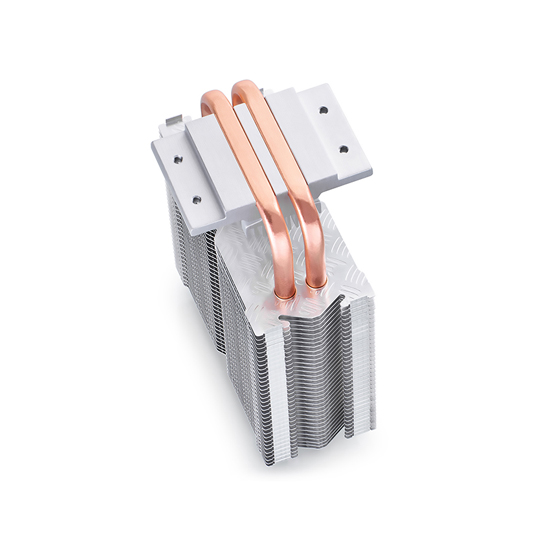

Advanced Heat Dissipation with Dual Heat Pipes

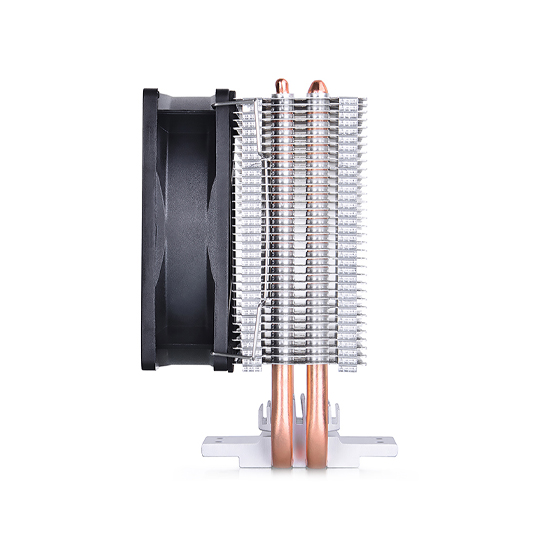

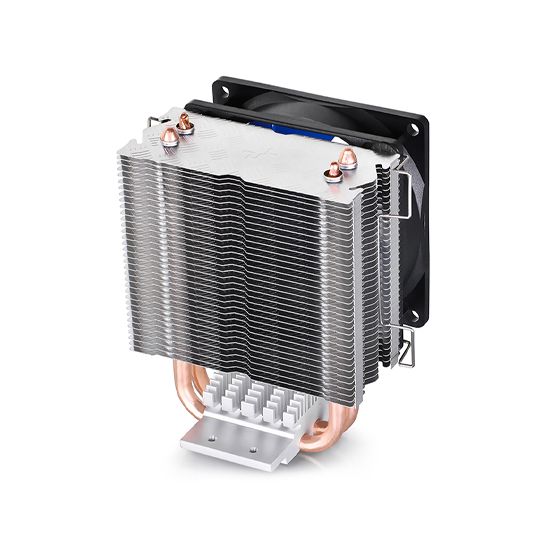

At the core of the ICE EDGE MINI FS V 2.0 is a brace of high-effectiveness bobby heat pipes exercising Direct Touch Technology( DTT). These heat pipes make direct contact with the CPU face, icing rapid-fire heat transfer to the thick aluminum fin array. This design enhances thermal conductivity and allows for quicker cooling response under cargo, helping to maintain stable CPU performance during everyday tasks and moderate gaming sessions.

The compact palace structure ensures that heat is effectively dissipated vertically, maximizing tailwind and keeping temperatures low within a small form factor.

Quiet 92 mm PWM Addict for Balanced Tailwind

Equipped with a 92 mm PWM-controlled addict, the ICE EDGE MINI FS V 2.0 delivers optimized tailwind grounded on system temperature. The addict automatically adjusts its speed to deliver effective cooling when  demanded and quiet operation during idle or light loads. This makes it ideal for  druggies who prioritize a quiet computing experience.

With anti-vibration rubber pads, the addict operates with reduced noise and extended continuity, maintaining a peaceful workspace or gaming terrain.

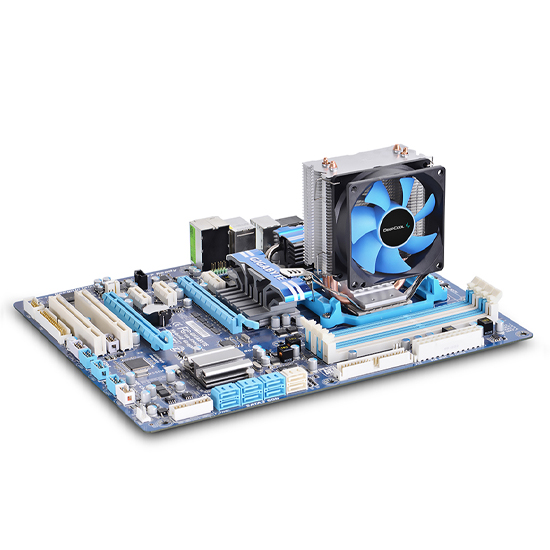

Compact Design Perfect for Small Form Factor PCs

With a low-profile, slim palace design, this cooler is perfect for mini-ITX, micro-ATX, and small form factor( SFF) cases where internal space is limited. Its small footmark ensures wide comity with colorful PC cases and avoids hindrance with RAM or other factors.

Wide comity with Intel and AMD Sockets

The DeepCool ICE EDGE MINI FS V 2.0 supports a broad range of CPU platforms, including Intel LGA1700/ 1200/ 1151/ 1150/1155 and AMD AM5/ AM4/ FM2/ FM2/ FM1/ AM3/ AM3/ AM2/ AM2. It includes a comprehensive underpinning tackle and is easy to install, making it an excellent choice for both new shapes and upgrades.

Crucial Features

 Binary bobby heat pipes with Direct Touch Technology

 92mm PWM addict for quiet, adaptive cooling

 Compact palace design ideal for SFF builds

 Wide comity with Intel and AMD CPUs

 Anti-vibration pads for reduced noise

 Easy installation with included mounting tackle

Upgrade your cooling with the DeepCool ICE EDGE MINI FS V 2.0 - a compact, important, and quiet air CPU cooler that delivers dependable thermal performance for small and effective PC builds.
