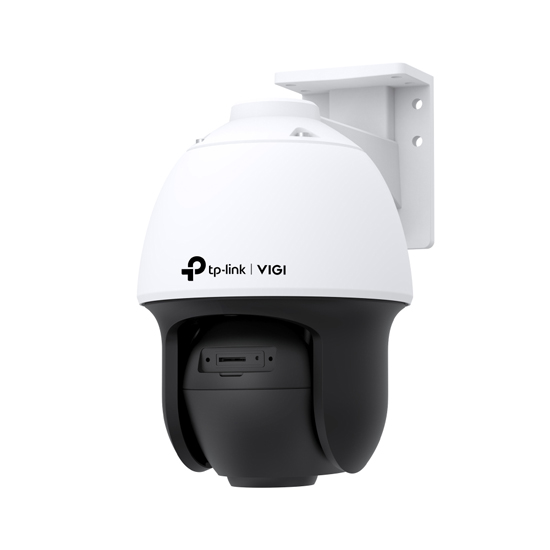

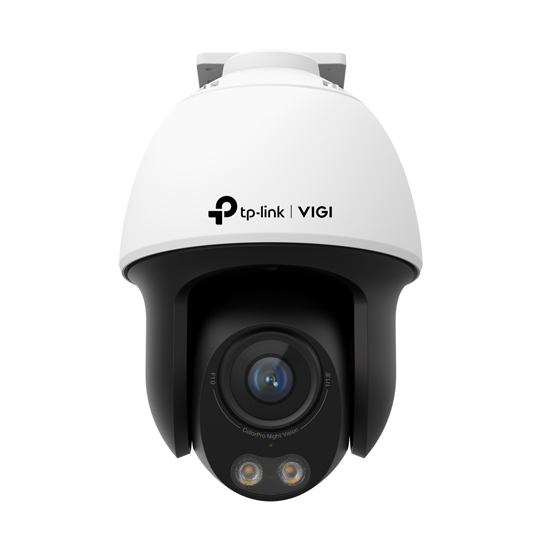

TP-Link VIGI C540S 4MP ColorPro Night Vision PTZ Camera

TP-Link VIGI C540S 4MP ColorPro Night Vision PTZ Camera

Model: VIGI C540S

Reviews: No reviews yet

Price: 9,700.00৳

Regular Price: 11,500.00৳

Save: 1,800.00৳

Key Features:

  • Brand: TP-Link
  • Type: Network Camera
  • Audio Sampling Rate: 8KHz
  • API: ONVIF
  • Operating Temperature: -30–60 °C
  • Material: Plastic
  • Protection: IP66
  • Warranty Details: 1 Year
Buy Now

Specifications

General Information

Brand TP-Link
Model VIGI C540S
Type Network Camera

Camera

Image Sensor 1/1.79” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.0005 Lux; 0 Lux with White Light
Day/Night Mechanism N/A


Day/Night Switch Unified/Scheduled/Auto
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC
Wide Dynamic Range (WDR) 120dB
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up To 4 Masks
ROI 1 Region
OSD Setting Yes

Lens

Lens Type Fixed Focal Lens
Focal Length 4 mm
Aperture F1.0±5%
FOV 4mm:
Horizontal FOV: 104°, Vertical FOV: 55°, Diagonal FOV: 127°
Lens Mount M16*P 0.5
DORI Distance 4 mm:
Detect: 63 m (207 ft)
Observe: 26 m (86 ft)
Recognize: 13m (41 ft)
Identify: 6 m (21 ft)

PTZ

Pan/tilt Range Pan: 0° to 348°, Tilt: 0° to 105°
Pan/tilt Speed Pan Speed:
Configurable from 8° to 44°/s; Preset Speed: 44°/s
Tilt Speed:
Configurable from 8° to 44°/s, Preset Speed: 44°/s
Manual Control Speed Configurable from 8° to 35°/s
Presets 300
Patrol Scan 8 Patrols, up to 8 Presets for Each Patrol
Power-off Memory Yes;
Auto restore to previous PTZ and lens status after power failure
Park Action Yes;
Preset; Patrol Scan
3D Positioning Yes

Angle Adjustment (Manual)

Range Pan: 0° to 348°
Tilt: 0° to 105°

Illuminator

IR LED N/A
White LED Quantity: 2
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off

Video

Max. Resolution 2688 x 1520
Main Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704x576, 640x480, 352x288, 320x240
Third Stream • Frame Rate: 15fps
• Resolution: 1280x720
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps

Audio

Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)

Network

Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT

Smart Event Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Abandoned Object Detection, Object Removal Detection, Loitering Detection, Scene Change Detection, Smart Frame
Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method N/A
Output Notification Message Push

Deep Learning Function

People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Multi-Target-Type Detection Supports Simultaneous Detection and Capture of Human Body and Vehicle

Interface

Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button Yes
Power DC Power Port
On-Board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB§
Built-in Microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker Yes
Audio N/A

Environmental

Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storing/Storage Humidity 95% or Less (Non-Condensing)

Physical Specification

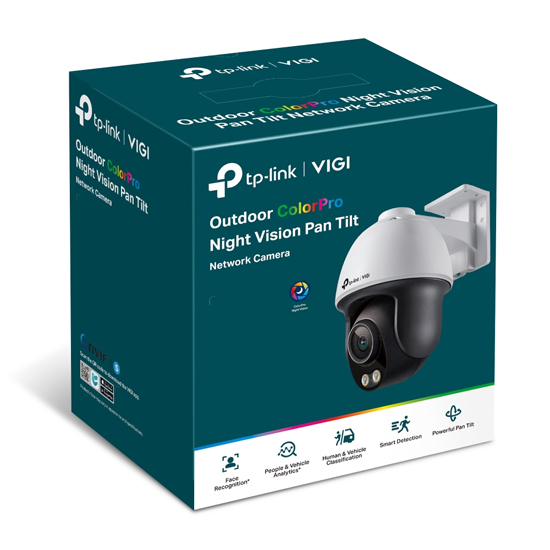

Package Content VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Material Plastic
Product Dimensions (L x W x H) 120 × 172 × 203 mm

Power Type

Power Supply 12V DC ± 5%, Max. 13.13 W, 5.5mm Coaxial Power Plug
PoE: 802.3at, class 4, Max. 16.47 W

Protection

Protection IP66

Certification

Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC

Warranty Information

Warranty Details 1 Year

Description

TP-Link VIGI C540S 4MP ColorPro Night Vision PTZ Camera – Precision Security withPan-Tilt-Zoom and True-Color Night Vision

The TP-Link VIGI C540S is a slice-bite 4MP PTZ guidance camera aimed to deliver high-quality videotape, exceptional shadowing, and full-color night unreality in both inner and out-of-door surroundings. Powered by ColorPro technology, this camera ensures clear and various images indeed in comprehensive blackness, making it an ideal liberty for companies, parking areas, storages, premises , and artificial installations seeking reliable 24/7 security.

4MP Ultra HD Video for Sharp Details

With 4MP conclusion (2560 × 1440), the VIGI C540S captures sharper and more detailed footage assimilated to standard-issue 1080p cameras. Whether you are covering wide open spaces or whirring in on special areas, the high-description clarity allows for accurate identification of people, instruments, and objects.

Meliorated with WDR(Wide Dynamic Range) and 3D DNR(Digital bruit Reduction), the camera delivers clearheaded, bruit-free footage — indeed in backlit or low-light surroundings.

ColorPro Night Vision – Full-Color in the Dark

Unlike traditional infrared cameras that produce black-and-undyed footage at night, the ColorPro Night Vision system uses a high-perceptivity detector, voluminous-orifice lens, and undyed LED light to capture pictorial, full-color videotape in comprehensive blackness. This provides further visual information similar as apparel colors and agent details, significantly perfecting situational mindfulness and reaction delicacy.

Advanced PTZ Control – Monitor Every Angle

Featuring 360 ° bottomless criticizing, 90 ° tilting, and 15 × optic drone, the VIGI C540S offers grand control over guidance content. You can fluently zoom in on distant targets or rotate the camera to exclude eyeless blots.

Exercisepre-set command rows or outline crucial positions to automatically overlook and cover multitudinous necks. These features make it ideal for voluminous-scale operations like colosseums, parking parcels, and erecting peripheries.

AI-Powered Smart Discovery and Alerts

Boost your screen system’s intelligence with AI-grounded discovery features, involving:

1. Mortal and agent Discovery

2. Line-Crossing Discovery

3. Intrusion Discovery

4. Region Entry/Exit cautions

5. Tamper Discovery

These smart features support reduce false admonitions by filtering out inapplicable stir similar as creatures or tree branches. Get immediate announcements on your movable device via the VIGI App or CMS, consequently you can respond snappily to any event.

Erected for Harsh surroundings

Rated IP66 weatherproof, the VIGI C540S is aimed to repel rain, dust, and wind — icing dependable out-of-door interpretation time-loop. Its durable essence casing tries security against physical tampering, making it able for public or high-threat areas.

Ready Installation and Remote Access

With PoE (authority over Ethernet) brace, the VIGI C540S simplifies installation by taking only a single string for both authority and data. This reduces format complication and minimizes wiring charges.

Access and control your camera ever via the TP-Link VIGI App, VIGI Security Management System(CMS), or trap cybersurfer. Secure data encryption and part-grounded access give peace of mind for druggies managing voluminous guidance systems.

Crucial Features

 4MP high-conclusion videotape (2560 × 1440)

 ColorPro Night Vision – full-color night covering

 360° visage, 90° cock, and 15 × optic drone

 AI discovery human, agent, intrusion, tampering

 IP66-rated waterproof casing

 PoE brace for simplified format

 Compatible with TP-Link VIGI NVRs and ONVIF platforms

 Remote access via app, CMS, and cybersurfer

The TP-Link VIGI C540S 4MP PTZ Camera is the ideal result for companies demanding high-interpretation, color-rich night unreality and precise camera control. With exceptional features and robust construction, it empowers you to cover, descry, and respond with confidence — day or night.
