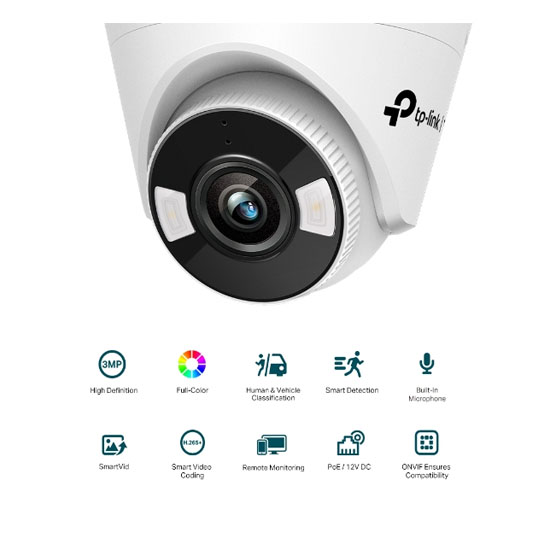

TP-Link VIGI C430 2.8MM 3MP Full Color Turret Network Camera
Thumbnail 1 Thumbnail 2 Thumbnail 3

TP-Link VIGI C430 2.8MM 3MP Full Color Turret Network Camera

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: TP-Link
৳2870 ৳3690 Save 22%

Key Features

  • Image Sensor: 1/2.8” Progressive Scan CMOS
  • Shutter Speed: 1/3 to 1/10000 s
  • Aperture: 2.8 mm: F1.6
  • IR Working Distance: 30m
  • Max. Resolution: 3MP (2304 × 1296)
  • Privacy Masking: Up to 4 Masks
Camera
Image Sensor 1/2.8” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Camera Lens 2.8 mm
Minimum Illumination Color: 0.005 Lux; 0 Lux with IR/White Light
WDR DWDR
Digital Noise Reduction 3D DNR
IR Working Distance 30m
Viewing Angle 2.8mm: 107.5°/57.2°/128.7°(H/V/D)
Lens Type Fixed Focal Lens
Angle Adjustment Pan: 0° to 360°
Tilt: 0° to 85°
Rotate: 0° to 360°
IR LEDs Quantity: 2
Range: 30m
Wavelength: 850nm
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
Max. Resolution 3MP (2304 × 1296)
Linkage Method N/A
Frame Rate Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Lens
Aperture 2.8 mm: F1.6
Lens Mount M12
Focal Length 2.8 mm
Day/Night Switch Unified/ Scheduled/ Auto
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
SNR ≥ 52 dB
Image Parameters Switch Yes
Video
Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 704x576, 640x480, 352x288, 320x240
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Privacy Masking Up to 4 Masks
Region of Interest (ROI) 1 Region
Audio
Audio Communication N/A
Audio Input Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
Audio and Video
Audio Output N/A
Network
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR
Web Browser Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Management Features
Cloud Access Cloud
Alarm
Alarm Linkage Message Push
Physical Specification

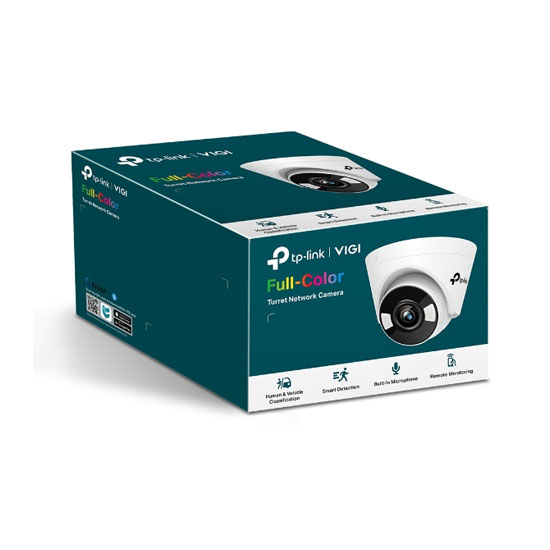

Package Content VIGI Network Camera
Quick Start Guide
Mounting Accessories
Dimension 123 × 123 × 83 mm
Material Plastic
Gross Weight 0.36 Kg
Dimensions
Net Weight 0.21 Kg
Power Type
Power Consumption 12V DC: Max 4.2W PoE: Class 0
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Warranty Information
Warranty 1 Year Warranty

TP-Link VIGI C430 2.8MM 3MP Full Color Turret Network Camera

The TP-Link VIGI C430 2.8mm 3MP Full Color Turret Network Camera is a high-performance indoor/outdoor security solution designed to deliver brilliant color imaging and reliable surveillance for modern homes and businesses. With a 3MP (2304 x 1296) resolution, this camera offers sharper detail than standard 1080p HD, ensuring crisp video that enhances identification accuracy and situational awareness.
Equipped with a fixed 2.8mm lens, the C430 provides a wide field of view—ideal for monitoring entryways, hallways, retail counters, or outdoor perimeters. Its Full Color technology ensures vivid, true-color video footage at all times using built-in spotlight illumination, eliminating the limitations of black-and-white night vision and delivering clear, colorful images even in low-light environments.
This turret camera supports H.265 compression , optimizing bandwidth usage and storage efficiency without compromising on image quality. It also features intelligent detection functions such as motion detection and intrusion alerts, allowing users to receive real-time notifications and respond swiftly to potential security events.
Engineered for versatility, the VIGI C430 is housed in a robust IP67-rated enclosure, making it suitable for both indoor and outdoor installations. The camera integrates seamlessly into the VIGI Surveillance System , enabling easy setup and centralized management via the VIGI app or compatible NVR. Power over Ethernet (PoE) support simplifies installation by delivering both data and power through a single cable.
With its sleek turret design, weather-resistant build, and advanced imaging capabilities, the TP-Link VIGI C430 is an excellent choice for those seeking a dependable, high-quality security camera. Whether used for residential monitoring or small business protection, this camera delivers full-color visibility, smart detection, and professional-grade performance in a compact, durable form.
