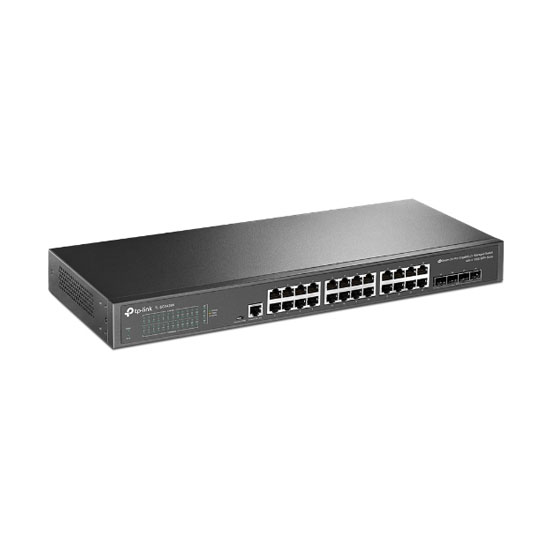

TP-Link TL-SG3428X JetStream 24 Port Gigabit L2+ Managed Switch With 4 10GE SFP+ Slots
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4

TP-Link TL-SG3428X JetStream 24 Port Gigabit L2+ Managed Switch With 4 10GE SFP+ Slots

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: TP-Link
৳21300 ৳22690 Save 6%

Key Features

  • Product Type: Network Switch
  • Number Of Total Port: 18 Port
  • Switching Capacity: 128 Gbps
  • Packet Forwarding Rate: 95.23 Mpps
  • Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller
  • Warranty: 2 Years Warranty
Basic Information
Product Type Network Switch
Mounting Type Rack Mountable
Ports & Slots
Number Of Total Port 18 Port

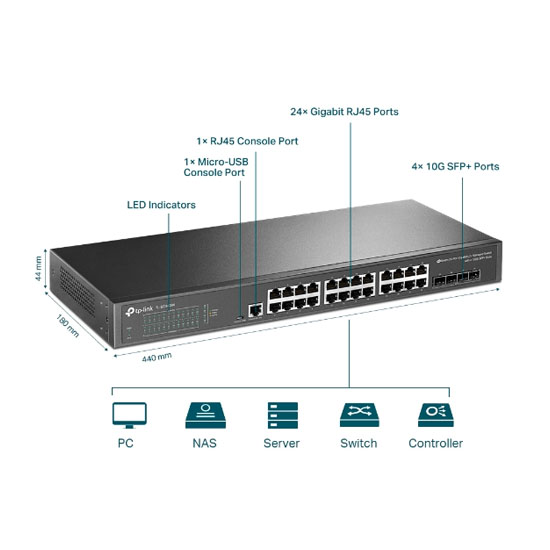

Interface(s) 24× 10/100/1000 Mbps RJ45 Ports
4× 10G SFP+ Slots
1× RJ45 Console Port
1× Micro-USB Console Port
Networking & Connectivity
Switching Capacity 128 Gbps
MAC Address Table 16 K
Technical Info
Packet Forwarding Rate 95.23 Mpps
Packet Buffer Memory 12 Mbit
Jumbo Frame 9 KB
Features
L2 and L2+ Features Link Aggregation
static link aggregation
802.3ad LACP
Up to 8 aggregation groups, containing 8 ports per group
Spanning Tree Protocol
802.1d STP
802.1w RSTP
802.1s MSTP
STP Security: TC Protect, BPDU Filter, Root Protect
Loopback Detection
Port based
VLAN based
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Mirroring
Port Mirroring
CPU Mirroring
One-to-One
Many-to-One
Tx/Rx/Both
L3 Features 16 IPv4/IPv6 Interfaces
Static Routing
48 static routes
Static ARP
128 Static Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP Interface Relay
DHCP VLAN Relay
DHCP L2 Relay
Management Features
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller
Management Features Web-based GUI
Command Line Interface (CLI) through the console port, telnet
SNMP v1/v2c/v3
Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log
Physical Specification
Package Contents TL-SG3428X Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet
Dimension 440 × 180 × 44 mm
Requirement
System Requierment Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Warranty Information
Warranty 2 Years Warranty
Power Type
Power Supply 100-240 V AC~50/60 Hz
General Information
APP Control Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller

TP-Link TL-SG3428X JetStream 24 Port Gigabit L2+ Managed Switch With 4 10GE SFP+ Slots

The TP-Link TL-SG3428X JetStream 24-Port Gigabit L2+ Managed Switch with  10GE SFP+ offers a high-performance networking solution tailored for small to medium-sized businesses that demand superior speed, and reliability. Featuring 24 10/100/1000Mbps Ethernet ports and four 10G SFP+ uplink slots , this switch delivers powerful connectivity for high-density environments such as offices, campuses, and surveillance systems.
Equipped with robust Layer 2+ switching features , the TL-SG3428X supports static VLANs , QoS (Quality of Service) for traffic prioritization, LACP link aggregation , and IGMP Snooping , ensuring efficient bandwidth management and smooth delivery of voice, video, and data traffic. It also offers enhanced security through Access Control Lists (ACLs) , port security , 802.1X authentication , and DoS prevention , helping protect your network from unauthorized access and potential threats.
The switch includes a durable metal chassis and supports fanless or quiet fan operation , making it suitable for noise-sensitive environments. Its energy-efficient design minimizes power consumption while ensuring consistent performance under demanding workloads.
With support for web-based management , CLI , SNMP , and RADIUS/TACACS+ authentication , the TL-SG3428X provides flexible control and monitoring options. Whether expanding your business network, setting up a secure VoIP system, or deploying multiple IP cameras, this switch offers the performance, intelligence, and scalability needed for modern enterprise applications.
Combining high-speed uplinks, smart management tools, and enterprise-grade security, the TP-Link TL-SG3428X JetStream is an ideal backbone for growing networks—offering powerful performance in a compact, cost-effective package backed by a 2-year warranty
