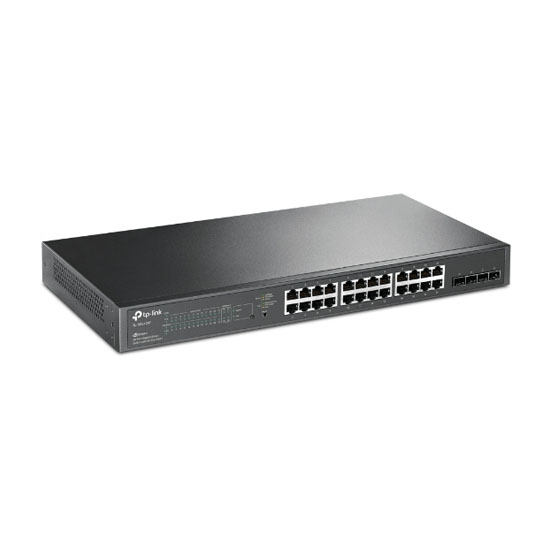

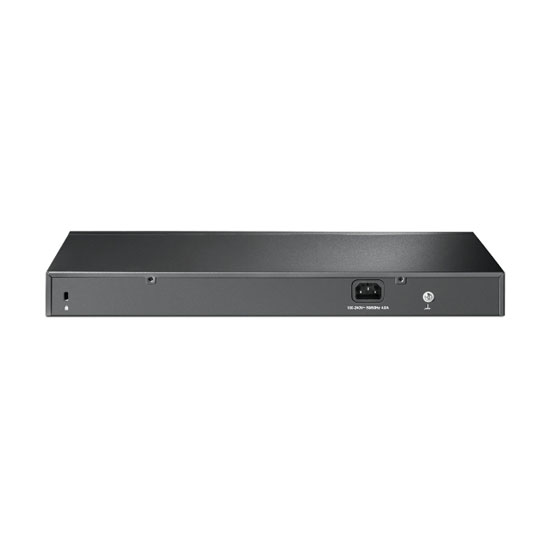

TP-Link TL-SG2428P JetStream 28 Port Gigabit Smart Switch With 24 Port PoE+
Thumbnail 1 Thumbnail 2 Thumbnail 3

TP-Link TL-SG2428P JetStream 28 Port Gigabit Smart Switch With 24 Port PoE+

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: TP-Link
৳25500 ৳29900 Save 15%

Key Features

  • Product Type: Network Switch
  • Number Of Total Port: 28 Port
  • Switching Capacity: 56 Gbps
  • Packet Forwarding Rate: 41.7 Mpps
  • Cloud Access: Yes, through
    • Omada Cloud-Based Controller
    • OC300
    • OC200
    • Omada Software Controller
  • Warranty: 2 Years Warranty
Basic Information
Product Type Network Switch
Mounting Type Rack Mountable
Ports & Slots
Number Of Total Port 28 Port
Interface(s) • 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 4× Gigabit SFP Slots
PoE Ports (RJ45) • Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports
• PoE Power Budget: 250 W*
Networking & Connectivity
Switching Capacity 56 Gbps
MAC Address Table • V1, V2, V4 and above: 8K
• V3: 16K
Technical Info
Packet Forwarding Rate 41.7 Mpps
Jumbo Frame • V1, V2, V4 and above: 8K • V3: 16K
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Packet Buffer Memory 4.1 Mbit
Features
L2 and L2+ Features • 32 IP Interfaces - Support IPv4/IPv6 Interface • Static Routing - 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
per group
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect, Root Protect
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
Management Features
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller
Cloud Access Yes, through
• Omada Cloud-Based Controller
• OC300
• OC200
• Omada Software Controller
Management Features • Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log
Physical Specification
Package Contents TL-SG2428P
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
Dimension 440 × 220 × 44 mm
Max Heat Dissipation • V1: 1052.94 BTU/h (with 250 W PD connected); 109.53 BTU/h (with no PD connected)
• V2: 1005.66 BTU/hr (220V/50 Hz) (with 250 W PD connected)
• V3: 996.01 BTU/hr (110V/60Hz) (with 250 W PD connected)
• V4: 1047.30 BTU/hr (110V/60 Hz) (with 250 W PD connected)
Requirement
System Requierment Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Warranty Information
Warranty 2 Years Warranty
Power Type
Power Supply 100-240V AC, 50/60Hz
Max Power Consumption • V1: 308.6 W (110V/60Hz with 250 W PD connected); 32.1 W (110 V/ 60 Hz with no PD connected)
• V2: 294.7 W (220 V/50 Hz) (with 250 W PD connected)
• V3: 291.9 W (110V/60Hz) (with 250 W PD connected)
• V4: 306.9 W (110V/60Hz) (with 250 W PD connected)
Fan / Cooling System
Number Of Fans 2

TP-Link TL-SG2428P JetStream 28 Port Gigabit Smart Switch With 24 Port PoE+

The TP-Link TL-SG2428P JetStream is a high-performance, 28-port Gigabit Smart Switch designed to deliver advanced speed, reliability, and efficiency for growing businesses. Featuring 24 IEEE 802.3at/af PoE+ ports and 4 Gigabit SFP ports , it offers flexible connectivity options while powering devices such as IP cameras, VoIP phones, and wireless access points—eliminating the need for extra power outlets.
With a total switching capacity of up to 56 Gbps and a forwarding rate of 41.67 Mpps , the TL-SG2428P ensures fast and smooth data transfer across your network. It supports essential Layer 2 features including VLANs, QoS, Link Aggregation (LACP), IGMP Snooping, and STP, enabling efficient traffic management, enhanced security, and seamless network expansion.
Each PoE+ port delivers up to 30 watts of power , supporting high-demand devices with ease. The switch also includes PoE scheduling and priority reboot functions , allowing users to manage power delivery efficiently and remotely reset connected devices when needed.
Equipped with a user-friendly web interface, the TL-SG2428P simplifies configuration and monitoring. Its intuitive management tools allow for easy setup of VLANs, bandwidth control, and security settings, making it ideal for small to mid-sized businesses seeking powerful yet simple networking solutions.
The compact metal chassis is designed for durability and efficient heat dissipation. Its quiet, fanless design makes it suitable for noise-sensitive environments like offices and schools.
Whether you're deploying a secure surveillance system or expanding your business network, the TP-Link TL-SG2428P JetStream Smart Switch combines performance, scalability, and intelligent PoE management in an affordable, easy-to-use package.
