Price: 9,200.00৳
Regular Price: 9,800.00৳
Save: 600.00৳

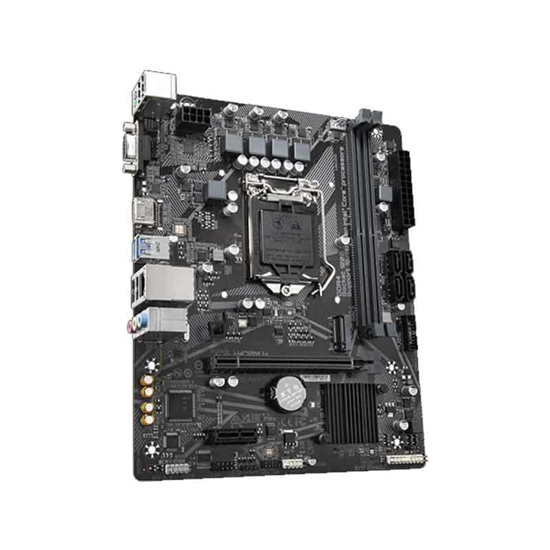

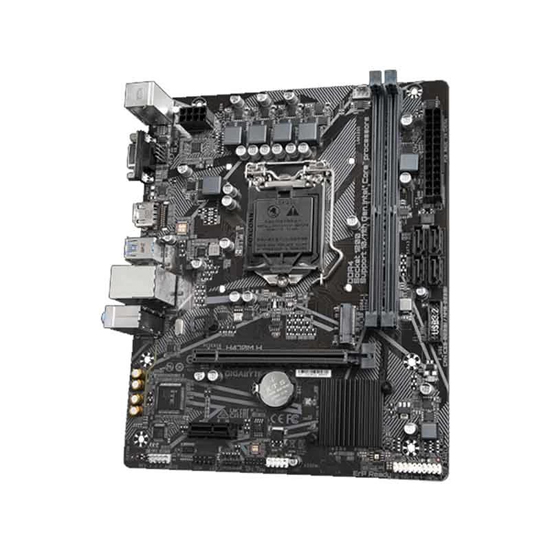

GIGABYTE H470M H 11th and 10th Gen Micro ATX Motherboard
Body Color | Black |
Form Factor | Micro-ATX |
Chipset Brand | Intel |
Chipset | Intel H470 |
Sockets Supported | LGA1200 |
Supported CPU | 11th Gen Intel Core i9 / i7 / i5 processors, 10th Gen Intel Core i9 / i7 / i5 / i3 /Pentium/ Celeron Processors |
Generation | 10th/11th |
Memory Type | DDR4 |
Memory MHz | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz Non-ECC Un-Buffered DIMM |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Slot (Additional Info) | 2 x DDR4 DIMM |
Memory Max. | 64GB |
Memory Max. (Additional Info) | 64 GB (32 GB Single DIMM Capacity) |
Optane Memory Support | Yes |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 1 |
M.2/SSD Expansion Slot Details | 1 x M.2, Type 2280 SATA And PCIe 3.0 x4/x2 SSD |
Graphics | Integrated |
Graphics Chipset | Intel HD Graphics Support |
PCI Express Slot | 1 x PCI Express x16, 1 x PCI Express x1 |
Audio Chipset | Realtek Audio CODEC |
Audio Channel | 7.1 |
LAN Chipset | Realtek GbE |
LAN Speed (Mbps) | 10 / 100 / 1000Mbps |
USB Port | 1 x USB 3.2 Gen 1, 1 x USB 2.0/1.1 |
VGA Port | 1 |
HDMI Port | 1 |
SATA Port | 4 |
TPM Port | 1 |
Cable Management | Front |
Raid Support | 0, 1, 5, 10 |
RGB Support | RGB |
RGB Connector | 1 x RGB LED Strip Header |
Approx Power Consumption | 60W |
BIOS Type | 1 x 128 Mbit Flash |
BIOS Model | AMI UEFI BIOS |
BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Supported Operating System | Windows 10, 11 |
Compatible Products | Comet Lake Core i3 10105, Comet Lake Core i3 10100, Comet Lake Core i5 10400F, Core i5 10400, Comet Lake Core i5 10400, Lake Core i7 10700 Desktop Processors |
Manufacturing Warranty | 03 Years |

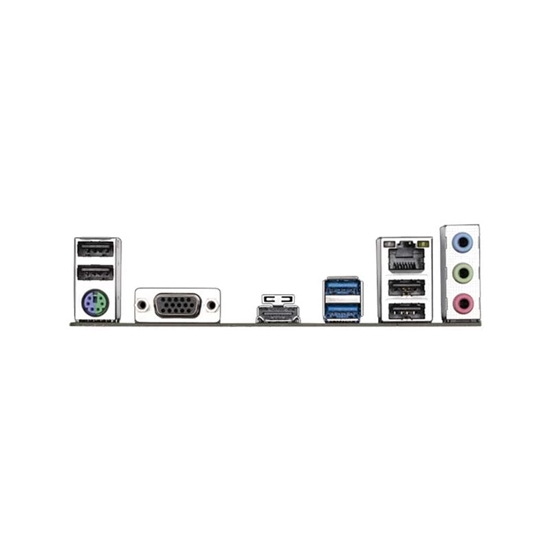

The GIGABYTE H470M H 11th and 10th Gen Micro-ATX Motherboard is a versatile and reliable motherboard designed to support Intel's 11th and 10th Gen Core processors (LGA1200 socket). It features the Intel H470 chipset, ensuring compatibility with a wide range of components and providing stable performance for everyday computing tasks. This motherboard supports dual-channel DDR4 memory with speeds of 3200/3000/2933/2666/2400/2133 MHz and up to 64GB of RAM across two memory slots. For storage, it offers four SATA 6Gb/s ports and one M.2 slot that supports NVMe and NGFF storage devices, providing ample options for both traditional and modern storage solutions. Network connectivity is provided by GbE LAN with bandwidth management, ensuring smooth and stable internet performance. The audio experience is enhanced with 8-channel HD Audio (Realtek ALC897 Audio Codec), delivering high-quality sound for your entertainment needs. The back panel I/O ports feature one VGA port, one HDMI port, two USB 2.0 ports, four USB 3.0 ports, one RJ45 LAN port, and three audio jacks (Mic in, Line Out, and Line In). Expansion capabilities include one PCI Express x16 slot and one PCI Express x1 slot, allowing for additional hardware components. With its micro-ATX form factor (22.6 cm x 18.5 cm), the motherboard is suitable for compact PC builds, and it includes six mounting holes for secure installation. The motherboard is backed by a 3-year brand warranty, offering reliability and peace of mind. Overall, the GIGABYTE H470M H 11th and 10th Gen Micro-ATX Motherboard is an excellent choice for building a powerful and efficient PC.
