DeepCool PX1200G 80 Plus Gold 1200 Watt Black Power Supply

DeepCool PX1200G 80 Plus Gold 1200 Watt Black Power Supply

Model: PX1200G

Reviews: No reviews yet

Price: 22,500.00৳

Regular Price: 24,000.00৳

Save: 1,500.00৳

Key Features:

  • Brand: DeepCool
  • PSU Category: Full Modular
  • PSU Type: ATX 12V V3.0
  • MTBF: 100000 Hours
  • Maximum Power: 1200 Watt
  • Input Frequency Range: 50 - 60Hz
  • Hold Up Time: >=16ms
  • Color: Black
  • Form Factor: ATX
  • Warranty Details: 10 Year
Buy Now

Specifications

General Information

Brand DeepCool
Model PX1200G
PSU Category Full Modular
PSU Type ATX 12V V3.0

Technical Info

MTBF 100000 Hours

Protection

Over Voltage Protection (OVP) Yes
Over Power Protection (OPP) Yes
Over Current Protection (OCP) Yes
Over Temperature Protection (OTP) Yes
Short Circuit Protection (SCP) Yes
Under Voltage Protection (UVP) Yes
Protection OPP/OVP/SCP/OTP/OCP/UVP

Ports & Slots

EPS Connectors 2
PCIe Connectors 3
SATA Power Connectors 8
ATX Main Connectors 1
4-Pin Peripheral Connectors 4

Fan / Cooling System

Zero RPM Fan Mode Yes
Fan Bearing FDB
Fan Size 135mm

Power Type

Min. Power (Approx.) 1080W
Maximum Power 1200 Watt
Peak Output Capacity 1200 Watt
Input Current 15 - 7.5A
Input Frequency Range 50 - 60Hz
Input Voltage 100 - 240 Vac
Input AC 100 - 240 Vac, 15 - 7.5A, 50 - 60Hz

Performance

Hold Up Time >=16ms
Power Good Signal 100-150ms
Efficiency Rating 80 Plus Gold
Efficiency 90% Efficiency

Physical Specification

Color Black
Form Factor ATX
Dimensions 150 x 160 x 86mm

Additional Info / Features

Regulatory / Safety Approval CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/KC;

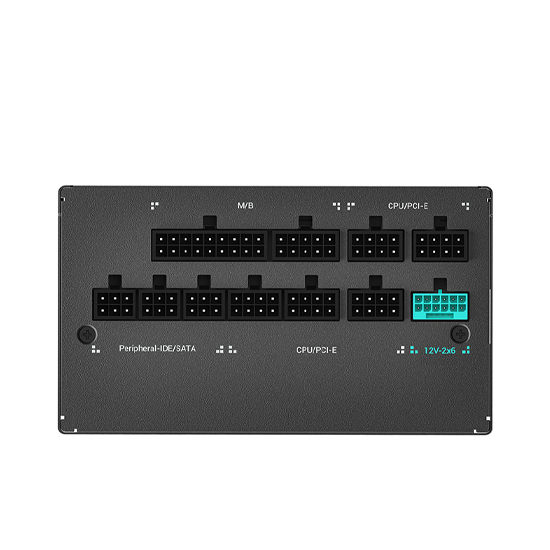

Others Topology: DC to DC + Active PFC + Half Bridge SRC LLC. Capacitors: Electrolytic capacitors made in Japan. Regulation of Erp: ErP 2014. Environmental Protection: RoHS, Triman, and WEEE. Connector 24 for Main Power (20+4) Pin x1: CPU (4+4), X1 Pin x1: PCI-E (6+2), X2, 4Pin Peripheral x4: X1, Pin x1: X3, SATA x4: X2, 12VHPWR (16Pin) x1: X1.
Specialty A recently developed power supply that complies with the most recent ATX 3.0 standard is the DeepCool PX1200G. With three PCI-e connections, two EPS, and a dedicated 12VHPWR, the PX1200G offers reliable power for a variety of components.

Warranty Information

Warranty Details 10 Year

Description

DeepCool PX1200G 1200W 80 Plus Gold Completely Modular Power force – Ultimate Power, Peak Efficiency, and Professional-Grade trust ability

The DeepCool PX1200G 1200W 80 Plus Gold Completely Modular Power Supply is finagled for elite PC suckers, high-end gamers, and professionals who demand unwavering power, exceptional effectiveness, and unborn-ready performance. Designed to support the most power-empty factors including coming-gen plates cards and multi-core processors — the PX1200G delivers gemstone-solid trust ability, ultra-clean string operation, and intelligent cooling in a decoration matte black finish.

Massive 1200W Affair for Extreme Performance Builds

With 1200 watts of nonstop power, the DeepCool PX1200G is erected to fuel hustler PC builds with multiple GPUs, high-core CPUs, and extensive storehouse configurations. Whether you are running a workstation for content creation, a streaming PC, or an advanced gaming carriage with factors like the NVIDIA RTX 4090 or AMD Thread ripper CPUs, the PX1200G handles it all with ease.

This power force is also ideal for unborn upgrades, icing your system stays applicable and important for times to come.

80 Plus Gold instrument for High Energy Efficiency

The PX1200G is 80 Plus Gold certified, delivering up to 90 effectiveness at typical loads, significantly reducing energy loss and heat affair. This position of effectiveness ensures stable system performance, lowers power consumption, and improves thermal operation — eventually extending the lifetime of your PC factors while lowering your electricity costs.

With high effectiveness and optimized power conversion, the PX1200G keeps your high-performance system running cooler and quieter under pressure.

Completely Modular Design for Customizable, Clean Builds

Enjoy maximum inflexibility and tidiness with the completely modular string system of the PX1200G. Use only the lines you need, reduce case clutter, and simplify string routing for a clean, professional-looking figure. each-black, flat-sleeved lines offer a low-profile look and bettered tailwind, while enhancing aesthetics in tempered glass cases or open-frame designs.

Whether you’re an sucker or a first-time builder, modularity makes assembly and upgrades easier than ever.

Whisper-Quiet Operation with Intelligent Cooling

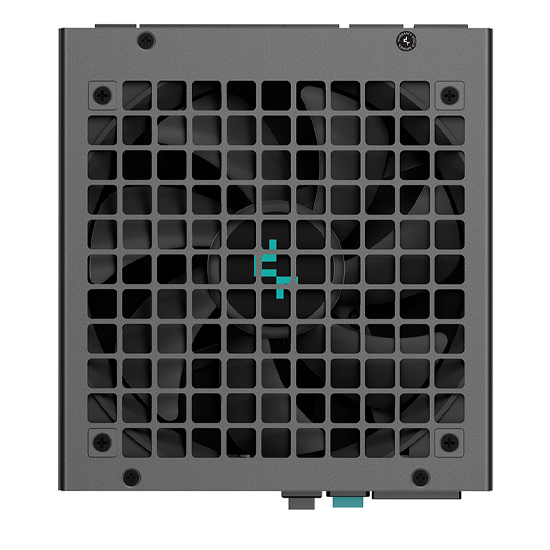

The DeepCool PX1200G features a 135 mm fluid dynamic bearing(FDB) addict with intelligent addict control, icing silent operation during low and moderate loads. The addict only ramps up when necessary, keeping noise situations minimum while effectively cooling the PSU during violent gaming or rendering tasks.

Smart thermal control balances cooling performance with quiet acoustics, giving you a distraction-free terrain for work or play.

Top-league Internal Components for Unmatched continuity

The PX1200G is erected with ultra expensive Japanese capacitors and high-quality internal factors that insure long-term trust ability, excellent voltage regulation, and ultra-low ripple noise. Designed for professional use and 24/7 operation, this PSU meets high artificial norms for harmonious and stable affair.

Advanced circuit protection features are erected-in to guard your entire system from electrical hazards

1. Over Voltage Protection(OVP)

2. Under Voltage Protection(UVP)

3. Over Current Protection(OCP)

4. Over Power Protection(OPP)

5. Short Circuit Protection(SCP)

6. Over Temperature Protection(OTP)

These features insure safe operation and help help implicit element damage during power oscillations.

Compact, Sleek, and Completely ATX 3.0 Compatible

Despite its immense power affair, the PX1200G maintains a compact 160 mm form factor, making it compatible with utmost ATX cases. The minimalist black finish and discreet branding offer a clean aesthetic that fits seamlessly into any ultramodern PC figure.

Also, the PX1200G is completely biddable with ATX 3.0 and PCIe 5.0 norms, offering native support for the rearmost GPUs with a devoted 12VHPWR connector — perfect for high-performance coming-gen plates cards.

10-Time Bond for Long-Term Confidence

The DeepCool PX1200G comes with a 10-time limited bond, showcasing the brand’s commitment to quality and client satisfaction. This long-term content ensures peace of mind for times of reliable performance.

Crucial Features at a regard

 1200W nonstop power for extreme gaming and professional builds

 80 Plus Gold certified for over to 90 energy effectiveness

 Completely modular lines for clean, customizable setup

 Silent 135 mm FDB addict with smart thermal control

 Premium Japanese capacitors for continuity and stability

 Comprehensive electrical protection suite

 Compact 160 mm size for wide case comity

 ATX 3.0 & PCIe 5.0 ready with native 12VHPWR support

 Backed by a 10-time limited bond

DeepCool PX1200G 1200W Power Supply is the ideal PSU for high-end systems demanding maximum power, unmatched trust ability, and unborn-ready features.
