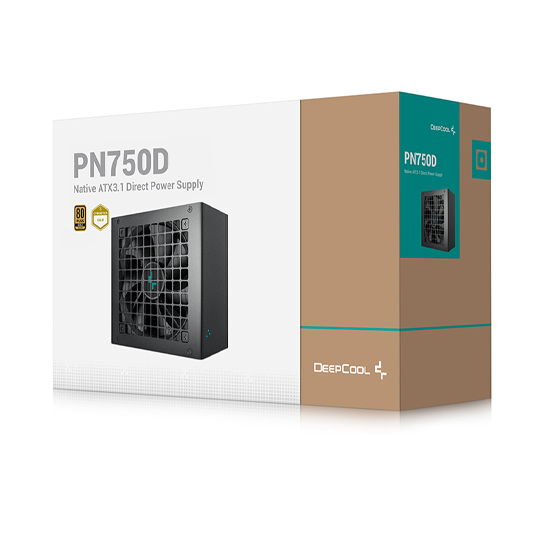

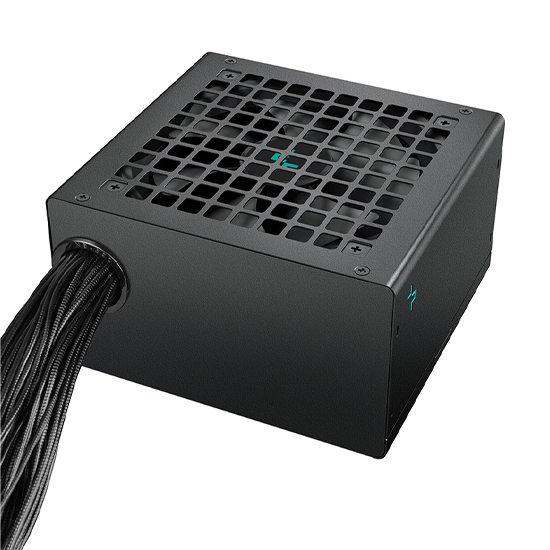

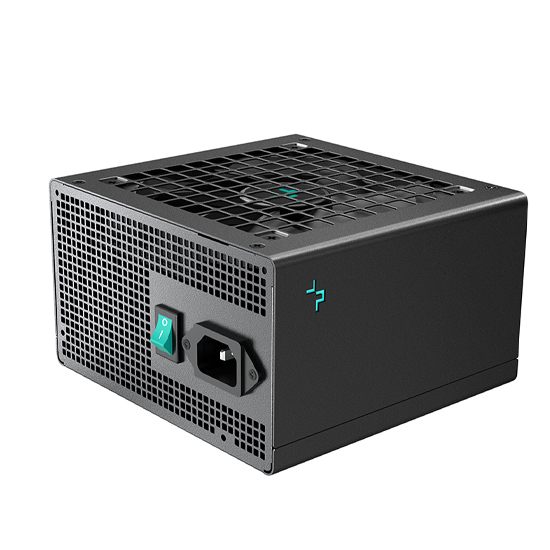

DeepCool PN750D 750W 80 Plus Gold Non Modular Black Power Supply

DeepCool PN750D 750W 80 Plus Gold Non Modular Black Power Supply

Model: PN750D

Reviews: No reviews yet

Price: 9,300.00৳

Regular Price: 10,850.00৳

Save: 1,550.00৳

Key Features:

  • Brand: DeepCool
  • PSU Category: Non Modular
  • PSU Type: ATX12V V3.1
  • MTBF: 100,000 Hours
  • Maximum Power: 750 Watt
  • Color: Black
  • Form Factor: ATX
  • Warranty Details: 10 Year
Buy Now

Specifications

General Information

Brand DeepCool
Model PN750D
PSU Category Non Modular
PSU Type ATX12V V3.1

Technical Info

MTBF 100,000 Hours

Protection

Over Voltage Protection (OVP) Yes
Over Power Protection (OPP) Yes
Over Current Protection (OCP) Yes
Over Temperature Protection (OTP) Yes
Short Circuit Protection (SCP) Yes
Under Voltage Protection (UVP) Yes
Protection OPP/ OVP/ SCP/ OTP/ OCP/ UVP/ SIP/ NLO

Ports & Slots

PCIe Connectors 3
SATA Power Connectors 2

Fan / Cooling System

Fan Size 120mm
Fan Bearing Hydro Bearing

Power Type

Min. Power (Approx.) 675W
Maximum Power 750 Watt

Performance

Power Good Signal 100-150ms
Efficiency Rating 80 Plus Gold
Efficiency 90% Efficiency
Hold Up Time >=16ms (80% Load)

Physical Specification

Color Black
Form Factor ATX
Dimensions 50 x 140 x 86mm

Additional Info / Features

Regulatory / Safety Approval CE/ FCC/ CCC/ TUV-RH/ cTUVus/ RCM/ EAC
Others Capacitors: Chinese Electrolytic Capacitors, Topology: Active PFC + Full Bridge SRC LLC + DC to DC, Efficiency:??? Erp Regulation: ErP 2014, Main Power Connector (20+4), 90% Under Typical Load (50%) 12V-2x6(16Pin) x 1 Pin x 1 CPU(4+4) Pin x 1.
Specialty A new non-modular power supply called the DeepCool PN750D complies with the most recent PCIe 5.1 and ATX 3.1 Intel requirements. A variety of contemporary high-power components can be powered steadily by the PN750D thanks to its dedicated 12V-2x6, two EPS, and three PCIe ports.

Warranty Information

Warranty Details 10 Year

Description

DeepCool PN750D 750W 80 Plus Gold Non-Modular Power Supply – Reliable, Effective, and erected for High-Performance PC Builds

The DeepCool PN750D 750W 80 Plus Gold Non-Modular Power Supply is designed to deliver reliable power, high energy effectiveness, and quiet cooling for ultramodern gaming and productivity systems. erected with decoration factors and backed by DeepCool’s trusted engineering, the PN750D is an excellent choice for druggies looking for performance and stability at a great value.

With 750 watts of nonstop power, anon-modular string design, and an 80 Plus Gold effectiveness standing, this power force is ideal for powering medial-to grandly-end systems equipped with the rearmost CPUs and GPUs.

750W of Stable and harmonious Power Affair

The DeepCool PN750D delivers 750 watts of nonstop power, supporting ultramodern desktop systems with important CPUs and GPUs similar as the AMD Ryzen 7, Intel Core i7, NVIDIA RTX 3070, or AMD Radeon RX 6700 XT. This ensures smooth performance during gaming, content creation, or heavy multitasking workloads.

Its strong 12V single rail provides stable voltage affair, minimizing ripple and change indeed during peak operation. Whether you are gaming, streaming, or working with ferocious operations, the PN750D maintains harmonious and clean power delivery.

80 Plus Gold Certified for High Efficiency

Certified with the 80 Plus Gold standing, the PN750D operates with over to 90 effectiveness at typical loads. Advanced effectiveness means lower power is wasted as heat, reducing energy consumption and contributing to cooler system operation.

Advanced thermal performance also enhances the life of internal factors, making the PN750D a smart and eco-conscious choice for druggies erecting systems that are important, energy-effective, and cost-effective.

Non-Modular Design for Simplified Installation

The non-modular design of the PN750D offers convenience and ease of use, especially for druggies erecting systems in larger ATX cases. Pre-attached lines are ready to plug in, reducing setup time and barring the guesswork for first-time builders or druggies who prefer a draw-and-play experience.

While non-modular, the included flat black lines are satiny and flexible, allowing for cleaner string operation and bettered tailwind within the lattice. Their low-profile design helps maintain a tidy figure appearance while icing functionality.

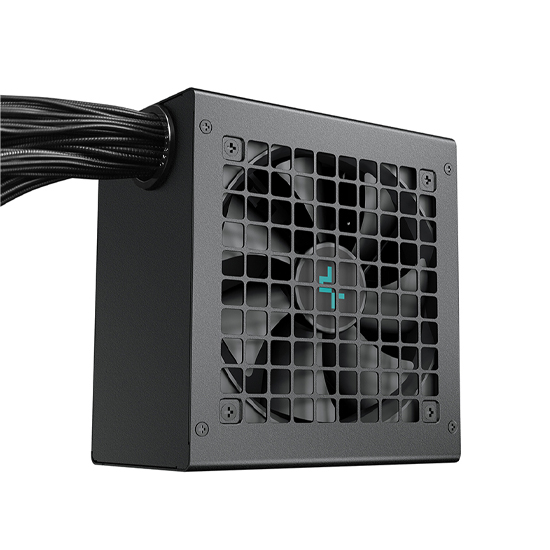

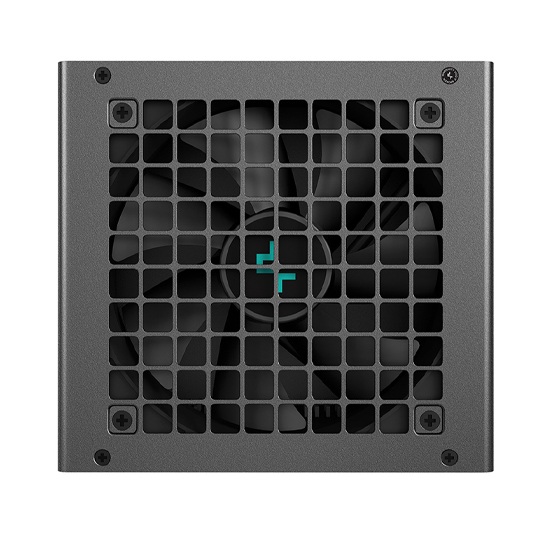

Quiet 120 mm FDB Fan with Intelligent Cooling

A erected-in 120 mm fluid dynamic bearing(FDB) addict provides effective and silent cooling. The addict is optimized for low-noise operation, ramping up only when demanded to keep temperatures in check during high- cargo scripts.

Smart thermal response ensures that the PSU remains cool and quiet during typical use, creating a quieter terrain whether you are gaming, working, or streaming.

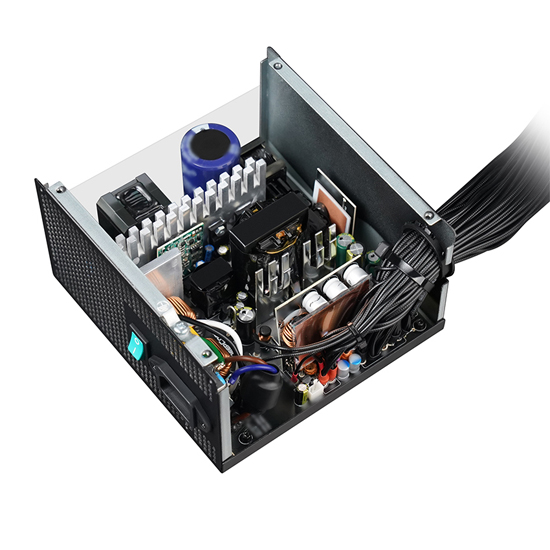

Premium Components for Reliable Performance

The DeepCool PN750D is erected using 100 Japanese primary capacitors, known for their superior thermal abidance and continuity. These high-quality factors help maintain voltage stability and insure long-term trust ability indeed in demanding surroundings.

Also, the PN750D features a comprehensive suite of defensive features to guard your system:

1. Over Voltage Protection(OVP)

2. Under Voltage Protection(UVP)

3. Over Power Protection(OPP)

4. Over Current Protection(OCP)

5. Short Circuit Protection(SCP)

6. Over Temperature Protection(OTP)

These safety mechanisms cover both the PSU and connected factors from electrical damage and system failure.

Compact Form Factor and Sleek Black Finish

Designed to fit standard ATX cases, the PN750D has a compact and effective layout that makes installation straightforward. Its minimalist matte black finish and each-black lines help it blend seamlessly into any PC figure, from gaming setups to professional workstations.

5-Time Bond for Long-Term Confidence

The DeepCool PN750D is backed by a 5-time limited bond, giving druggies added peace of mind and protection against manufacturing blights. DeepCool’s dependable client service ensures support is available when you need it most.

Crucial Features

 750W nonstop affair for medial-to grandly-end PC builds

 80 Plus Gold instrument for over to 90 energy effectiveness

 Non-modular string setup for quick and easy installation

 Flat black lines for better tailwind and clean routing

 Quiet 120 mm FDB addict with thermal control

 Premium Japanese capacitors for continuity and stability

 Full suite of protection features for system safety

 5-time manufacturer bond for trust ability

The DeepCool PN750D 750W Power Supply is a reliable, high- effectiveness result acclimatized for druggies who want quality performance, silent operation, and a simplified structure experience each at an affordable price.
