Price: 10,300.00৳
Regular Price: 11,700.00৳
Save: 1,400.00৳

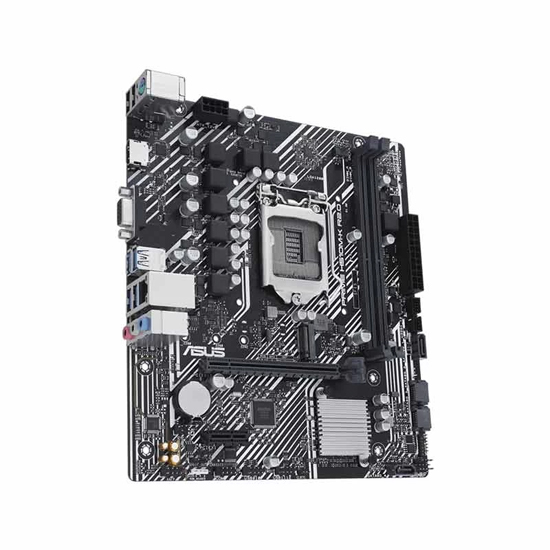

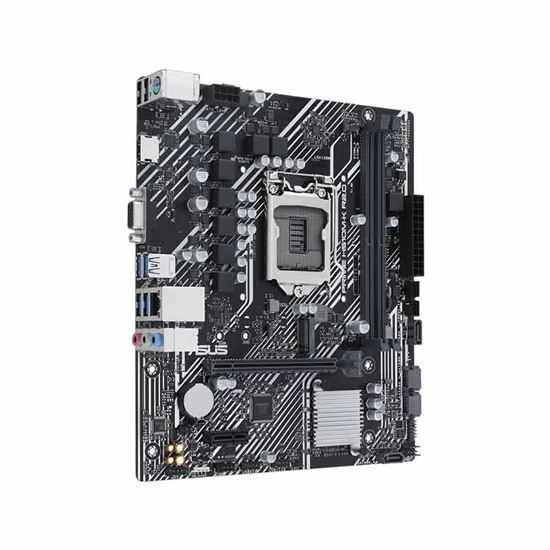

Asus PRIME H510M-K R2.0 Micro-ATX DDR4 Intel Motherboard
Body Color | Black |
Form Factor | Micro-ATX |
Chipset Brand | Intel |
Chipset | Intel H470 |
Sockets Supported | LGA1200 |
Supported CPU | 10th / 11th Gen Intel Core, Pentium and Celeron processors |
Generation | 10th/11th |
Memory Type | DDR4 |
Memory MHz | 3200(OC)/ 3000(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Slot (Additional Info) | 2 x DIMM |
Memory Max. | 64GB |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 1 |
M.2/SSD Expansion Slot Details | 1 x M.2 slot (Key M) type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
Graphics | Integrated |
Graphics Chipset | Integrated With Processor |
PCI Express Slot | 1 x PCIe 4.0/3.0 x16 slot, 1 x PCIe 3.0 x1 slot |
Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC |
Audio Channel | 7.1 |
LAN Chipset | 1 x Realtek 1Gb Ethernet |
LAN Speed (Mbps) | 0/100/1000 Mbps |
USB Port | 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
VGA Port | 1 |
HDMI Port | 1 |
SATA Port | 2 x SATA |
TPM Port | 1 |
COM Port | 1 |
Cable Management | Front |
RGB Support | RGB |
RGB Sync | ASUS Lighting Control |
RGB Connector | 1 x RGB header |
Approx Power Consumption | 60W |
BIOS Type | 128 Mb Flash ROM |
BIOS Model | UEFI AMI BIOS |
Supported Operating System | Windows 10 |
Compatible Products | LGA1200 Socket 10th & 11th Gen Intel Processor |
Features | ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot), ASUS Thermal Solution (Aluminum heatsink design), ASUS Lighting Control, and ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core |
Manufacturing Warranty | 3 Years |

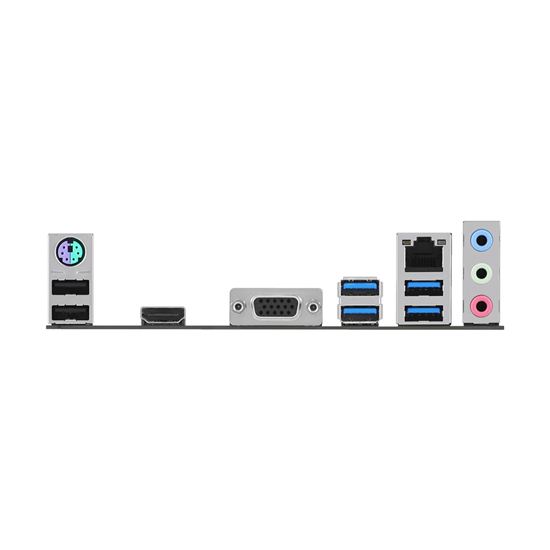

The Asus PRIME H510M-K R2.0 Micro-ATX Motherboard is designed for both and home use. It supports 10th and 11th Generation Intel Core, Pent Gold, Celeron processors, utilizing the Intel H510 chipset and LGA1200 socket. The motherboard features dual-channel DDR4 memory support, with speeds up to 3200 MHz and accommodating up to 64GB of RAM across two memory slots. For storage options, provides one M.2 slot (Socket 3, M key, type2280/2260) that supports PCIe 3.0 x4 mode, in addition to four SATA 6Gb/s ports, offer ample choices for both traditional and modern storage solutions. Network connectivity is facilitated by Realtek RTL1H Gigabit LAN, ensuring smooth and stable internet performance. The audio experience is by the Realtek A Audio Codec, delivering high-quality sound entertainment needs. back panel I/O ports include one VGA, one HDMI port, two USB 3.2 Gen1 ports, USB 20 ports, and three audio jacks (Mic in, Line Out, and Line In). Expansion capabilities consist of one PCIe 4.0 x16 slot and one PCIe 3.0 x1, allowing for additional hardware components With its micro-ATX form factor (22.6 cm x 20.3 cm the motherboard is suitable for compact PC builds and includes six mounting holes for secure installation. Furthermore, the motherboard is backed by a 3-year warranty, providing reliability and peace of mind.
