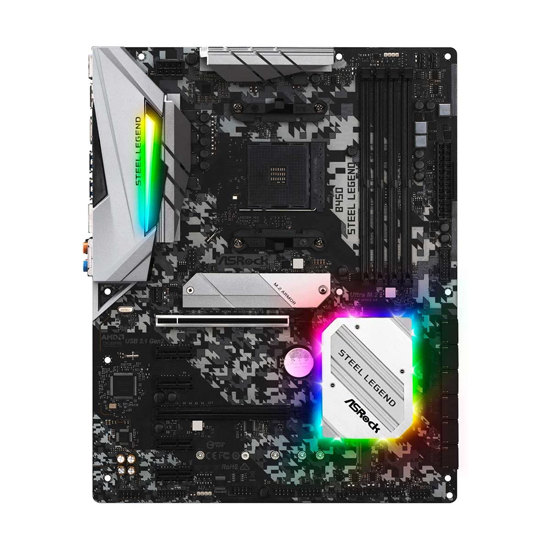

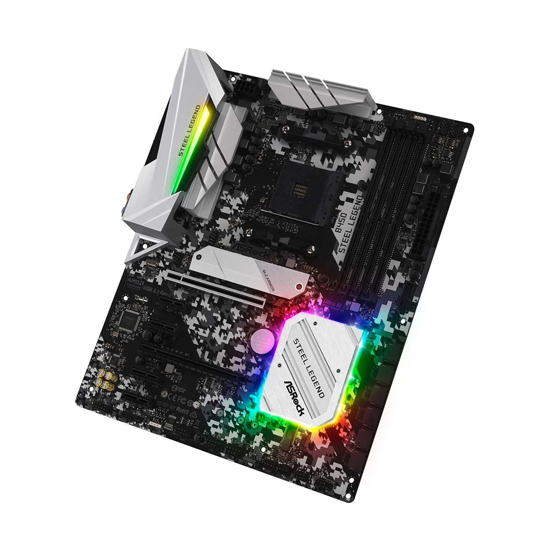

Asrock B450 Steel Legend DDR4 AMD Motherboard
Body Color | Black |
Form Factor | ATX |
Chipset Brand | AMD |
Chipset | AMD B450 |
Sockets Supported | AM4 |
Supported CPU | Ryzen 2000, 3000 and 5000 Series Processors |
Memory Type | DDR4 |
Memory Channel | Dual |
Memory Slot | 4 |
Memory Slot (Additional Info) | 4 x DIMM |
Memory Max. | 128GB |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 2 |
M.2/SSD Expansion Slot Details | 2 x M.2 (1 x Ultra M.2, type 2230/2242/2260/2280 M.2 PCI Express Gen3 x4), (1 x M.2, type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s and M.2 PCI Express Gen3 x2)) |
Graphics | Intregrated |
Graphics Chipset | AMD Vega Graphics support |
Multi-GPU Support | Yes Supports AMD Quad CrossFireX and CrossFireX |
PCI Express Slot | 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode), 2 x PCI Express 3.0 x16 Slots (PCIE1: x4 mode; PCIE4: x2 mode) |
Audio Chipset | Realtek ALC892/897 Audio Codec |
Audio Channel | 7.1 |
LAN Chipset | Realtek RTL8111H |
LAN Speed (Mbps) | 10/100/1000 Mb/s |
USB Port | 4 x USB 2.0, 5 x USB 3.1 Gen 1, 1 x USB 3.1 Gen 2 Type-A, 1 x USB 3.1 Gen 2 Type-C |
HDMI Port | 1 |
DisplayPort (DP) | 1 |
SATA Port | 4 |
TPM Port | 1 |
COM Port | 1 |
Cable Management | Front |
DirectX Support | 12 |
Heatsink | Yes |
CrossFire Support | Yes |
Raid Support | 0, 1, 10 |
RGB Support | RGB |
RGB Sync | Polychrome SYNC |
RGB Connector | 1 x RGB LED Header |
Approx Power Consumption | 70W |
BIOS Type | 128Mb AMI UEFI Legal BIOS |
BIOS Model | AMI UEFI Legal BIOS |
BIOS Version | ACPI 5.1, SMBIOS 2.3 |
Supported Operating System | Windows 10 |
Compatible Products | Supports AM4 Sockets Ryzen 2000, 3000 and 5000 Series Processors |
Manufacturing Warranty | 03 Years |

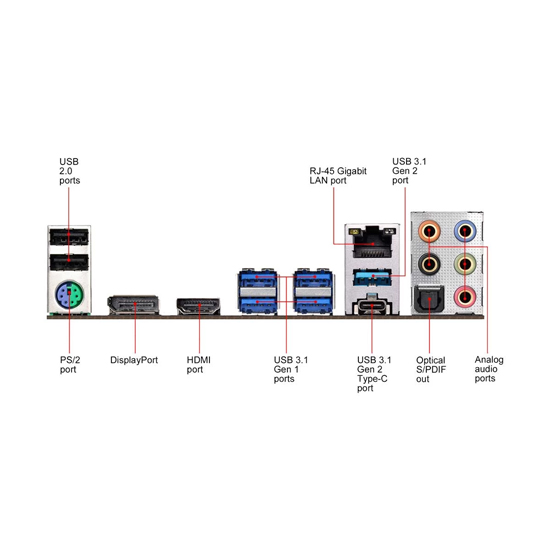

The Asrock B450 Steel Legend DDR4 AMD AM4 Micro-ATX Motherboard caters to gamers and enthusiasts. It is compatible with a wide range of AMD processors, including the Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, 3rd Gen Ryzen, 2nd Gen Ryzen, 1st Gen Ryzen, as well as Ryzen and Athlon with Radeon Vega Graphics, thanks to the AMD B450 chipset and AM4 socket. This motherboard supports dual-channel DDR4 memory, with speeds reaching up to 3533 (O.C.) MHz, and can accommodate up to 64GB of RAM over four memory slots. It provides two M.2 slots for PCIe 3.0 x4 mode and four SATA 6Gb/s ports for diverse storage options. The Realtek RTL8111H Gigabit LAN ensures reliable network connectivity, while the Realtek ALC897 Audio Codec enhances the audio output. Its back panel I/O includes an HDMI port, a DisplayPort, USB 3.2 Gen2 and Gen1 ports, USB 2.0 ports, and audio jacks. The motherboard also features one PCIe 3.0 x16 slot and one PCIe 3.0 x1 slot for additional components. Designed with a micro-ATX form factor, it fits well in compact PC cases and comes with six mounting holes. A 3-year warranty provides assurance of its durability.
