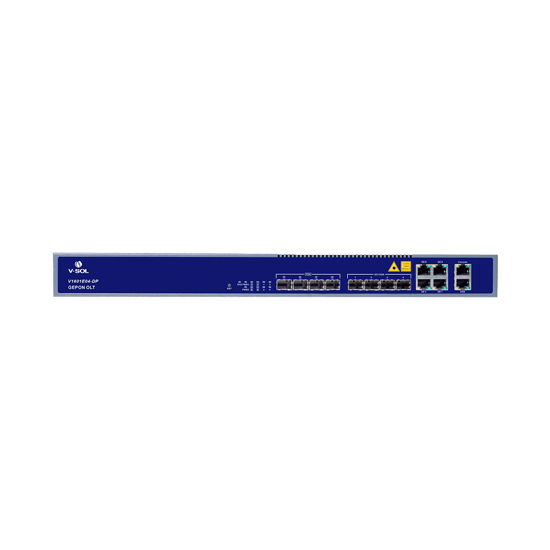

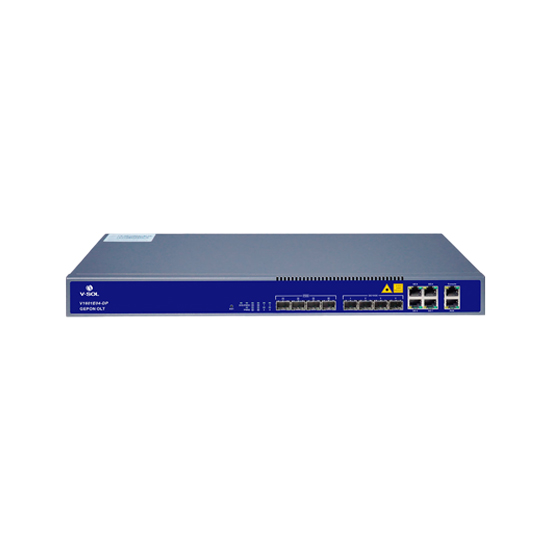

VSOL V1601E04-DP 10G 4 Port EPON OLT
Thumbnail 1 Thumbnail 2

VSOL V1601E04-DP 10G 4 Port EPON OLT

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: VSOL
৳44900 ৳48950 Save 8%

Key Features

  • Product Type: 10G EPON Optical Line Terminal (OLT)
  • Form Factor: 1U Rack-Mountable
  • Switching Capacity: 56Gbps
  • Packet Forwarding Rate: 41.67Mpps
  • EPON Standards: IEEE 802.3ah
Basic Information
Product Type 10G EPON Optical Line Terminal (OLT)
Physical Specification
Form Factor 1U Rack-Mountable
Dimension 442mm x 285mm x 44mm
Weight Approx. 3.5kg
Ports & Slots
EPON Ports 4
Supports up to 1:64 split ratio per port
Maximum of 256 ONUs
Uplink Ports 2 x 10G SFP+ ports
2 x 1G/10G combo ports
Management Ports 1 x 10/100/1000 Mbps RJ45 (Management Interface)
1 x Console Port (RS232)
Technical Info
Switching Capacity 56Gbps
Packet Forwarding Rate 41.67Mpps
Transmission Distance Up to 20km (with PX20+++ modules)
Layer 2 Features VLAN, QoS, Spanning Tree Protocol, IGMP Snooping
Multicast Supports 4K multicast groups
Interface Web GUI, CLI, SNMP, and Telnet
Monitoring ONU auto-discovery and configuration
Security ACL, user isolation, and anti-DOS attack features
Networking & Connectivity
EPON Standards IEEE 802.3ah
Power Type
Power Supply Input Voltage: AC 100-240V, 50/60Hz
Optional DC power input
General Information
Operating temperature -10°C to 55°C
Humidity 10% to 90% non-condensing

VSOL V1601E04-DP 10G 4 Port EPON OLT

The VSOL V1601E04-DP 10G 4-Port EPON OLT is a high-performance solution designed for advanced fiber-to-the-home (FTTH) and FTTx network deployments. Equipped with 4 EPON ports, it supports up to 256 ONU devices through a 1:64 split ratio per port, making it ideal for medium to large-scale networks. The OLT features 10G uplink capabilities via SFP+ interfaces, ensuring high-speed and stable data transmission for demanding applications. It supports advanced features such as QoS, VLAN, and multicast for efficient bandwidth management and enhanced user experience. With its compact 1U design, it saves space while offering robust performance. The web-based management interface simplifies configuration and monitoring, while its compatibility with IEEE 802.3ah standards ensures seamless integration with existing EPON equipment. Reliable and cost-effective, the V1601E04-DP is perfect for ISPs and enterprise networks.
