External I/O Ports: HDDx1 + SSDx3 or HDDx1 + SSDx2<br>
USB3.0x1 + USB2.0x1 + HD Audio
Materials: A grade SPCC 0.8mm Thick
General Information
Case TypeMicro ATX Gaming Case
Case Type
Motherboard SupportMicro ATX/ITX
CPU Clearance165mm
MaterialsA grade SPCC 0.8mm Thick
Ports & Slots
External I/O PortsHDDx1 + SSDx3 or HDDx1 + SSDx2<br>
USB3.0x1 + USB2.0x1 + HD Audio
Additional Info / Features
Other FeaturesGPU Clearance : 390mm
Dual chamber modular structure
Continuous curved tempered glass
HD audio
Physical Specification
Dimension410x287x361mm
Fan / Cooling System
FanTop: 3x120mm Fans or 360mm Radiator<br>
M/B: 2x120mm Fans (Slanted position)<br>
Bottom: 3x120mm Fans<br>
Rear: 1x120mm Fan

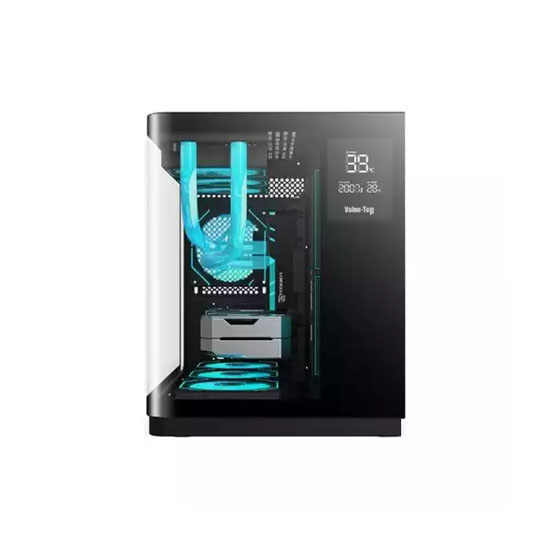

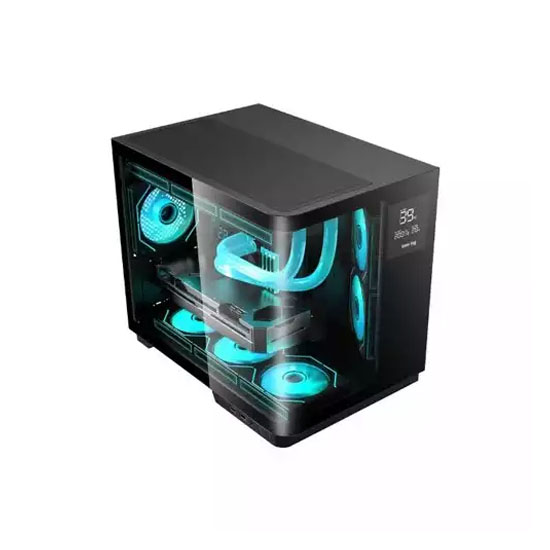

Value Top ARKVIEW RDF6 Micro ATX Gaming Case
Step into the future of compact gaming with the Value Top ARKVIEW RDF6 Micro ATX Gaming Case — where minimalist footprint meets maximum impact. Designed for gamers who value space efficiency without sacrificing style or performance, this sleek Micro ATX chassis redefines what small-form builds can achieve. The ARKVIEW RDF6 stands out with its futuristic tempered glass front panel, offering a rare front-facing transparent display that turns your RGB fans and internal components into a glowing centerpiece. Unlike traditional side-panel-only cases, this innovative design ensures your lighting and hardware steal the spotlight from every angle — even when the case is tucked against a wall. Despite its compact size, the RDF6 is engineered for powerful builds. It supports Micro-ATX and Mini-ITX motherboards, GPUs up to 320mm long, and CPU coolers up to 155mm, making room for high-end parts without compromise. The internal layout is intelligently optimized, featuring tool-free drive bays, a removable HDD cage for better airflow, and a dedicated PSU shroud that enhances both aesthetics and organization. Ventilation is masterfully balanced — the front glass is perforated with precision-cut airflow channels, while the top and rear vents ensure efficient heat dissipation.It supports multiple fan configurations and can even house a 240mm radiator at the top, providing excellent cooling options. Cable management is made easy with plenty of routing space and tie-down points behind the motherboard tray. The front I/O features USB 3.0, USB 2.0, audio jacks, and an LED control to switch through RGB lighting modes right from the panel. Finished in a sleek matte black with clean lines and futuristic detailing, the ARKVIEW RDF6 blends stealth with spectacle. It’s not just a case — it’s a compact command center for gamers who want cutting-edge design, bold visibility, and full-powered performance in a space-saving silhouette. Small case. Big statement.
