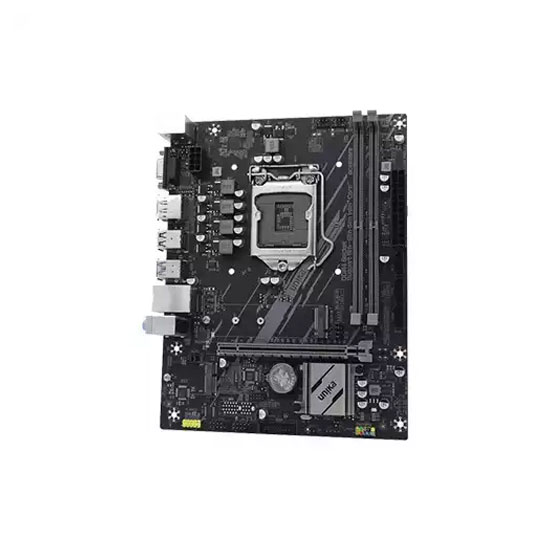

UNIKA UN-H311M PRO V2 DDR4 Intel 6th/7th/8th/9th Gen Micro ATX Motherboard
Thumbnail 1 Thumbnail 2

UNIKA UN-H311M PRO V2 DDR4 Intel 6th/7th/8th/9th Gen Micro ATX Motherboard

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: Unika
৳6200 ৳7900 Save 22%

Key Features

  • Supported CPU: Intel Gen 6/7/8/9 LGA1511 CPU
  • Chipset: Intel H311M
  • Max Memory Size: 16 GB
  • Memory Slot: 2 x DDR4 memory slots
  • Warranty: 3 Years
CPU
Supported CPU Intel Gen 6/7/8/9 LGA1511 CPU
Chipset Intel H311M
Memory
Max Memory Size 16 GB
Memory Type DDR4 3000/2933/2800/2666 memory* (actual memory data transfer speed depends on processor type and memory module)
Memory Slot 2 x DDR4 memory slots
Networking & Connectivity
LAN Onboard Realtek 8111H Gigabit network card; 1 x M.2 wifi interface
Audio Sound & Microphone
Audio Onboard Realtek ALC897 high-fidelity audio independent sound card
Ports & Slots
PCI Slot 1 x PCI-E x 16 graphics card slot; 1 x PCI-E x 1 slot
VGA 1 x DisplayPort display output; 1 x HDMI display output; 1 x VGA display output
Interface SATA Interface: 3 x SATA3.0 6Gb/s
M.2 Interface: 1 x M.2 slot, supports 2242/2260/2280 type storage devices
Power Connectors 24pin+8pin
USB 2 x USB 3.0 ports at the rear; 4 x USB 2.0 ports; 1 x USB 3.0 header at the front, 2 USB 3.0 ports can be expanded; 1 x USB 2.0 header, 2 USB 2.0 ports can be expanded
Physical Specification
Form Factor M-ATX
Dimension 170mm x 220mm
Warranty Information
Warranty 3 Years

UNIKA UN-H311M PRO V2 DDR4 Intel 6th/7th/8th/9th Gen Micro ATX Motherboard

The UNIKA UN-H311M PRO V2 DDR4 is a cost-effective and reliable Micro-ATX motherboard designed for Intel 6th, 7th, 8th, and 9th generation Core™, Pentium®, and Celeron® processors using the LGA1151 socket. Built on the Intel H310 chipset, this board offers a solid platform for budget desktop builds focused on everyday computing, office productivity, and home multimedia use.
Featuring two DDR4 DIMM slots, the UN-H311M PRO V2 supports up to 32GB of dual-channel memory with speeds of up to 2666 MHz (with 8th/9th Gen CPUs), ensuring smooth multitasking and responsive system performance. It includes one PCIe 3.0 x16 slot for installing a dedicated graphics card, making it suitable for light gaming or enhanced visual output, along with one PCIe x1 slot for adding expansion cards like Wi-Fi or sound adapters.
One of the key highlights is the M.2 NVMe/SATA SSD slot, supporting high-speed storage devices for faster boot times, reduced application loading, and improved overall system responsiveness—ideal for users looking to maximize performance without sacrificing value.
Connectivity options include HDMI and VGA ports for dual-display output, allowing flexible monitor setups. The rear I/O panel features multiple USB ports (including USB 3.1 Gen1 and USB 2.0), a PS/2 port for legacy keyboard/mouse, and a Gigabit LAN port for stable internet access. High-definition audio support delivers clear sound for entertainment and communication.
Designed for durability, the UN-H311M PRO V2 uses high-quality components and a stable power design to ensure long-term reliability. Its compact Micro-ATX form factor fits most standard cases, making it a versatile choice for small or budget-oriented builds.
While it doesn’t support CPU overclocking, the UNIKA UN-H311M PRO V2 DDR4 delivers essential features, broad CPU compatibility, and modern storage support at an affordable price—making it a smart pick for first-time builders, system upgraders, or users seeking a dependable foundation for a basic Intel-based PC.
