Price: 7,400.00৳
Regular Price: 9,670.00৳
Save: 2,270.00৳
TP-Link |
VIGI NVR1004H-4P |
Network Video Recorder |
4-Channel |
80 Mbps |
60 Mbps |
1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
HDMI/VGA Simultaneous Output |
1/4 |
G.711A/G.711U/G.726 |
H.265+/H.265/ H.264+/H.264 |
H.265+/H.265/ H.264+/H.264 |
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
4 Channel |
2-ch @ 8MP, 4-ch @ 4MP |
• Manual Recording • Scheduling Recording • Motion Detection Recording |
• Instant Playback • Regular Playback • Tag Playback • Event Playback |
• Regular Backup • Video Clip Backup |
• Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
TCP/IP, DHCP, DNS, NTP, UPnP |
Android, iOS |
80 Mbps |
60 Mbps |
Chrome (57+), Firefox (52+), Edge (91+) |
ONVIF, CGI |
1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
2× USB 2.0 |
1-ch RCA Input; 1-ch RCA Output |
N/A |
N/A |
1× DC Jack |
1 |
N/A |
N/A |
1 |
1 |
1 SATA Interface |
Up to 16 TB |
802.3at/af Compliant |
1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
53 W△ Available for All PoE+ Ports, 30 W Max per Port |
Standard: 802.3af/at PoE Ports: Ports 1-4 PoE Budget: 53 W |
• Motion Detection • Video Tampering • Scene Change Detection • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Abnormal Sound Detection • Smart Frame |
• Video Loss • Offline and IP Conflict • Disk Exception • Login Exception |
• Recording • White Light Alarm • Buzzer • Log • Audible Alarm |
-10–55 °C |
-40–70 °C |
10%~90% RH Non-Condensing |
• NVR: -10–55 °C • Power Adapter: 0–40 °C |
10%~90% RH Non-Condensing |
53.5V DC/1.31A |
53.5V DC/1.31A |
4.25 W (without disk) |
CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
4-Channel IP Video Input, up to 8MP Resolution |
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
VIGI Network Video Recorder Power Adapter HDD Screws Mouse Quick Installation Guide |
1 Year |

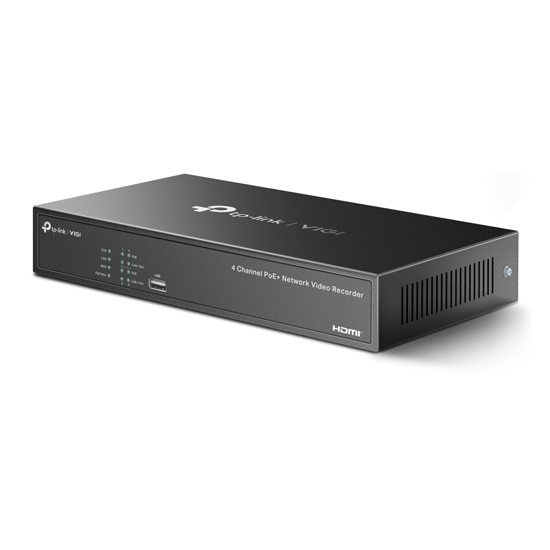

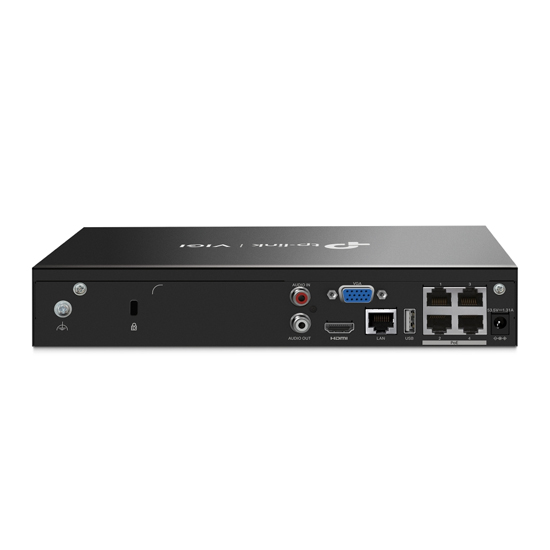

TP-Link VIGI NVR1004H-4P 4-Channel PoE NVR – All-in-One
Surveillance result for Small to Medium Businesses
Insure smart, secure, and flawless videotape monitoring with the TP-Link VIGI NVR1004H-4P, a compact yet important 4-channel PoE Network Video Archivist designed for small to medium-sized surveillance systems. Ideal for retail stores, services, homes, and small storages, this NVR offers easy setup, high-description recording, PoE power force, and intelligent features to cover what matters most.
All-in-One 4-Channel Video Surveillance Hub
The VIGI NVR1004H-4P
supports up to 4 high-resolution IP cameras, making it a perfect fit for
businesses or locales taking modest but dependable videotape surveillance
content. With real-time recording and monitoring, this NVR ensures that every
critical moment is captured easily and efficiently.
Whether you’re watching over your entry points, lobby, storehouse area, or out-of-door demesne, this NVR gives you full control and oversight from a single, intuitive platform.
Integrated PoE for Easy Camera Deployment
Forget about
complicated installations. The VIGI NVR1004H-4P features 4 erected-in PoE(Power
over Ethernet Plus) anchorages, allowing you to connect and power compatible
VIGI cameras with a single Ethernet string. This significantly simplifies setup
and reduces costs by barring the need for separate power sources or redundant
wiring.
Each PoE harborage can supply up to 30W of power, icing comity with high-performance surveillance cameras that bear further energy for advanced features like infrared night vision and motorized drone.
High-Definition Recording with Effective Compression
Capture and store videotape
footage in over to 5MP resolution, delivering sharp images for accurate
identification and detail analysis. Whether you are reviewing daytime events or
night intrusions, the VIGI NVR1004H-4P ensures high clarity in every frame.
The advanced H.265 videotape contraction format enables effective bandwidth operation and reduces storehouse demands without immolating videotape quality. This allows you to record longer and store more data using lower fragment space, making your surveillance system more cost-effective.
Flexible storehouse and Playback Options
The NVR1004H-4P
supports a single SATA hard drive over to 10 TB, giving druggies plenitude of
space to store weeks or indeed months of surveillance footage. Smart recording
modes including listed, stir-touched off, and nonstop recording give flexible
options to meet your specific security requirements.
Smart playback lets druggies snappily search footage by time, stir events, or custom labels, allowing for fast and effective videotape review. Export important clips fluently for legal or reporting purposes.
Remote Viewing Anytime, Anywhere
Stay connected to
your surveillance system from nearly anywhere using the VIGI Security App or
VIGI Security Management System(VIGI CMS). Ever view live footage, playback
recordings, and admit real-time cautions directly on your smartphone or PC.
The NVR also supports web access via a cybersurfer, so you can securely cover and manage your cameras from any internet-connected device. SSL encryption and secure stoner authentication keep your surveillance data safe from unauthorized access.
Smart Discovery Features for Proactive Security
Integrating impeccably
with VIGI cameras, the NVR1004H-4P enables intelligent discovery features similar
as stir discovery, line crossing, intrusion discovery, and tampering cautions.
These smart features help minimize false admonitions and enhance situational mindfulness,
icing quick response in case of suspicious exertion.
Admit drive announcements or dispatch cautions the moment abnormal exertion is detected, allowing you to act before incidents escalate.
Compact, Reliable, and stoner-Friendly
With a compact and
fanless design, the TP-Link VIGI NVR1004H-4P operates quietly and efficiently,
making it ideal for quiet surroundings similar as homes, services, or event
areas. It also offers HDMI and VGA videotape affair, allowing for real-time
original monitoring with easy display connectivity.
Setup is quick and hassle-free, thanks to the intuitive stoner interface and bus camera discovery point. Indeed druggies with limited specialized knowledge can emplace a dependable and secure surveillance system in twinkles.
Crucial Features at a regard
✔ Supports 4 IP cameras
✔ Erected-in 4x PoE anchorages for easy draw-and-play camera installation
✔ Up to 5MP resolution for demitasse-clear videotape
✔ Contraction reduces bandwidth and storehouse needs
✔ Supports 1 SATA HDD up to 10 TB
✔ Remote monitoring via VIGI App, CMS, and web cybersurfer
✔ Intelligent discovery stir, line crossing, intrusion, camera tampering
✔ HDMI and VGA affair for original live view
✔ Compact and silent fanless design for inner surroundings
The TP-Link VIGI NVR1004H-4P is your ideal entry-point into professional-grade surveillance. With erected-in PoE, smart discovery, remote access, and high-resolution recording, it combines performance and convenience in one satiny, important unit — backed by TP-Link’s trusted trustability.
