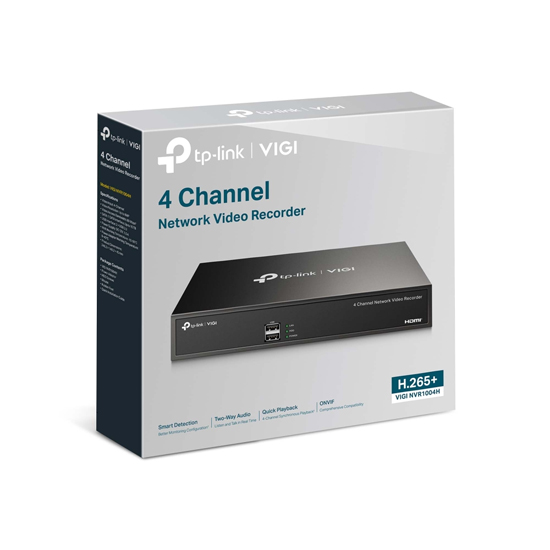

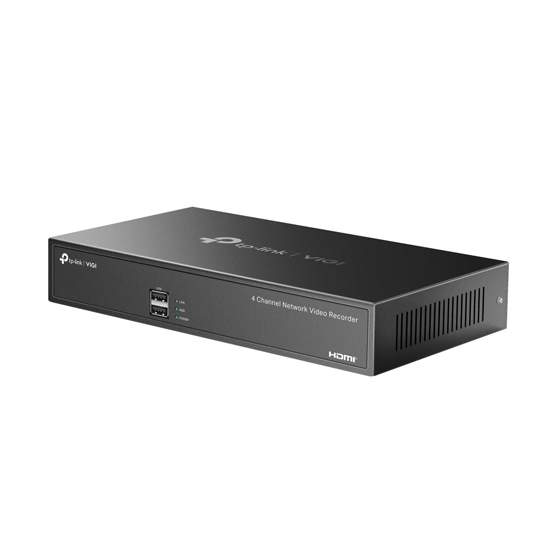

TP-Link VIGI NVR1004H 4 Channel NVR

TP-Link VIGI NVR1004H 4 Channel NVR

Model: VIGI NVR1004H

Reviews: No reviews yet

Price: 4,450.00৳

Regular Price: 5,170.00৳

Save: 720.00৳

Key Features:

  • IP Video Input: 4-Channel
  • Incoming Bandwidth: 80 Mbps
  • Outgoing Bandwidth: 60 Mbps
  • Mobile Phone Access: Android, iOS
  • Interoperability: ONVIF, CGI
  • USB Interface: 2× USB 2.0
  • SATA: 1 SATA Interface
  • Warranty Details: 1 Year
Buy Now

Specifications

General Information

Brand TP-Link
Model VIGI NVR1004H
Type Network Video Recorder

Audio and Video

IP Video Input 4-Channel
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode HDMI/VGA Simultaneous Output
Multi-View Display 1/4

Decoding

Audio Compression G.711A/G.711U/G.726
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback 4-Channel
Decoding Capability 2-ch @ 8MP, 4-ch @ 4MP

Recording Administration

Record Mode • Manual Recording
• Scheduling Recording
• Motion Detection Recording
Playback Mode • Instant Playback
• Regular Playback
• Tag Playback
• Event Playback
Backup Mode • Regular Backup
• Video Clip Backup
Playback Function • Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off

Network

Protocol UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access Android, iOS
Web Browser Chrome (57+), Firefox (52+), Edge (91+)
Interoperability ONVIF, CGI

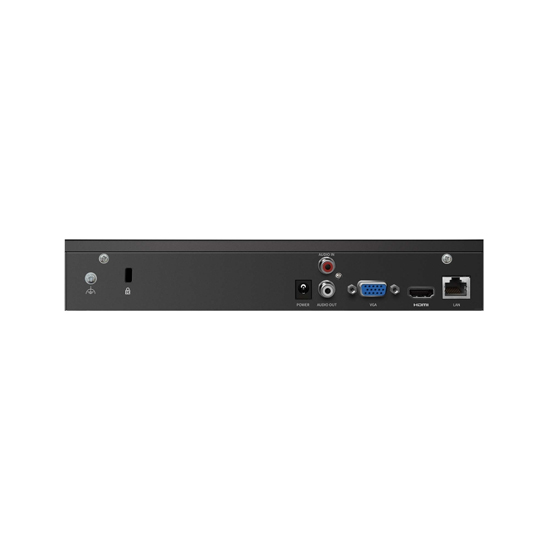

External Interface

Network Interface 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface 2× USB 2.0
Audio Interface 1, Audio In; 1, Audio Out
Alarm In/Out N/A
Serial Interface N/A
Power 1× DC Jack
Reset Button 1
eSATA N/A
HDMI 1
VGA 1

Camera & Audio

Speaker N/A

HARD DISK

SATA 1 SATA Interface
Capacity Up to 16 TB Capacity for Each HDD*

Alarm

General Alarm • Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Smart Frame
Anomaly Alarm • Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
Alarm Linkage • Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm

Environmental

Storage Temperature -40–70 °C
Storing/Storage Humidity 10%~90% RH Non-Condensing
Working Temperature • NVR: -10–55 °C
• Power Adapter: 0–40 °C
Working Humidity 10%~90% RH Non-Condensing

Power Type

External Power Supply DC 12V/1.5A
Max. Power Consumption 4.25 W (without disk)

Certification

Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Physical Specification

Net Weight 0.59 kg
Gross Weight 0.95 kg
Dimensions (W X D X H) 246.2 × 148.2 × 45 mm
Package Content • VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse • Rubber Feet • Quick Installation Guide

Warranty Information

Warranty Details 1 Year

Description

TP-Link VIGI NVR1004H 4-Channel NVR – Smart and Secure Surveillance for Home and Business

Insure the safety and protection of your property with the TP-Link VIGI NVR1004H, a compact yet important 4-channel Network Video Archivist designed for small-scale surveillance systems. Whether for home security, retail spaces, small services, or caffs, this NVR offers intelligent monitoring, high-resolution videotape recording, and flawless remote access to keep your demesne secure 24/7.

Reliable 4-Channel Video Recording

The TP-Link VIGI NVR1004H supports up to 4 IP surveillance cameras, furnishing complete content for small to medium surroundings. You can cover all four channels contemporaneously, icing no eyeless spots across your security zones. It's ideal for those seeking a dependable, easy-to-use result for essential videotape surveillance needs without complexity or redundant cost.

High-Resolution Monitoring for Enhanced Clarity

With support for over to 5MP resolution, the VIGI NVR1004H delivers crisp and detailed footage, helping you prisoner critical illustrations similar as faces, license plates, and fine object details. Whether you are covering indoors or outside, during the day or night, this NVR ensures clear and practicable recordings that ameliorate your response to incidents and implicit pitfalls.

Video Compression for Efficiency

Equipped with advanced H.265 videotape contraction technology, the NVR1004H significantly reduces storehouse and bandwidth conditions without immolating image quality. Compared to traditional H.264, H.265 improves storehouse effectiveness by over to 50, allowing for longer recording durations and more effective network performance. This leads to cost savings and bettered system performance.

Flexible Storage Options for Long-Term Recording

The VIGI NVR1004H features a SATA hard drive niche supporting up to 10 TB of storehouse, offering ample space for long-term videotape retention. Whether you need nonstop recording, stir-touched off prisoner, or listed monitoring, this NVR gives you complete control over how and when videotape is stored.

Videotape footage is easy to manage, review, and import thanks to its stoner-friendly interface and smart hunt functions. Find critical clips in seconds using pollutants for time, event, or camera.

Remote Access via App, Web & CMS

Stay connected to your surveillance system anytime, anywhere with remote access support. The TP-Link VIGI NVR1004H works seamlessly with the VIGI Security App, VIGI Security Management System(CMS), and a secure web interface. You can view live feeds, play back footage, manage storehouse, and configure settings from your smartphone, tablet, or PC.

Whether you’re at home, in the office, or on the go, real-time monitoring is always within reach.

Smart Surveillance Features for Intelligent Detection

When paired with TP-Link VIGI cameras, the NVR1004H supports smart security features similar as:

1. Stir Discovery

2. Line Crossing Discovery

3. Intrusion Discovery

Camera Tampering Alerts

These intelligent analytics give visionary security by waking you to abnormal exertion the moment it occurs. Stay informed and respond incontinently with customizable announcements through your app or dispatch.

Original Viewing with HDMI and VGA Affair

The TP-Link VIGI NVR1004H is equipped with HDMI and VGA affair, allowing you to connect it directly to a examiner or television for real-time original viewing. Whether you’re setting up a security office or watching footage in your office, the system provides flexible display options for effective surveillance monitoring.

Compact, Quiet, and Easy to Install

The compact, featherlight design of the NVR1004H fits seamlessly into any terrain, from home setups to retail counters. Its fanless operation ensures silent performance, making it ideal for noise-sensitive areas like homes, services, or frontal divisions.

Thanks to its draw-and-play installation, indeed druggies with minimum specialized experience can set up and configure the NVR with ease. Automatic camera discovery and a stoner-friendly interface make system deployment presto and intuitive.

Crucial Features at a regard

 Supports 4 IP camera channels

 Up to 5MP videotape resolution

 Advanced H.265 contraction

 1x SATA HDD up to 10 TB for long-term storehouse

 Remote access via VIGI App, CMS, and web cybersurfer

 Smart discovery stir, intrusion, line crossing, tampering

 HDMI and VGA affair for original display

 Silent fanless design for noise-sensitive areas

 Simple setup with bus camera discovery

With the TP-Link VIGI NVR1004H, druggies get a dependable, cost-effective, and smart surveillance result acclimatized for lower installations. Offering professional features in a compact form, it ensures peace of mind and important security — anytime, anywhere.
