TP-Link VIGI C430 4MM 3MP Full Color Turret Network Camera
Thumbnail 1 Thumbnail 2 Thumbnail 3

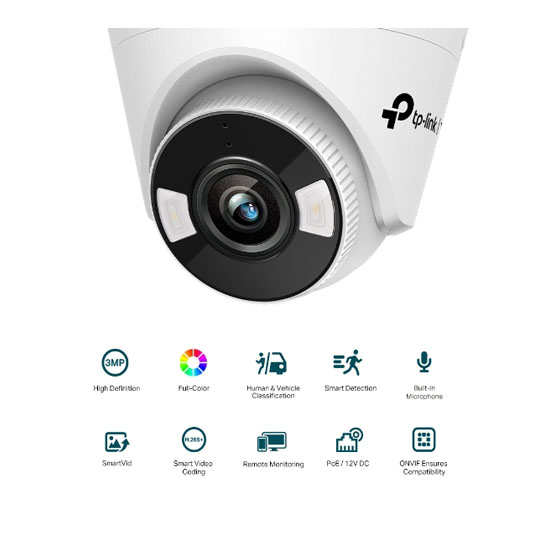

TP-Link VIGI C430 4MM 3MP Full Color Turret Network Camera

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: TP-Link
৳2850 ৳3560 Save 20%

Key Features

  • Max. Resolution: 3MP (2304 × 1296)
  • Privacy Masking: Up to 4 Masks
  • Cloud Access: Cloud
  • Warranty: 1 Year Warranty
  • Image Sensor: 1/2.8” Progressive Scan CMOS
  • Shutter Speed: 1/3 to 1/10000 s
Audio
Audio Input Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering N/A
Audio Bit Rate 64 Kbps(G.711 alaw)
Audio Communication N/A
Audio and Video
Audio Output N/A
Network
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR
Web Browser Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Management Features
Cloud Access Cloud
Alarm
Alarm Linkage Message Push
Camera
Linkage Method N/A
Frame Rate Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Image Sensor 1/2.8” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Camera Lens 4 mm
Minimum Illumination Color: 0.1 Lux; 0 Lux with IR
WDR DWDR
Digital Noise Reduction 3D DNR
IR Working Distance 30m
Viewing Angle 2.8mm: 88.8°/48.9°/106.5°(H/V/D)
Lens Type Fixed Focal Lens
Angle Adjustment Pan: 0° to 360°
Tilt: 0° to 85°
Rotate: 0° to 360°
IR LEDs Quantity: 2
Range: 30m
Wavelength: 850nm
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
Max. Resolution 3MP (2304 × 1296)
Physical Specification
Package Content VIGI Network Camera
Quick Start Guide
Mounting Accessories
Dimension 174 × 74 × 71 mm
Material Plastic
Gross Weight 0.35 Kg
Dimensions
Net Weight 0.2 Kg
Power Type
Power Consumption 12V DC: Max 5W PoE: Class 0
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Warranty Information
Warranty 1 Year Warranty
Lens
Aperture 4 mm: F1.6
Lens Mount M12
Focal Length 4mm
Day/Night Switch Day/Night/Auto/Schedule-Switch
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
SNR ≥ 52 dB
Image Parameters Switch Yes
Video
Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 704x576, 640x480, 352x288, 320x240
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Privacy Masking Up to 4 Masks
Region of Interest (ROI) 1 Region

TP-Link VIGI C430 4MM 3MP Full Color Turret Network Camera

The TP-Link VIGI C430 4mm 3MP Full Color Turret Network Camera is a high-performance indoor/outdoor security solution engineered to deliver sharp, color-rich video for residential and small business surveillance. Equipped with a 3MP (2304 x 1296) resolution, this camera delivers exceptional image clarity compared to standard 1080p systems, capturing every detail—from facial features to license plates—with remarkable precision.Equipped with a fixed 4mm lens, the C430 offers a more focused field of view compared to its wider-angle counterparts, making it ideal for monitoring specific entry points, driveways, or critical areas where targeted coverage is essential. Its Full Color technology ensures vivid, true-color video footage day and night by utilizing integrated spotlight illumination, significantly enhancing visibility and identification accuracy in low-light conditions.

This turret camera supports H.265 compression , reducing bandwidth and storage usage while maintaining high-quality video output. It also includes intelligent detection capabilities such as motion detection and intrusion alerts, enabling users to receive real-time notifications and respond promptly to potential threats.

Built with durability in mind, the VIGI C430 features an IP67-rated housing that protects against harsh weather conditions, making it suitable for both indoor and outdoor deployment. The camera integrates seamlessly into the VIGI Surveillance System , allowing for easy setup and centralized control via the VIGI app or compatible NVR. Power over Ethernet (PoE)lines installation utilizing a single cable to transmit both data and..
With its sleek turret design, advanced imaging features, and robust construction, the TP-Link VIGI C430 4mm model delivers professional-grade security tailored for modern monitoring needs—offering clear Full Color video, smart Alerts and dependable performance in a compact, weather-resistant design.
