Price: 25,500.00৳
Regular Price: 29,900.00৳
Save: 4,400.00৳

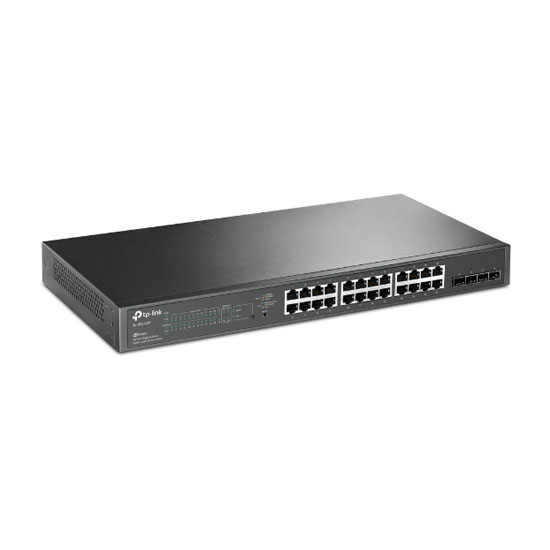

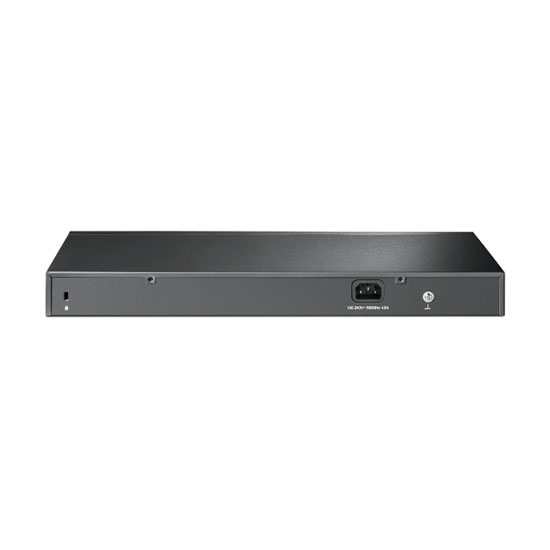

TP-Link TL-SG2428P JetStream 28 Port Gigabit Smart Switch With 24 Port PoE+
Product Type | Network Switch |
Mounting Type | Rack Mountable |
Number Of Total Port | 28 Port |
Interface(s) | • 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 4× Gigabit SFP Slots |
PoE Ports (RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports • PoE Power Budget: 250 W* |
Switching Capacity | 56 Gbps |
MAC Address Table | • V1, V2, V4 and above: 8K • V3: 16K |
Packet Forwarding Rate | 41.7 Mpps |
Jumbo Frame | • V1, V2, V4 and above: 8K • V3: 16K |
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
Packet Buffer Memory | 4.1 Mbit |
L2 and L2+ Features | • 32 IP Interfaces
- Support IPv4/IPv6 Interface
• Static Routing
- 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED |
Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller |
Cloud Access | Yes, through • Omada Cloud-Based Controller • OC300 • OC200 • Omada Software Controller |
Management Features | • Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log |
Package Contents | TL-SG2428P • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet |
Dimension | 440 × 220 × 44 mm |
Max Heat Dissipation | • V1: 1052.94 BTU/h (with 250 W PD connected); 109.53 BTU/h (with no PD connected) • V2: 1005.66 BTU/hr (220V/50 Hz) (with 250 W PD connected) • V3: 996.01 BTU/hr (110V/60Hz) (with 250 W PD connected) • V4: 1047.30 BTU/hr (110V/60 Hz) (with 250 W PD connected) |
System Requierment | Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
Warranty | 2 Years Warranty |
Power Supply | 100-240V AC, 50/60Hz |
Max Power Consumption | • V1: 308.6 W (110V/60Hz with 250 W PD connected); 32.1 W (110 V/ 60 Hz with no PD connected) • V2: 294.7 W (220 V/50 Hz) (with 250 W PD connected) • V3: 291.9 W (110V/60Hz) (with 250 W PD connected) • V4: 306.9 W (110V/60Hz) (with 250 W PD connected) |
Number Of Fans | 2 |
TP-Link TL-SG2428P JetStream 28 Port Gigabit Smart Switch With 24 Port PoE+
The TP-Link TL-SG2428P JetStream is a high-performance, 28-port Gigabit Smart Switch designed to deliver advanced speed, reliability, and efficiency for growing businesses. Featuring 24 IEEE 802.3at/af PoE+ ports and 4 Gigabit SFP ports , it offers flexible connectivity options while powering devices such as IP cameras, VoIP phones, and wireless access points—eliminating the need for extra power outlets.
With a total switching capacity of up to 56 Gbps and a forwarding rate of 41.67 Mpps , the TL-SG2428P ensures fast and smooth data transfer across your network. It supports essential Layer 2 features including VLANs, QoS, Link Aggregation (LACP), IGMP Snooping, and STP, enabling efficient traffic management, enhanced security, and seamless network expansion.
Each PoE+ port delivers up to 30 watts of power , supporting high-demand devices with ease. The switch also includes PoE scheduling and priority reboot functions , allowing users to manage power delivery efficiently and remotely reset connected devices when needed.
Equipped with a user-friendly web interface, the TL-SG2428P simplifies configuration and monitoring. Its intuitive management tools allow for easy setup of VLANs, bandwidth control, and security settings, making it ideal for small to mid-sized businesses seeking powerful yet simple networking solutions.
The compact metal chassis is designed for durability and efficient heat dissipation. Its quiet, fanless design makes it suitable for noise-sensitive environments like offices and schools.
Whether you're deploying a secure surveillance system or expanding your business network, the TP-Link TL-SG2428P JetStream Smart Switch combines performance, scalability, and intelligent PoE management in an affordable, easy-to-use package.
