Interface(s)5 10/100Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
Number Of Total Port5
Fan / Cooling System
Fan/FanlessFanless
Power Type
Power ConsumptionMaximum: 1.48W (220V/50Hz)
Power SupplyExternal Power Adapter(Output: 5.0VDC / 0.6A)
Approx Power Consumption1.87W(220V/50Hz)
Physical Specification
Dimension4.1 x 2.8 x 0.9 in. (103.5 x 70 x 22 mm)
Max Heat Dissipation6.38BTU/h
Package Contents5-Port 10/100Mbps Desktop Switch, Power Adapter, Installation Guide
Technical Info
Transfer MethodStore And Forward
General Information
FunctionGreen Technology, Saving Power Up To 68% 802.3X Flow Control, Back Pressure
Additional Info / Features
CertificationsFCC, CE, RoHs
Networking & Connectivity
Data Transfer Rates100 Mbps
Warranty Information
Warranty1 Year
Basic Information
Product TypeNetwork Switch

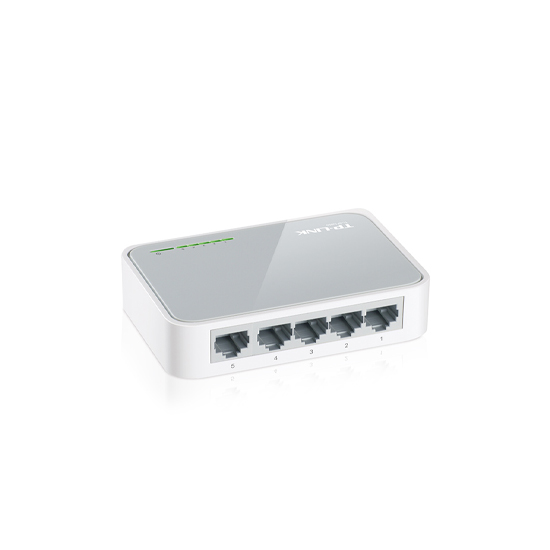

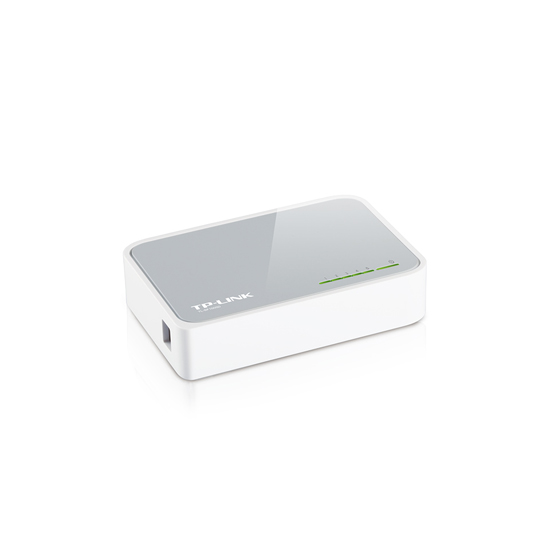

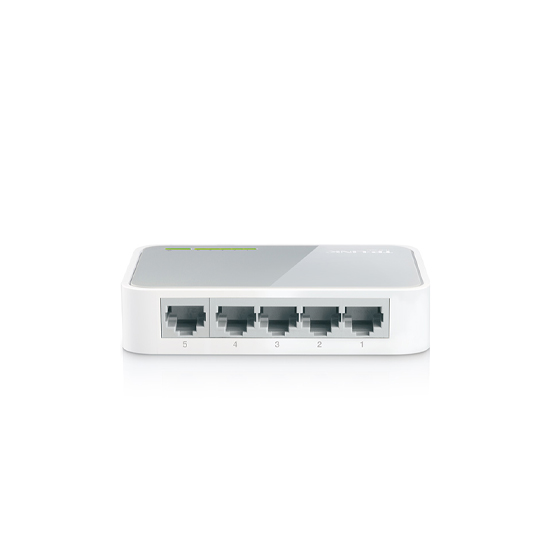

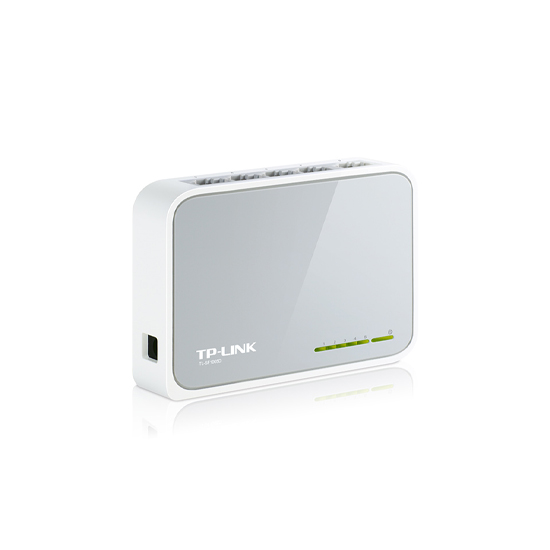

The TP-Link TL-SF1005D 5-Port 10/100 Mbps Desktop Switch offers a streamlined and effective way to enhance your wired network. Equipped with five 10/100Mbps auto-negotiation RJ45 ports, it ensures smooth connectivity and swift data transfer among various devices. It features auto MDI/MDIX, removing the necessity for crossover cables and making setup straightforward. A notable attribute of the TL-SF1005D is its Green Ethernet technology, which considerably lowers power consumption by adjusting power usage based on link status and cable length, thus reducing energy costs while delivering peak network performance. Additionally, it incorporates IEEE 802.3x flow control to guarantee dependable data transfer and avert packet loss in high traffic. The switch's plug-and-play design facilitates effortless installation without the need for configuration. Just connect your devices, and it will manage the network traffic automatically for superior performance. Its non-blocking switching architecture propels and filters packets at full wire-speed, optimizing throughput and making it an excellent option for enhancing your high-performance wired network. The TL-SF1005D's silent operation is due to its compact, fanless design, ideal for environments where noise is a concern. With its plastic casing and desktop configuration, it offers versatile placement options. In summary, the TP-Link TL-SF1005D is a dependable and convenient solution for easily expanding your wired network.
