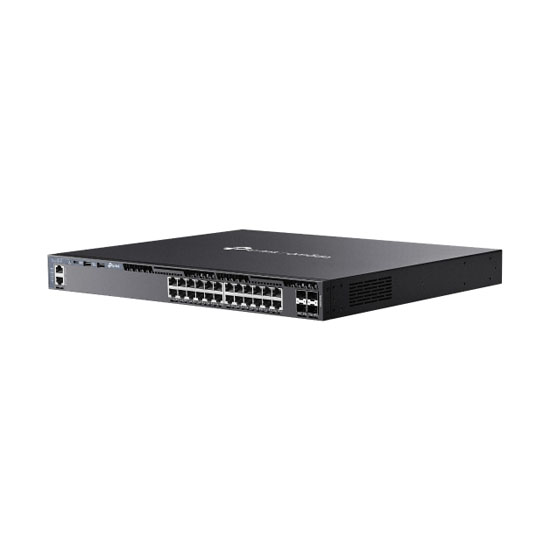

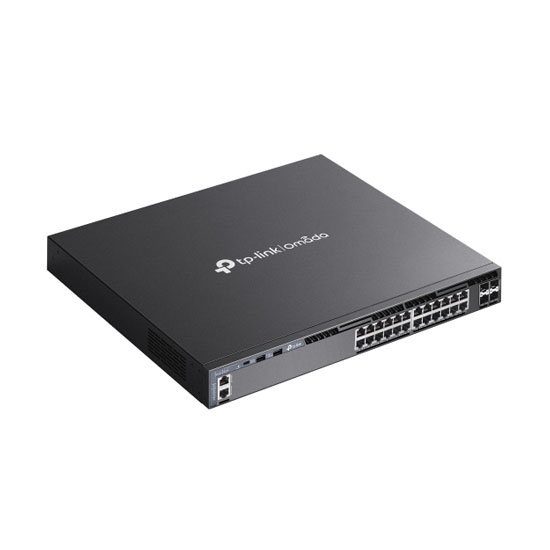

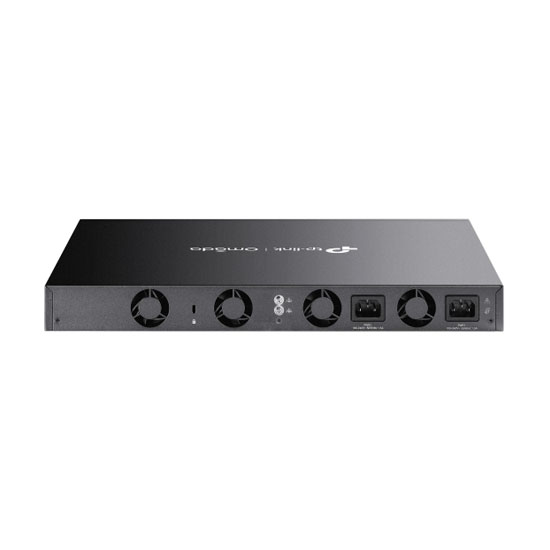

TP-Link SG6428X Omada 24 Port Gigabit Stackable L3 Managed Switch With 4 10G Slots
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4

TP-Link SG6428X Omada 24 Port Gigabit Stackable L3 Managed Switch With 4 10G Slots

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: TP-Link

Key Features

  • Product Type: Network Switch
  • Number Of Total Port: 24 Port
  • Switching Capacity: 128 Gbps per Unit
  • Packet Forwarding Rate: 95.2 Mpps
  • Cloud Access: Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  • Warranty: 2 Years Warranty
Basic Information
Product Type Network Switch
Mounting Type Rack Mountable
Ports & Slots
Number Of Total Port 24 Port
Interface(s) 24× 10/100/1000 Mbps RJ45 Ports<br> 4× 10G SFP+ Slots<br> 2× USB 2.0 Ports<br> 1× RJ45 Console Port<br> 1× USB Type-C Console Port<br> 1× RJ45 Management Port
Networking & Connectivity
Switching Capacity 128 Gbps per Unit
MAC Address Table 32 K
Technical Info
Packet Forwarding Rate 95.2 Mpps
Packet Buffer Memory 3 MB
Jumbo Frame 9 KB
Stacking Stacking Number: 8<br> Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)<br> Stack Bandwidth: Up to 80 Gbps (4 stack ports)
Features
L2 and L2+ Features Link Aggregation<br> Spanning Tree Protocol<br> Port-based and VLAN-based Loopback Detection<br> 802.3x Flow Control<br> Supports 2,048 IGMP groups<br> ERPS<br> Mirroring<br> RSPAN<br> MAC Address Table<br> PIM-DM (IPv4)<br> Multicast<br> IGMP Snooping<br> MLD Snooping<br> L2 Multicast Table<br> Fast Leave<br> Multicast VLAN Registration (MVR)<br> Static Multicast IP<br> Multicast Filtering<br>
L3 Features IP Interfaces:<br> IPv4: Max 256, IPv6: Max 256<br> Static Routing<br> Max 1,024, IPv6: Max 512<br> Host Route Table: Max 6,100 entries<br> RIP: Version v1/v2, Max 8,190<br> OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097<br> VRRP: Version v2/v3, Max 64 groups ECMP: 256 entries, max 32 ECMP Nexthops per Destination<br> Static ARP: 512 static entries<br> Dynamic ARP: 7,680 dynamic entries<br> Proxy ARP<br> DHCP Server:<br> Max 8K IP Pools<br> Max 1,000 Manual Binding Entries<br> DHCP Relay:<br> Relayed Interface<br> Relayed VLAN
Management Features
Centralized Management Omada Cloud-Based Controller<br> • Omada Hardware Controller<br> • Omada Software Controller
Cloud Access Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Management Features Web-based GUI<br> Command Line Interface (CLI) through console port, telnet<br> SNMPv1/v2c/v3<br> Trap/Inform<br> RMON (1, 2, 3, 9 groups)<br> SDM Template<br> DHCP/BOOTP Client<br> 802.1ab LLDP/LLDP-MED<br> DHCP Auto Install<br> Dual Image, Dual Configuration<br> CPU Monitoring<br> Cable Diagnostics<br> Password Recovery<br> SNTP<br> System Log<br> EEE
Physical Specification
Package Contents SG6428X Switch<br> 2× Power Cords<br> RJ45 Console Cable<br> Quick Installation Guide<br> Rackmount Kit<br> Rubber Feet
Dimension 440 × 380 × 44 mm
Requirement
System Requierment Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Warranty Information
Warranty 2 Years Warranty
Power Type
Power Supply Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)
Fan / Cooling System
Number Of Fans Four Internal Fixed Fans
General Information
App Controlled Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller

TP-Link SG6428X Omada 24 Port Gigabit Stackable L3 Managed Switch With 4 10G Slots

The **TP-Link SG6428X-O Mada** is a high-performance, 24-port Gigabit **Layer 3 Managed Switch** designed for businesses that demand advanced performance, scalability, and reliability. Featuring **24 auto-sensing 10/100/1000 Mbps Ethernet ports** and **four 10G SFP+ uplink slots**, this switch delivers lightning-fast connectivity and seamless integration into high-speed backbone or data center environments. Its **stackable design** allows multiple units to be managed as a single entity, offering flexible expansion for growing networks.
Equipped with robust **Layer 3 routing capabilities**, the SG6428X-O supports static routing, OSPF, RIP, and VLAN routing, enabling efficient traffic management across subnets. Advanced QoS, IGMP Snooping, and DiffServ ensure optimized bandwidth allocation, making it ideal for handling voice, video, and mission-critical data traffic.
Security is enhanced with features such as **Access Control Lists (ACLs)**, **802.1X port-based authentication**, **Radius/Tacacs+ server integration**, and **DoS prevention**, ensuring enterprise-grade network protection. The switch also supports **SNMP**, CLI, and web-based management interfaces for detailed monitoring and control.
Built with a **high-quality metal chassis** and **dual redundant power supplies**, the SG6428X-O guarantees uninterrupted operation in demanding environments. Its energy-efficient design minimizes power consumption ensuring optimal.
Perfect for medium-to-large enterprises, campuses, or service providers, the **TP-Link SG6428X-O Mada** offers a powerful combination of speed, intelligence, and scalability. Whether used as a core switch or for high-density access layer deployment, this L3 managed switch delivers the performance and reliability required for modern, high-demand networks—all backed by TP-Link’s trusted engineering and 2-year warranty support.
