Price: 42,700.00৳
Regular Price: 45,900.00৳
Save: 3,200.00৳
TP-Link SG3428XF Omada 24 Port SFP L2+ Managed Switch With 4 10GE SFP+ Slots
| Network Switch |
| Rack Mountable |
| 24 Port |
| 20× Gigabit SFP Slots 4× Gigabit Combo SFP/RJ45 Ports 4× 10G SFP+ Slots 1× RJ45 Console Port 1× Micro-USB Console Port |
| 128 Gbps |
| 16 K |
| 95.23 Mpps |
| 12 Mbit |
| 9 KB |
| • 128 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 48 IPv4/IPv6 Static Routes • Static ARP: 128 static entries • 512 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring |
| • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| • Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log |
| • SG3428XF Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| 440×220×44 mm |
| Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| 2 Years Warranty |
| Dual Redundant Power Supplies 100-240 V AC~50/60 Hz |
| 1 Fan |
| • Supports 1000 (IPv4, IPv6) IGMP groups • IGMP Snooping • IGMP Authentication • Multicast VLAN Registration (MVR) • MLD Snooping • Multicast Filtering: 256 profiles and 16 entries per profile |

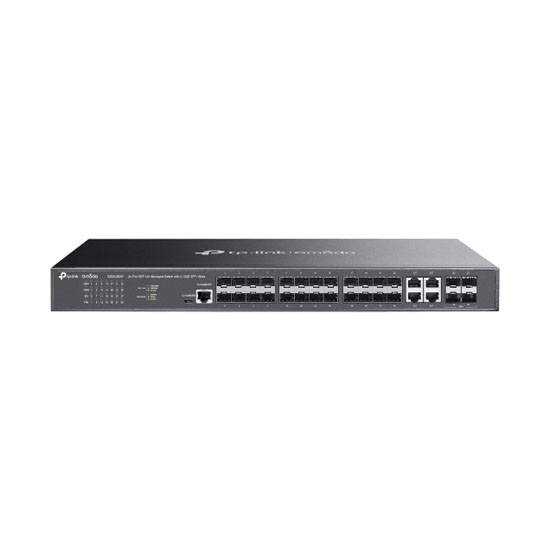

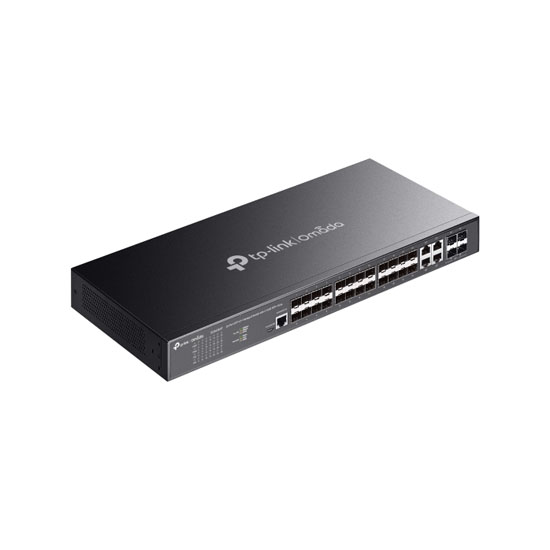

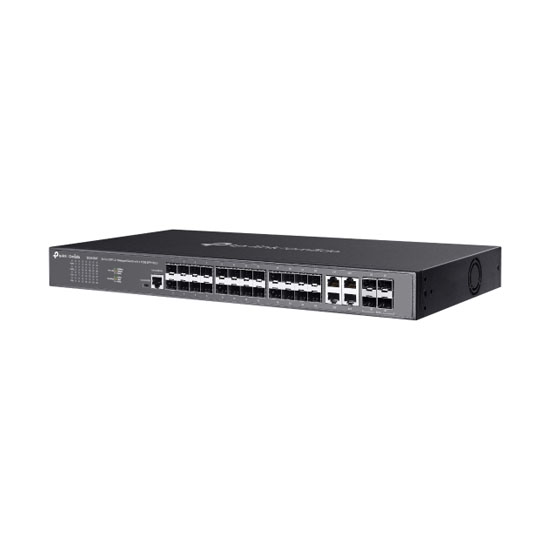

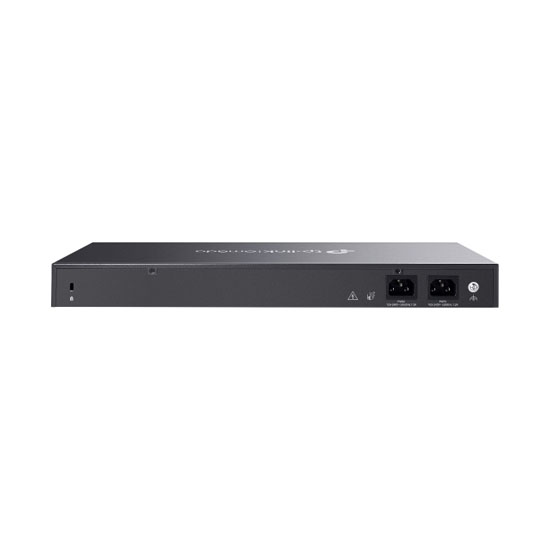

TP-Link SG3428XF Omada 24 Port SFP L2+ Managed Switch With 4 10GE SFP+ Slots
The TP-Link SG3428XF Omada 24 Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots is a high-performance networking solution designed for businesses that demand reliable, high-speed fiber connectivity and scalable network architecture. Featuring 24 Gigabit SFP ports (supporting 100/1000Mbps) and four 10G SFP+ uplink slots , this switch offers exceptional flexibility for long-distance data transmission and seamless integration into high-bandwidth environments such as enterprise networks, surveillance systems, and campus infrastructures.
Powered by advanced Layer 2+ switching features , the SG3428XF enables efficient traffic management through static VLANs , QoS prioritization , LACP link aggregation , and IGMP Snooping , ensuring optimal performance across voice, video, and data applications. It also includes robust security tools like Access Control Lists (ACLs) , port-based authentication (802.1X) , Radius integration , and DoS attack prevention , providing comprehensive protection against unauthorized access and potential network threats.
Designed for durability and efficiency, the switch comes in a sturdy metal chassis with fanless or intelligent fan cooling , making it ideal for noise-sensitive environments while maintaining stable operation under heavy workloads. Its energy-efficient design helps reduce power consumption, supporting eco-friendly and cost-effective network operations.
The SG3428XF seamlessly integrates with the Omada Software-Defined Networking (SDN) platform , allowing for centralized cloud-based management of multiple devices across different locations. It also supports web-based GUI , CLI , and SNMP monitoring , offering flexible configuration and real-time control.
Whether you're deploying a secure fiber backbone, expanding an IP surveillance system, or building a resilient enterprise network, the TP-Link SG3428XF Omada delivers the speed, scalability, and intelligent management needed to support modern business demands—all backed by a 2-year warranty.
