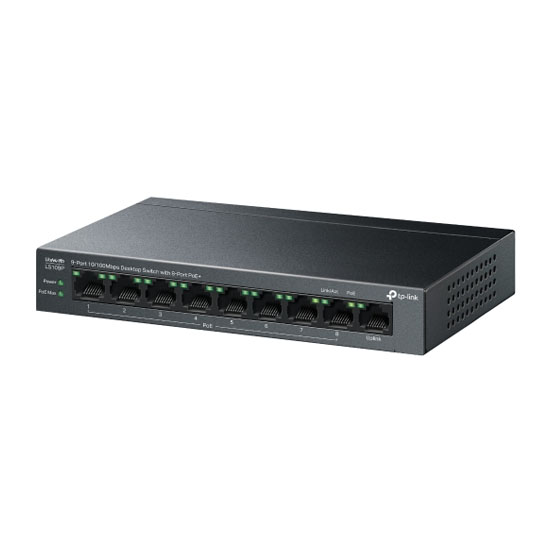

TP-Link LS109P 9 Port 10/100Mbps Desktop Switch With 8 Port PoE+

TP-Link LS109P 9 Port 10/100Mbps Desktop Switch With 8 Port PoE+

Model: LS109P

Reviews: No reviews yet

Price: 2,640.00৳

Regular Price: 3,190.00৳

Save: 550.00৳

Key Features:

  • Product Type: Network Switch
  • Number Of Total Port: 9 Port
  • Switching Capacity: 1.8 Gbps
  • Packet Forwarding Rate: 1.3392 Mpps
  • Warranty: 2 Years Warranty
Buy Now

Specifications

Basic Information

Product Type Network Switch
Mounting Type Rack Mountable

Ports & Slots

Number Of Total Port 9 Port
Interface(s) 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports)
• AUTO Negotiation
• AUTO MDI/MDIX
PoE Ports (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8, up to 30 W PoE output per port
• Power Supply: 63 W

Networking & Connectivity

Switching Capacity 1.8 Gbps
MAC Address Table 2K

Technical Info

Packet Forwarding Rate 1.3392 Mpps
Jumbo Frame 1.5 KB
Transmission Method Store and Forward

Physical Specification

Package Contents • LS109P
• Power Adapter
• Installation Guide
• Rubber Feet
Dimension 171×98×27 mm

Requirement

System Requierment Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Warranty Information

Warranty 2 Years Warranty

Power Type

Power Supply External Power Adapter (Output: 53.5VDC / 1.31A)
Max Power Consumption • 3.67 W (220 V/50 Hz no PD connected)
• 73.24 W (220 V/50 Hz with 63 W PD connected)
Max Heat Dissipation • 12.48 BTU/h (220 V/50 Hz no PD connected)
• 249 BTU/h (220 V/50 Hz with 63 W PD connected)

Description

TP-Link LS109P 9 Port 10/100Mbps Desktop Switch With 8 Port PoE+

The TP-Link LS1210GP is a high-performance 10-port Gigabit Ethernet switch engineered to meet the demands of modern small and medium-sized businesses. Designed with 8 PoE+ ports delivering up to 125W of total power , it provides ample connectivity and power for devices like IP cameras, wireless access points, and VoIP phones—all through a single Ethernet cable.
Each of the 10 RJ45 ports supports auto-negotiating Gigabit speeds , ensuring fast and stable data transfer across your network. The integrated PoE+ technology (IEEE 802.3at/af) delivers up to 30W per port , making it ideal for powering high-demand devices such as PTZ security cameras or dual-band Wi-Fi access points—without the need for additional power outlets.
Equipped with a user-friendly web interface , the LS1210GP offers advanced management features including VLAN segmentation, QoS prioritization, Link Aggregation, and IGMP Snooping , giving you full control over your network traffic and performance. Enhanced security features like port isolation, rate limiting, and MAC address filtering help protect your network from unauthorized access.
This fanless switch operates quietly and efficiently , making it suitable for office environments where noise levels matter. Its compact desktop design and durable plastic housing allow for flexible placement on a shelf, desk, or mounted discreetly behind a monitor.
With built-in surge protection and energy-efficient operation , the LS1210GP ensures reliable and safe performance for both the switch and connected devices. Whether expanding a business network, setting up a surveillance system, or deploying a VoIP solution, this switch combines power, speed, and smart management in one sleek package.
Perfect for professionals seeking a powerful yet easy-to-manage networking solution, the TP-Link LS1210GP brings scalability, performance, and intelligent PoE+ capabilities together in a compact, cost-effective design.
