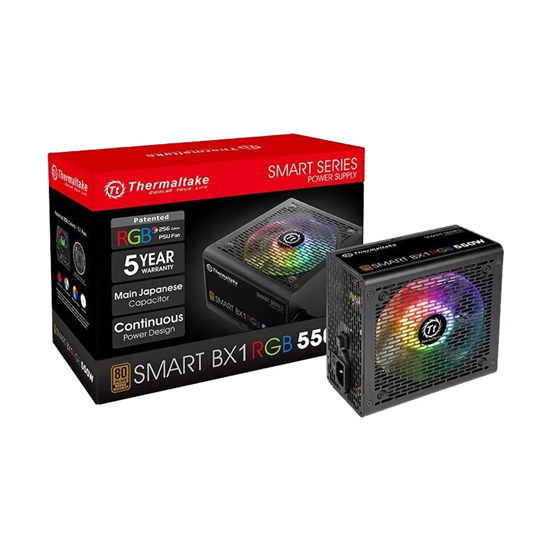

Thermaltake Smart BX1 550W Non Modular 80 Plus Bronze Black Power Supply

Thermaltake Smart BX1 550W Non Modular 80 Plus Bronze Black Power Supply

Model: Smart BX1 550W

Reviews: No reviews yet

Price: 5,490.00৳

Regular Price: 5,860.00৳

Save: 370.00৳

Key Features:

  • Product Type: ATX Power Supply
  • Lighting Effect: RGB
  • Maximum Power: 550 Watt
  • Color: Black
  • Manufacturing Warranty: 5 Year

Specifications

Basic Information

Product Type ATX Power Supply
PSU Category Non Modular

Fan / Cooling System

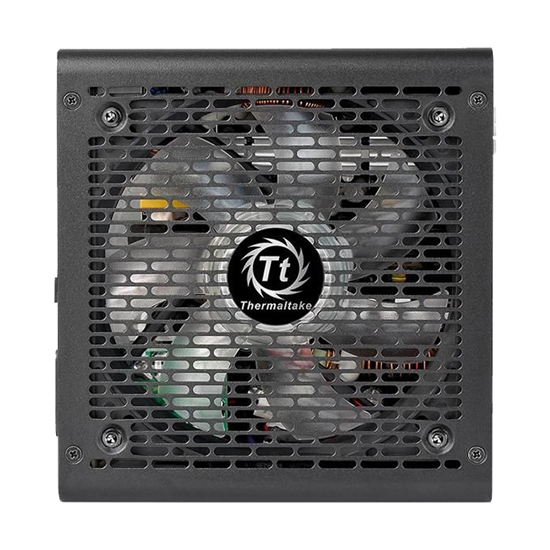

Fan Size 120mm
Fan Bearing Hydraulic Bearing
Cooling System 12cm Fan Hub

General Information

Lighting Effect RGB

Performance

Efficiency 85% Efficiency
Efficiency Rating 80 Plus Bronze
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 ms
Hold Up Time >16msec at 70% of full load

Protection

Over Voltage Protection (OVP) Yes

Ports & Slots

ATX Main Connectors 1
EPS Connectors 1
PCIe Connectors 2
SATA Power Connectors 6
4-Pin Peripheral Connectors 4
Floppy Connectors 1

Power Type

Min. Power (Approx.) 465W
Maximum Power 550 Watt
Input Voltage 230V
Input Frequency Range 50Hz
Input Current 10A
Peak Output Capacity 660W

Environmental

Storing/Storage Humidity 10% To 95% Non Condensing

Physical Specification

Color Black
Form Factor ATX
Dimension 150 x 86 x 140mm

Technical Info

MTBF 100,000 Hours

Additional Info / Features

Regulatory / Safety Approval CE, CB, TUV, UL, FCC, BSMI
Specialty Preinstalled Are 10 RGB LEDs, A 120mm Hydraulic Bearing Fan That Is Incredibly Quiet, Has A Ripple Noise Of Less Than 80 mV, A High-Quality Japanese Main Capacitor, Is 80 PLUS 230V Bronze Certified, And Is Intel C6/C7 States Ready

Warranty Information

Manufacturing Warranty 5 Year

Description

The Thermaltake Smart BX1 550W Non Modular 80 Plus Bronze Power Supply is a reliable and efficient unit, crafted to provide stable power to your computer. It boasts an 80 PLUS Bronze certification, signifying energy efficiency and reduced electricity waste, thus being an eco-friendly option. Equipped with a 120mm silent fan, it operates quietly, minimizing noise even during high-load operations. The power supply features active power factor correction (PFC) to boost efficiency and diminish electrical noise. It also offers superior temperature resistance, ensuring effective operation across diverse conditions. The Thermaltake Smart BX1 can support a broad array of components, including 127 types of USB devices. Its peak power tolerance guarantees consistent performance through intensive tasks, and its average efficiency above 80% helps in reducing energy loss. Encased in a durable metal shell and equipped with extensive protection features like over voltage (OVP), over current (OCP), short circuit (SCP), and under voltage (UVP) protections, it ensures safe power delivery and protects your system from electrical irregularities. In summary, the Thermaltake Smart BX1 550W Non Modular 80 Plus Bronze Power Supply stands out as a solid and efficient choice for powering your computer system.
