Product Image
1 / 4

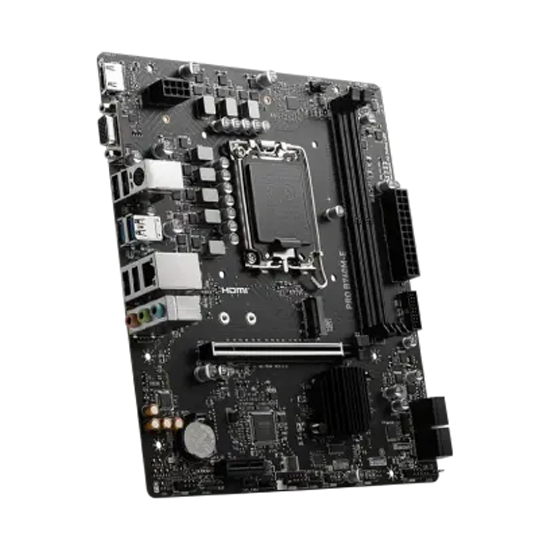

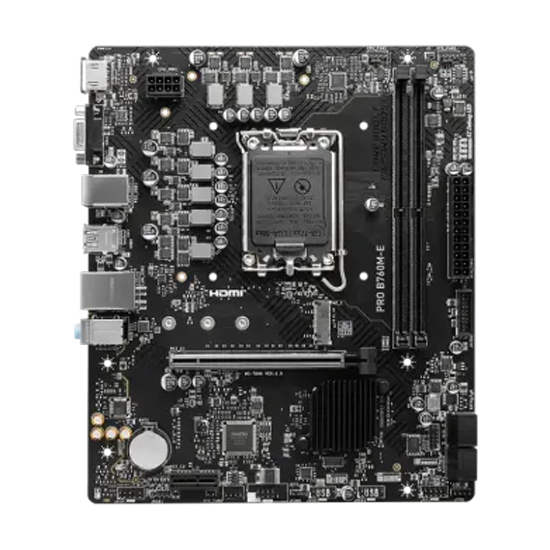

MSI PRO B760M-E DDR5 m-ATX Intel Motherboard
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4

MSI PRO B760M-E DDR5 m-ATX Intel Motherboard

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: Msi
৳12800 ৳14400 Save 11%

Key Features

  • Chipset: INTEL B760
  • Supported CPU: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
  • Memory Type: DDR5
  • Form Factor: mATX
    200mmx236.16mm
  • Slots: 2x DIMM
  • Maximum Memory: 96GB
CPU
Chipset INTEL B760
Sockets Supported 1x M.2
Supported CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Memory
Memory Type DDR5
Supported Memory Memory Support DDR5 6400+(OC)/
6200(OC)/ 6000(OC)/
5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/
5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 5600+ MHz
Maximum Memory 96GB
Graphics
Graphics 1x HDMI
Support HDMI 1.4 with HDR,
maximum resolution of 4K 30Hz*
1x VGA
Physical Specification
Form Factor mATX
200mmx236.16mm
Audio Sound & Microphone
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Ports & Slots
PCI-E 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Slots 2x DIMM
HDMI 1x HDMI 1.4

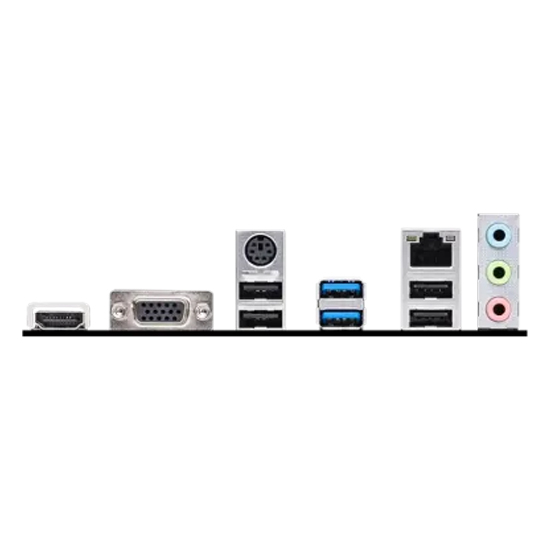

USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
RJ45 (LAN Port) Realtek RTL8111H Gigabit LAN
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
Storage
Storage 1x M.2
M.2_1 Source (From Chipset)
supports up to PCIe 4.0 x4 / SATA mode, supports
2280/2260/2242 devices
4x SATA 6G
RAID
RAID Type Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Security
TPM 1x TPM pin header(Support TPM 2.0)
Warranty Information
Warranty 3 Year Warranty

MSI PRO B760M-E DDR5 m-ATX Intel Motherboard

The MSI PRO B760M-E DDR5 is a well-rounded micro-ATX motherboard built to support Intel’s modern LGA 1700 CPUs, making it a strong choice for compact gaming systems, productivity builds, and efficient workstations. Featuring the B760 chipset, this board offers a reliable and performance-oriented foundation without unnecessary frills, ensuring stability and value for users who need dependable functionality in a smaller footprint.
Memory performance is a highlight: the board supports DDR5 RAM through its two DIMM slots, unlocking higher frequencies and greater bandwidth compared to previous-generation memory. Whether you're multitasking, content-creating, or gaming, the fast DDR5 support ensures responsive operation, and the dual-channel configuration allows for smooth data throughput.
Power delivery is carefully engineered with a robust VRM setup and a dedicated heatsink that ensures temperature control even under sustained loads. This stable design helps maintain system reliability when the CPU is pushed hard—ideal for workloads that demand consistency.
For expansion, the PRO B760M-E DDR5 includes a PCIe 4.0 x16 slot, ready for powerful graphics cards, and a PCIe x1 slot for peripherals such as sound cards or network adapters. On the storage front, it offers an M.2 connector for high-speed NVMe SSDs as well as multiple SATA ports for standard drives, giving you flexibility to build a storage configuration tailored to your needs.
Connectivity is comprehensive: the motherboard features multiple USB ports—both modern Type-A and legacy—so you can plug in a wide range of devices. It also incorporates a Gigabit Ethernet port for stable wired networking, making it ideal for gaming or productivity scenarios. In addition, there are several fan headers for efficient cooling and airflow management in compact cases.
Practical features include onboard diagnostic LEDs, which help you quickly identify issues during setup, and a BIOS flash function that allows you to update the firmware even without a CPU installed. Built with quality and endurance in mind, the MSI PRO B760M-E DDR5 delivers a compact yet powerful platform—perfect for those who demand modern performance in a space-saving design.
