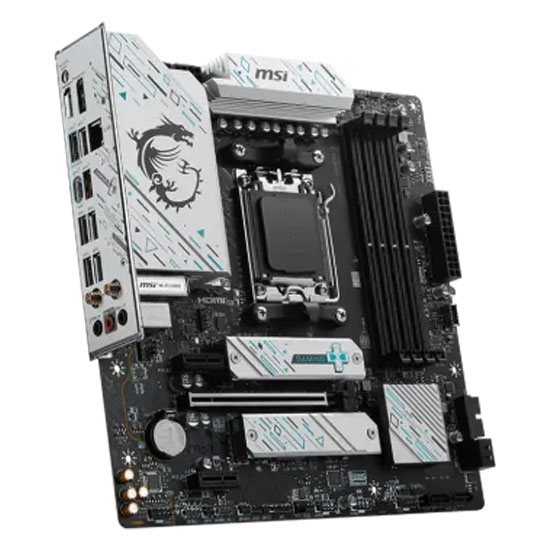

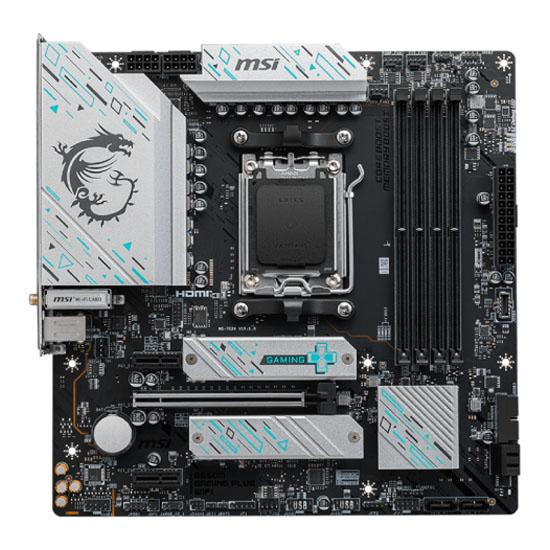

MSI B650M GAMING Plus WIFI AMD AM5 mATX Motherboard
Thumbnail 1 Thumbnail 2 Thumbnail 3

MSI B650M GAMING Plus WIFI AMD AM5 mATX Motherboard

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: Msi
৳20,900 ৳24,500 Save 15%

Key Features

  • Supported CPU: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
  • Chipset: AMD B650
  • Form Factor: mATX 243.84mmx243.84mm
  • Audio: Realtek ALC897 Codec 7.1-Channel High Definition Audio
  • Maximum Memory: 256GB
  • TPM Port: 1x TPM pin header(Support TPM 2.0)
CPU
Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset AMD B650
Physical Specification
Form Factor mATX 243.84mmx243.84mm
HDMI 1x HDMI
Audio Sound & Microphone
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio
Ports & Slots
PCI Slot 1x PCI-E x16 slot • Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor) 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Slots 4x UDIMM
Display Port 1x DisplayPort
USB 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
Ethernet (LAN Port) Realtek RTL8125BG 2.5Gbps LAN
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM Port 1x TPM pin header(Support TPM 2.0)
Basic Information
Type DDR5
Special Features 4x EZ Debug LED
Memory
Supported Memory Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz
Maximum Memory 256GB
Graphics
Graphics Support HDMI 2.1, maximum resolution of 4K 60Hz Support DP 1.4, the maximum resolution of 4K 60Hz
Storage
Supported SSD Type 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
Technical Info
Raid Support Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 NVMe storage devices
Warranty Information
Warranty 3 Years Warranty

MSI B650M GAMING Plus WIFI AMD AM5 mATX Motherboard

The MSI B650M GAMING Plus WIFI is a powerful and feature-rich micro-ATX motherboard designed for the latest AMD AM5 platform, supporting Ryzen 7000 series processors and future-ready DDR5 memory. Built on the B650 chipset, this board delivers excellent performance for gaming, content creation, and everyday computing, combining modern technology with smart design in a compact form factor.
One of the standout features is native PCIe 5.0 support, offering double the bandwidth of PCIe 4.0 for next-gen graphics cards and ultra-fast M.2 SSDs. The motherboard includes a PCIe 5.0 x16 slot for the GPU and an M.2 slot with PCIe 5.0 x4 support, enabling blazing-fast storage speeds up to 128 Gb/s—ideal for reducing load times and enhancing system responsiveness.
Dual-channel DDR5 memory support ensures high-speed performance with data rates up to 7200+(OC) MHz, while the enhanced power delivery system provides stable and efficient power to handle demanding CPUs. The board also features integrated Wi-Fi 6E and Gigabit LAN for ultra-fast, reliable wireless and wired connectivity, perfect for online gaming and streaming.
MSI’s user-friendly BIOS interface allows for easy system tuning, and the convenient BIOS Flashback feature enables UEFI updates without needing a CPU, GPU, or memory installed—ensuring compatibility with future processors right out of the box.
Additional features include multiple USB ports (including USB 3.2 Gen 2x2), HD audio with noise shielding, and a durable build using high-quality components for long-term reliability. With its robust feature set, compact mATX size, and support for the latest AMD innovations, the MSI B650M GAMING Plus WIFI is an ideal choice for building a high-performance, future-proof AMD AM5 system on a budget.
