Price: 8,200.00৳
Regular Price: 9,700.00৳
Save: 1,500.00৳

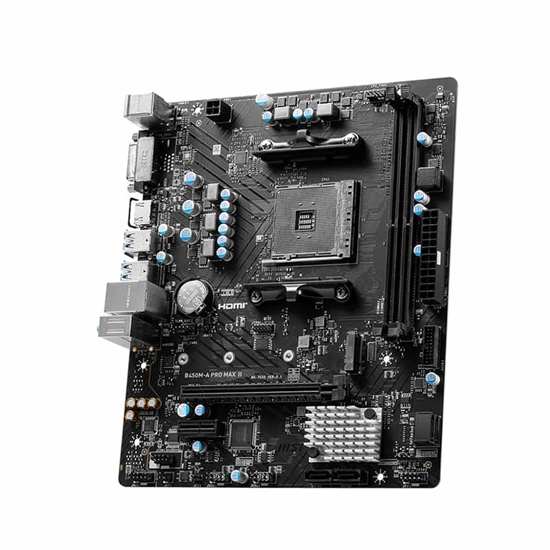

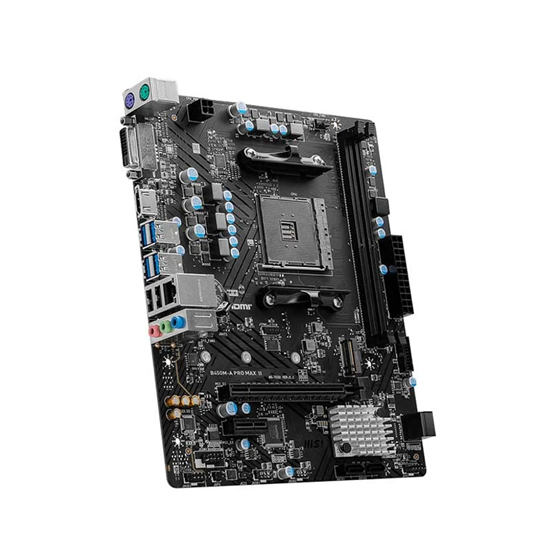

MSI B450M-A PRO MAX II DDR4 AMD AM4 Motherboard
Body Color | Black |
Form Factor | Micro-ATX |
Chipset Brand | AMD |
Chipset | AMD B450 |
Sockets Supported | AM4 |
Supported CPU | AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon with Radeon Vega Graphics desktop processors |
Memory Type | DDR4 |
Memory MHz | 4133/ 4000/ 3866/ 3800/ 3733/ 3600/ 3466/ 3400/ 3333/ 3200/ 3000/ 2933/ 2800/ 2667MHz ECC, non-ECC & un-buffered memory |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Slot (Additional Info) | 2 x UDIMM |
Memory Max. | 64GB |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 1 |
M.2/SSD Expansion Slot Details | 1 x M.2 Slot type 2280/2260/2242 ) supports up to PCIe 3.0 x4 / SATA mode |
Graphics | Integrated |
Graphics Chipset | Integrated With Processor |
PCI Express Slot | 1 x PCI-E x16 slot, 1 x PCI-E x1 slot |
Audio Chipset | Realtek ALC897 Codec |
Audio Channel | 7.1 |
LAN Chipset | Realtek 8125 2.5Gbps LAN controller |
LAN Speed (Mbps) | 10/100/1000/2500Mbps |
USB Port | 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
DVI Port | 1 |
HDMI Port | 1 |
SATA Port | 4 x SATA |
TPM Port | 1 |
COM Port | 1 |
Cable Management | Front |
Heatsink | Yes |
Raid Support | 0, 1, 10 |
Approx Power Consumption | 60W |
Supported Operating System | Windows 10 / 11 |
Compatible Products | Compatible with AM4 Sockets AMD Ryzen 5000 G-Series / 5000 Series Processors/ 4000 G-Series / 3000 Series Processors |
Manufacturing Warranty | 03 Years Warranty |

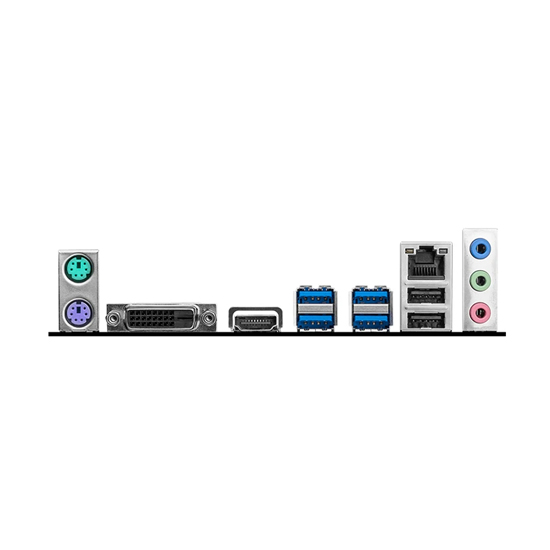

The MSI B450-A PRO MAX II DDR4 AMD AM4 Motherboard is specifically designed for gamers and enthusiasts. It is compatible with AMD Ryzen 500 Series, 5000 G-Series, 4000 G-Series, 300 Series, 3000 G-Series, 0 Series, 2000 G-Series, and 0 Series Desktop Processors utilizing the AMD B450 chipset and AM4 socket. This features dual-channel DDR4 memory support, with speeds reaching up to 4133 (O.C.) MHz and a maximum capacity of 64GB of RAM distributed across two memory slots. For storage, it includes one M.2 slotSocket 3 M key, type 2280/2260/2242) that supports PCI 3.0 x4 mode, alongside four SATA 6Gb/s ports, thereby providing ample options for both traditional and modern storage solutions. Network connectivity facilitated by Realtek RTL8111H Gigabit LAN, ensuring stable and smooth internet performance. The audio experience is further enhanced by the Realtek ALC897 Audio Codec, delivering high-quality sound for entertainment purposes. The back panel I ports comprise one VGA port, one DVI-D port, one HDMI port, two USB 3.2 Gen ports, four USB 20 ports, and three audio j (Mic in, Line Out, Line In). Expansion capabilities supported through one PCIe 3.016 slot and one PCIe 3.0 x1 slot, allowing for the addition of extra hardware. With its micro-ATX form factor (22.6 cm x 22.1 cm), this motherboard is ideal for compact PC builds and includes mounting holes for secure installation. Additionally, the motherboard is backed by a 3-year warranty, ensuring reliability and peace of mind.
