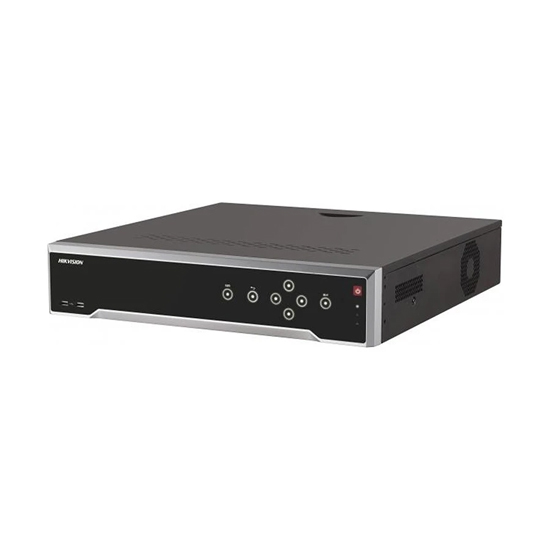

Hikvision DS-8664NXI-I8/S 64-ch 2U 4K AcuSense NVR
Thumbnail 1 Thumbnail 2

Hikvision DS-8664NXI-I8/S 64-ch 2U 4K AcuSense NVR

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: Hikvision
৳76,880 ৳80,550 Save 5%

Key Features

  • IP Video Input: 64-ch
  • Incoming Bandwidth: 384 Mbps
  • Outgoing Bandwidth: 256 Mbps
  • Remote Connection: 128
  • SATA: 8 SATA interfaces
  • Power Consumption: ≤ 30 W (without HDD)
Intelligent Analytics
AI by NVR Facial recognition, perimeter protection, motion detection 2.0
AI by Camera Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
Engine 1, engine mode is adjustable
Facial Recognition
Facial Detection and Analytics Face picture comparison, human face capture, face picture search
Face Picture Comparison (Captured from Camera) 8-ch
Facial Detection and Analytics Performance Facial Detection and Analytics Performance
Motion Detection 2.0
By NVR All channels for Hikvision cameras
By Camera All channels
Perimeter Protection
By NVR 4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;<br>Up to 12 rules in total
By Camera All channels
ANPR
By Camera All channels
Vehicle Attributes Plate number, license plate color, license plate type
Plate Attributes Vehicle brand, vehicle color, vehicle type
Audio and Video
IP Video Input 64-ch
Incoming Bandwidth 384 Mbps
Outgoing Bandwidth 256 Mbps
HDMI 1 Output 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
HDMI 2 Output 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA 1 Output 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA 2 Output 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Video Output Mode HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output,HDMI1/HDMI2 independent output
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output 2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Decoding
Decoding Format H.265+/H.265/H.264+/H.264
Recording Resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF<br>*: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs.
Synchronous Playback 16-ch
Live View Window Division 1/2/4/6/8/9/16/25/32/36/64
Aux Port Window Division 1/2/4/6/8/9/16/25/32/36
Decoding Capability Enable AI by NVR: 20-ch@1080p (30 fps)<br>Disable AI by NVR: 32-ch@1080p (30 fps)
Dual-Stream Recording Support
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Network
Network Interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Remote Connection 128
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
API ONVIF (profile S/G); SDK; ISAPI
Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Camera Access Protocol ONVIF(Version 2.5), RTSP
RAID
RAID Type RAID0, RAID1, RAID5, RAID6, RAID10 Support global hot spare
Auxiliary Interface
Serial Interface 1 RS-485 (full-duplex), 1 RS-232
SATA 8 SATA interfaces
Capacity Up to 16 TB capacity for each disk
ESATA 1 eSATA interface
Alarm In/Out 16/9
USB Interface Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
Power Type
Power Supply 100 to 240 VAC, 50 to 60 Hz
Power Consumption ≤ 30 W (without HDD)
Environmental
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Physical Specification
Chassis 2U chassis
Dimension 440 × 457 × 94 mm ( 17.4"× 18.0" × 3.7")
Weight ≤ 7.1 kg (without HDD, 15.7 lb.)
Certification
Obtained Certification CE, CB, REACH, WEEE, UKCA, LOA
CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Warranty Information
Warranty Details 1 Year

Hikvision DS-8664NXI-I8/S 64-ch 2U 4K AcuSense NVR

Enhance your surveillance system with the Hikvision DS-8664NXI-I8/S 64-channel 2U 4K AcuSense NVR. This powerful network video recorder supports up to 64 IP cameras and delivers 4K resolution for unparalleled video quality. Equipped with H.265+ and H.264+ video formats, it ensures efficient storage and high-quality footage.

Key Features:

High-Resolution Video: Supports 4K (3840 x 2160) resolution for crystal-clear images.

Intelligent Analytics: Utilizes deep learning algorithms for advanced features like facial recognition, perimeter protection, and motion detection.

Facial Recognition: Up to 8-ch facial recognition for video streams and up to 32-ch facial recognition for face pictures.

Multiple Video Outputs: HDMI, VGA, and CVBS outputs for flexible display options.

Audio Functionality: Built-in audio decoding and two-way audio for real-time communication.

Weather Resistance: IP67-rated for water and dust resistance, ensuring durability in harsh environments.

Large Storage Capacity: Supports RAID configurations (RAID0, RAID1, RAID5, RAID6, RAID10) and up to 16 TB capacity per disk.

Easy Installation: Compact 2U design for easy rack mounting and installation.

Ideal For:

Large-Scale Surveillance: Ideal for commercial properties, campuses, and large facilities requiring extensive coverage.

High-Security Areas: Perfect for critical infrastructure, government buildings, and high-security zones.

Retail and Hospitality: Enhance security and customer experience in retail stores, hotels, and restaurants.

Public Safety: Maintain public safety in parking lots, airports, and public spaces with robust surveillance.

With its advanced features and reliable performance, the Hikvision DS-8664NXI-I8/S 64-ch 2U 4K AcuSense NVR is an excellent choice for comprehensive surveillance needs.
