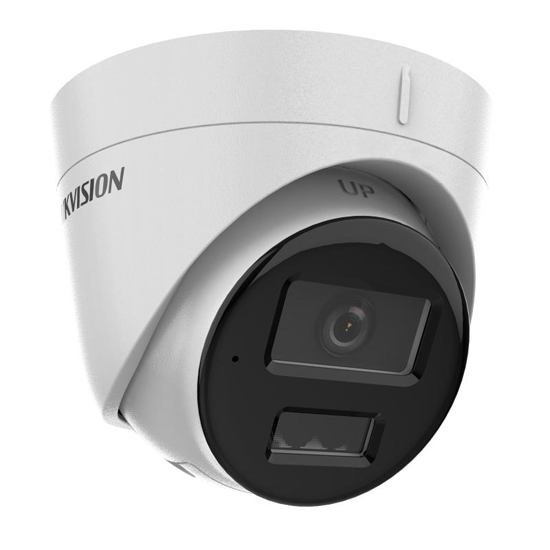

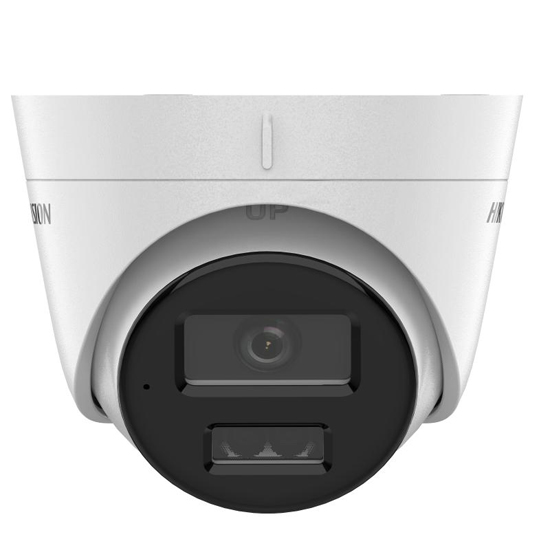

Hikvision DS-2CD1343G2-LIU 4 MP Smart Hybrid Light Fixed Turret Network Camera
Thumbnail 1 Thumbnail 2 Thumbnail 3

Hikvision DS-2CD1343G2-LIU 4 MP Smart Hybrid Light Fixed Turret Network Camera

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: Hikvision
৳4900 ৳5480 Save 11%

Key Features

  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2560 × 1440
  • Day & Night: IR cut filter
  • Material: Metal & Plastic
  • Protection: IP67: IEC 60529-2013
  • Warranty Details: 1 Year
Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
Lens Mount M12
Aperture F1.6
Focal Length Fixed
DORI Distance
DORI 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type IR,White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Region of Interest (ROI) 1 fixed region for main stream
Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host Up to 32 users
3 user levels: administrator, operator, and user
Client iVMS-4200,Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR) 120 dB
SNR Day,Night,Auto,Schedule
Day/Night Switch Day,Night,Auto,Schedule
Image Enhancement BLC,HLC,3D DNR
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone Yes
Reset Key -F: Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
Power Type
Power 12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
Physical Specification
Material Metal & Plastic
Dimension Ø110 mm × 89.2 mm (Ø4.3" × 3.5")
Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight Approx. 340 g (0.7 lb.)
With Package Weight Approx. 560 g (1.2 lb.)
Environmental
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Function
General Function Heartbeat,anti-banding,mirror,password protection,password reset via email
Approval
EMC FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
Safety UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
Warranty Information
Warranty Details 1 Year

The Hikvision DS-2CD13432-LIU is a 4-megapixel smart hybrid light fixed turret network camera designed for high-performance outdoor surveillance. It features a 4MP sensor that captures detailed and clear footage at a maximum resolution of 25601440 pixels. Even in difficult lighting situations with intense backlighting, the camera's wide dynamic range (WDR) of 120 dB ensures crisp imaging. The camera is weatherproof and may be used outside in a range of weather conditions, including rain, dust, and snow, thanks to its IP67 designation. It offers multi-signal compatibility switchable TVI, A, CVI, and CVBS video outputs, compatibility with different analog security. With a plastic and metal body, the camera measures 110 x 89.2 mm and weighs  grams, making it to install mount. It provides versatile connectivity options, an RJ45 Ethernet port and PoE (Power over Ethernet) support. the Hikvision-2CD134G2-LIU a reliable and feature surveillance camera, ideal for both residential and commercial needs.

Customer Reviews

0
☆ ☆ ☆ ☆ ☆
Based on 0 reviews

Write a Review

No reviews yet. Be the first to review this product!

Product Questions & Answers

Have a question about this product? Ask here and get answers from other customers or our team.

Ask a Question

No questions yet. Be the first to ask a question about this product!

Warranty Policy

The Hikvision DS-2CD1343G2-LIU comes with a 1-year warranty covering manufacturing defects and hardware failures under normal use conditions.

Return & Refund Policy

Returns are accepted within 7 days of purchase with proof of receipt. Items must be unused, unopened, and in original packaging. Defective products can be exchanged or refunded after inspection. Shipping costs for returns are non-refundable unless due to product defects. Contact customer service for assistance with your return. Terms and conditions apply.
