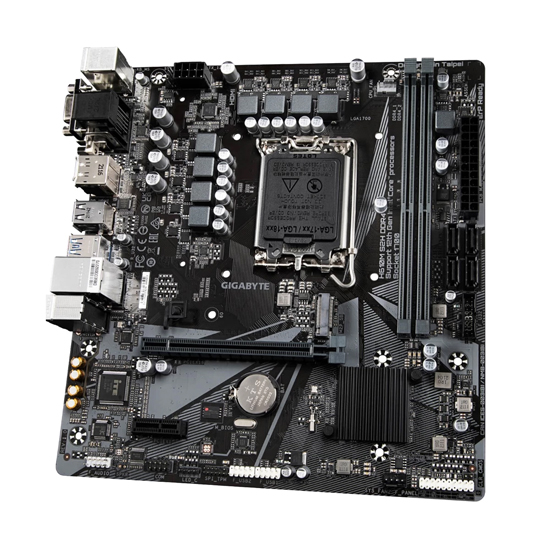

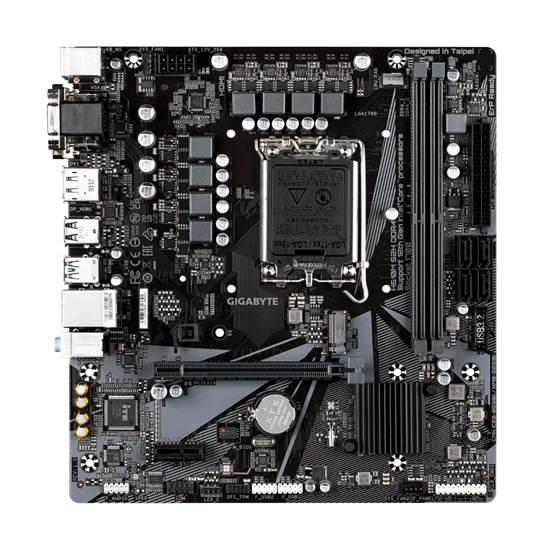

Gigabyte H610M S2H DDR4 Micro ATX Motherboard
Body Color | Black |
Form Factor | Micro-ATX |
Chipset Brand | Intel |
Chipset | Intel H610 |
Sockets Supported | LGA1700 |
Supported CPU | 12th, 13th & 14th Gen Intel Core, Pentium Gold, Celeron Processors |
Generation | 12th/13th/14th |
Memory Type | DDR4 |
Memory MHz | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Slot (Additional Info) | 2 x DIMM |
Memory Max. | 64GB |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 1 |
M.2/SSD Expansion Slot Details | 1 x M.2 (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD) |
Graphics | Integrated |
Graphics Chipset | Intel HD Graphics Support |
PCI Express Slot | 1 x PCI Express x16, 1 x PCI Express x1 |
Audio Chipset | Realtek Audio |
Audio Channel | 7.1 |
LAN Chipset | Realtek GbE LAN |
LAN Speed (Mbps) | 10/100/1000 Mb/s |
USB Port | 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
VGA Port | 1 |
DVI Port | 1 |
HDMI Port | 1 |
DisplayPort (DP) | 1 |
SATA Port | 4 x SATA |
TPM Port | Yes |
Cable Management | Front |
RGB Support | RGB |
RGB Connector | 1 x RGB LED Strip Header |
Approx Power Consumption | 60W |
BIOS Type | 1 x 256 Mbit Flash |
BIOS Model | AMI UEFI BIOS |
BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Supported Operating System | Windows 11 and 10 |

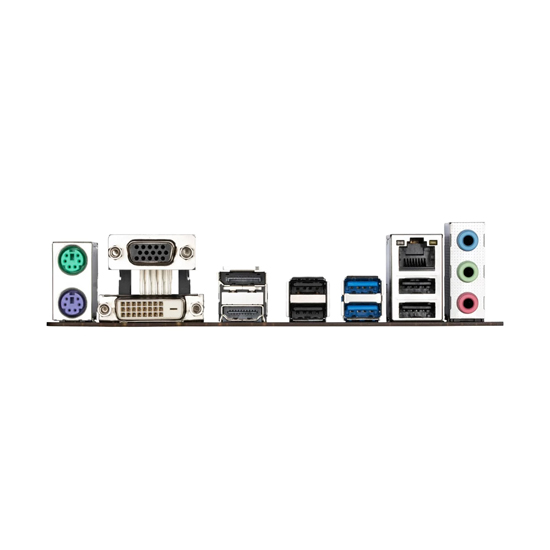

Others | Back Panel Connectors: 1 x PS/2 Keyboard Port, 1 x PS/2 Mouse Port, 1 x RJ-45 Port, 3 x Audio Jacks, H/W Monitoring: Voltage Detection, Temperature Detection, Fan Speed Detection, Overheating Warning, Fan Fail Warning, Fan Speed Control |
Manufacturing Warranty | 3 Years |
The GIGABYTE H610M S2H DDR4 Micro-ATX Motherboard is engineered for gamers and professionals. It is compatible with Intel's 12th, 13th, and 14th Generation Core Processors, as well as Pentium Gold and Celeron Processors, utilizing the Intel H610 chipset. This motherboard supports dual-channel DDR4 memory, with speeds reaching up to 3200 MHz and a capacity of up to 64GB across two memory slots. In terms of storage, it includes one M.2 slot (Socket 3, M key, type 2280) that supports PCIe .0 x4 mode, along with four SATA 6Gb/s ports, providing extensive options for both traditional and modern storage solutions. Network connectivity is facilitated by Realtek RTL8111H Gigabit LAN, ensuring stable and smooth internet performance. The audio experience is enhanced by the Realtek ALC897 Audio Codec, delivering high-quality sound for entertainment needs. The back panel I/O ports comprise one HDMI port, one VGA port, USB 2.0 ports two USB 3. Gen1 ports and three audio jacks, including Mic In, Line Out, and Line In. For expansion, it features one PCIe 4.0 x16 slot and one PCIe 3. x1 slot, accommodating additional hardware components. With a micro-ATX form factor (23.0 cm x 21.5 cm), this motherboard is ideal for compact PC builds, and it includes six mounting holes for secure installation. Additionally, it is supported by a 3-year warranty, ensuring reliability and peace of mind.
