Price: 9,600.00৳
Regular Price: 10,300.00৳
Save: 700.00৳

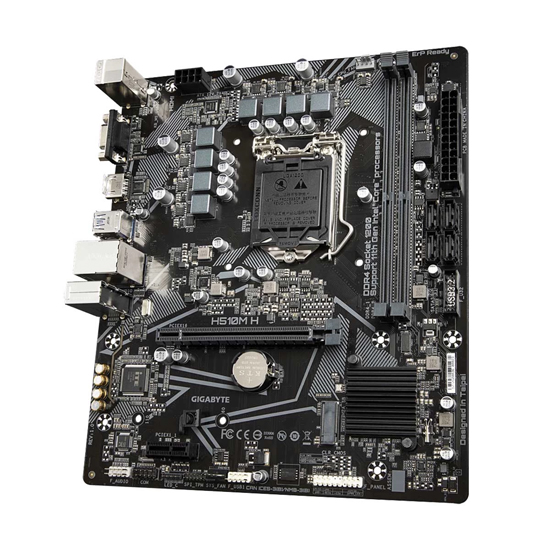

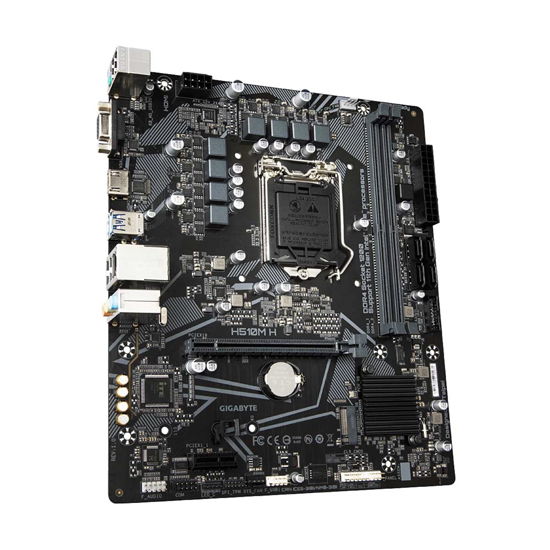

Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard
Body Color | Black |
Form Factor | Micro-ATX |
Chipset Brand | Intel |
Chipset | Intel H510 |
Sockets Supported | LGA1200 |
Supported CPU | Core i9, i7, i5, i3, Pentium, Celeron processors |
Generation | 10th/11th |
Memory Type | DDR4 |
Memory MHz | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Slot (Additional Info) | 2 x DIMM |
Memory Max. | 64GB |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 1 |
M.2/SSD Expansion Slot Details | 1 x M.2, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD |
Graphics | Integrated |
Graphics Chipset | Intel HD Graphics support |
PCI Express Slot | 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x1 slot (PCIEX1) |
Audio Chipset | Realtek Audio CODEC |
Audio Channel | 2/4/5.1/7.1 |
LAN Chipset | Realtek GbE LAN |
LAN Speed (Mbps) | 10/100/1000 Mb/s |
USB Port | 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 |
VGA Port | 1 |
HDMI Port | 1 |
SATA Port | 4 |
TPM Port | Yes |
Cable Management | Front |
RGB Support | RGB |
RGB Connector | 1 x RGB LED strip header |
Approx Power Consumption | 60W |
BIOS Type | 1 x 256 Mbit flash |
BIOS Model | AMI UEFI BIOS |
BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Supported Operating System | Windows 10, 11 |
Compatible Products | LGA1200 Socket 10th & 11th Gen Intel Processor |
Manufacturing Warranty | 3 Years |

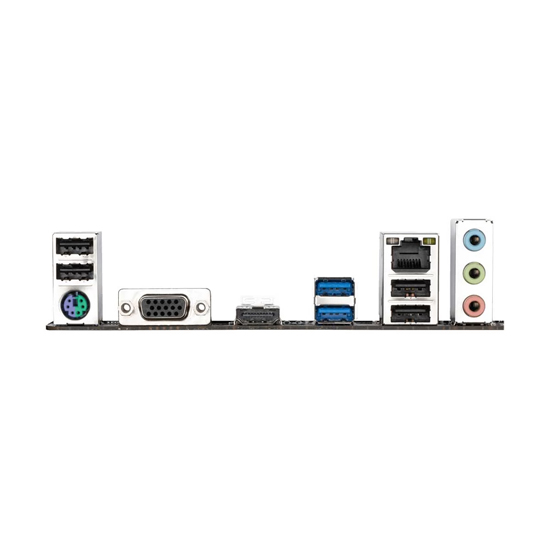

The Gigabyte H510M H Intel 10th and 11th Gen Micro-ATX Motherboard designed for office and home use. It supports 10th and 11th Generation Intel Core, Pentium, andeleron processors the Intel510 chipset and LGA1200 socket. This motherboard features dual-channel DDR4 memory, accommodating speeds of up to 3200 MHz and maximum of 64GB of RAM across two memory slots. For storage, it provides one M.2 slot (Socket 3, M key, type 2280/2260) supporting PCIe 3.0 x4 mode, along with four SATA 6Gb ports, ensuring ample options for both traditional and modern storage solutions. Network connectivity is facilitated by thetek RTL8111H Gigabit LAN which smooth and stable internet performance. The audio experience is enhanced by the Realtek ALC897 Audio Codec delivering high-quality sound for entertainment purposes. The back panel I/O ports include one VGA port, one HDMI port, two USB 3.2 Gen1 ports, four USB 2.0 ports, and audio jacks (Mic in, Line Out, and Line). capabilities comprise one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot, allowing for the addition of further components. With its-ATX form factor (.6 cm x 18.5 cm), the motherboard is ideal for compact PC builds, and it includes six mounting holes for secure. Additionally, the motherboard is backed a 3-year warranty, providing reliability and peace mind.
