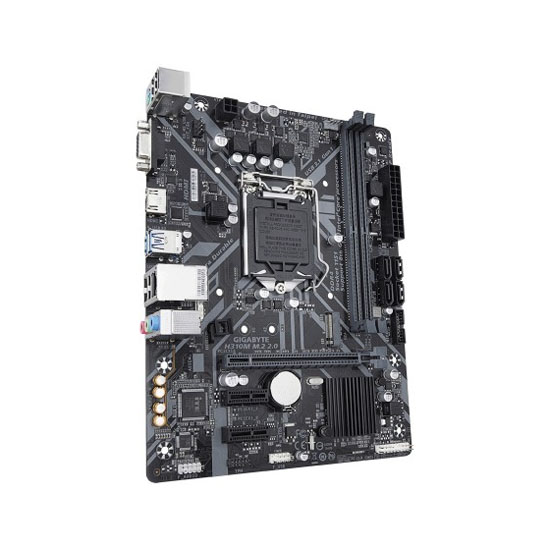

Gigabyte H310M M.2 Intel Chipset 9th Gen Micro ATX Motherboard
Thumbnail 1 Thumbnail 2 Thumbnail 3

Gigabyte H310M M.2 Intel Chipset 9th Gen Micro ATX Motherboard

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: Gigabyte
৳9550 ৳9850 Save 3%

Key Features

  • Supported CPU: Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7
    processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium
    processors/Intel Celeron processors in the LGA1151 package
    L3 cache varies with CPU
  • Chipset: Intel H310 Express Chipset
  • Form Factor: Micro ATX Form Factor; 22.6cm x 17.4cm
  • M.2/SSD Expansion Slot: 1 x PCI Express x16 slot, running at x16
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    2 x PCI Express x1 slots
    (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
  • USB: 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • Warranty: 03 Years Warranty
CPU
Supported CPU Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7
processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium
processors/Intel Celeron processors in the LGA1151 package
L3 cache varies with CPU
Chipset Intel H310 Express Chipset
Bios Information
BIOS Type 1 x 128 Mbit flash
BIOS Version PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS Model AMI UEFI BIOS
Physical Specification
Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm
Ports & Slots
PCI Slot 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Slots 2 x DDR4 DIMM

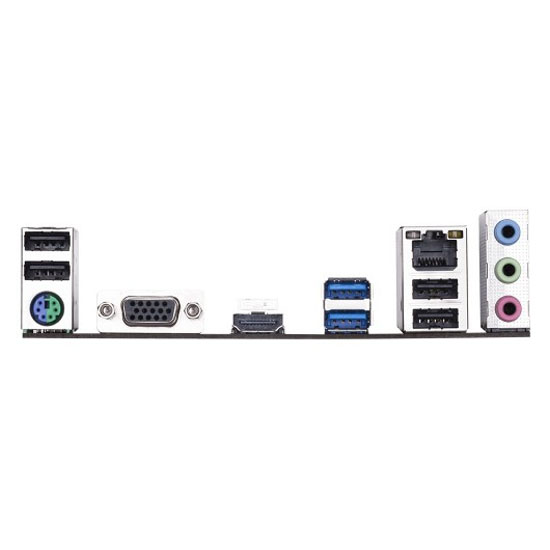

HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Support for HDMI 1.4 version and HDCP 2.2.
D-Sub 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
USB 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x Clear CMOS jumper
TPM Port 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Storage
M.2/SSD Expansion Slot 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Memory
Memory Type Dual-channel memory architecture
Supported Memory Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 32 GB
Audio Sound & Microphone
Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Warranty Information
Warranty 03 Years Warranty

Gigabyte H310M M.2 Intel Chipset 9th Gen Micro ATX Motherboard

The Gigabyte H310M M.2 is a compact and dependable Micro-ATX motherboard designed for 9th and 8th generation Intel® Core™, Pentium®, and Celeron® processors using the LGA1151 socket. Built on the Intel® H310 chipset, this board offers a solid foundation for budget-conscious users building reliable entry-level desktops for everyday computing, office work, or home entertainment.
Equipped with one DDR4 DIMM slot supporting up to 32GB of memory and speeds of up to 2666 MHz (with 9th Gen CPUs), the H310M M.2 delivers efficient performance for basic multitasking and general productivity. Its single PCIe 3.0 x16 slot allows for the addition of a dedicated graphics card, making it suitable for light gaming or enhanced visual performance when needed.
One of the standout features is the inclusion of an M.2 PCIe SSD slot, supporting NVMe and SATA SSDs for faster boot times, reduced application loading, and improved overall system responsiveness. This makes the H310M M.2 a step above basic motherboards in its class, offering modern storage flexibility in an affordable package.
Connectivity is well-covered with Realtek GbE LAN for stable internet access, high-definition audio with 8-channel output, and a range of I/O ports including VGA and DVI-D for dual-display output. The rear panel includes multiple USB ports—USB 3.1 Gen 1 and USB 2.0—enabling fast data transfer with modern peripherals.
Gigabyte incorporates durable solid capacitors to enhance system stability and longevity, while the compact Micro-ATX layout ensures compatibility with most mid-sized cases. Though it lacks support for CPU overclocking and advanced multi-GPU setups, the H310M M.2 focuses on essential features and reliability.
Ideal for first-time builders and system upgraders, the Gigabyte H310M M.2 combines affordability, modern M.2 storage support, and dependable performance—making it a smart choice for a no-frills, functional Intel-based desktop system.
