Gigabyte GA-H110M-H DDR4 Micro ATX Intel Motherboard

Share:

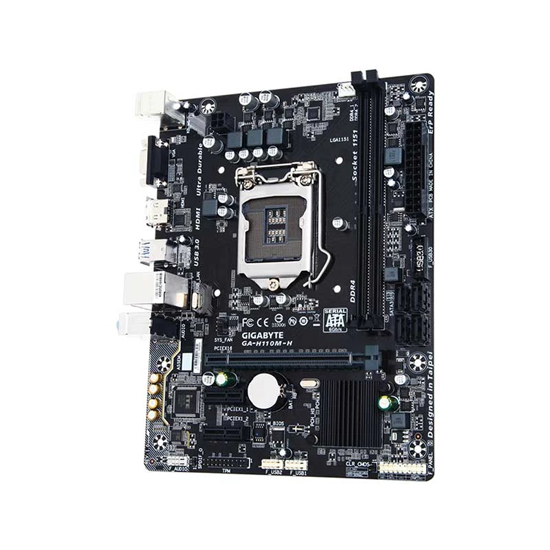

Gigabyte GA-H110M-H DDR4 Micro ATX Intel Motherboard

Gigabyte GA-H110M-H DDR4 Micro ATX Intel Motherboard

Model: GA-H110M-H

Reviews: No reviews yet

Price: 9,300.00৳

Regular Price: 10,200.00৳

Save: 900.00৳

Key Features:

  • Body Color: Black
  • Memory Type: DDR4
  • Memory Max.: 32GB
  • Approx Power Consumption: 60W
  • Manufacturing Warranty: 03 Years

Specifications

Physical Specification

Body Color Black
Form Factor Micro-ATX

CPU

Chipset Brand Intel
Chipset Intel H110
Sockets Supported LGA1151
Supported CPU 7th/6th Gen Intel Core i7 /Intel Core i5 /Intel Core i3 /Intel Pentium /Intel Celeron in the LGA1151
Generation 6th/7th

Memory

Memory Type DDR4
Memory MHz 2400/2133 MHz non-ECC UDIMM
Memory Channel Dual
Memory Max. 32GB
Memory Max. (Additional Info) 2

Storage

Storage Interface 6.0Gb/s

Graphics

Graphics Integrated
Graphics Chipset Intel HD Graphics support
PCI Express Slot 1 x PCI Express x16 slot, 2 x PCI Express x1 slots

Audio Sound & Microphone

Audio Chipset Realtek Audio CODEC, High Definition Audio

Networking & Connectivity

LAN Chipset Realtek GbE LAN chip
LAN Speed (Mbps) 10/ 100 Mbps

Ports & Slots

USB Port 2 x USB 3.0/2.0 ports, 2 x USB 2.0/1.1 ports
VGA Port 1
HDMI Port 1
SATA Port 4
TPM Port 1

Technical Info

Cable Management Front

Power Type

Approx Power Consumption 60W

Bios Information

BIOS Type 1 x 64 Mbit flash
BIOS Model AMI UEFI BIOS
BIOS Version PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System Windows 10 (for 7th Gen), Windows 10 / Windows 8.1/ Windows 7 (for 6th Gen)
Compatible Products 7th/6th Gen Intel Core i7 /Intel Core i5 /Intel Core i3 /Intel Pentium /Intel Celeron in the LGA1151

Additional Info / Features

Others iTE I/O Controller Chip, Unique Features: Support for APP Center, Support for Q-Flash, Support for Smart Switch

Warranty Information

Manufacturing Warranty 03 Years

Description

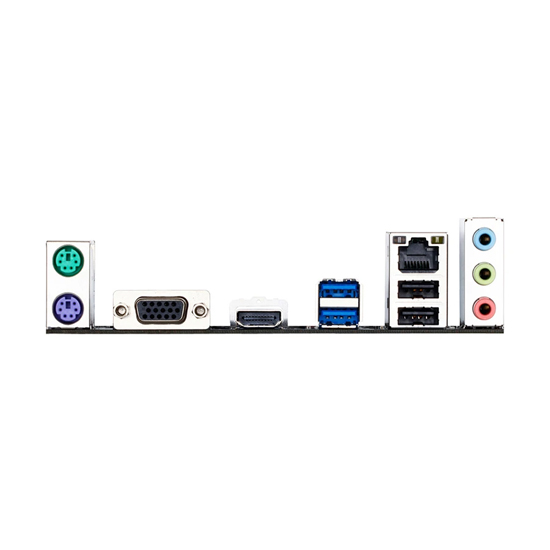

The Gigabyte GA-H110M-H DDR4 Micro-ATX Motherboard is designed both office and home use. It supports 6th and 7 Generation Intel Core i,5, i3, Pentium, and Celeron processors with the H110 chipset andGA1151 socket. The motherboard features dual-channel DDR4 memory support, with speeds of to 213 MHz and a of up to 32GB of RAM across two memory slots. For storage, it provides four SATA 6Gb/s ports ensuring ample options for traditional storage solutions. Network connectivity is by thetek RTL8111H Gigabit LAN, guaranteeing smooth and stable internet performance. The experience is enhanced by the Realtek ALC897 Audio Codec, delivering high-quality sound for entertainment needs. The back panel I/O ports consist of one VGA port, one HDMI port, two USB 3.0/2.0 ports, four USB 20 ports, and three audio jMic in, Line Out, and Line In). Expansion capabilities include one PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots, allowing for additional hardware components. With its micro-ATX form factor (22.6 cm x 17.4 cm), this motherboard is suitable for compact PC builds and includes six mounting holes for secure installation. Additionally, the motherboard is backed by a 3-year warranty, providing reliability and peace of mind.
