Price: 15,200.00৳
Regular Price: 16,900.00৳
Save: 1,700.00৳

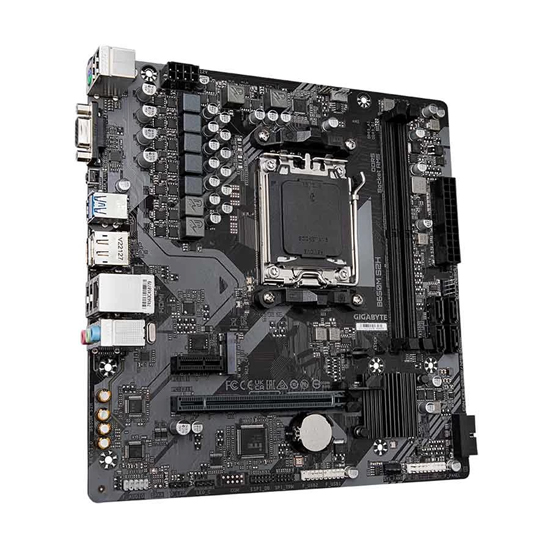

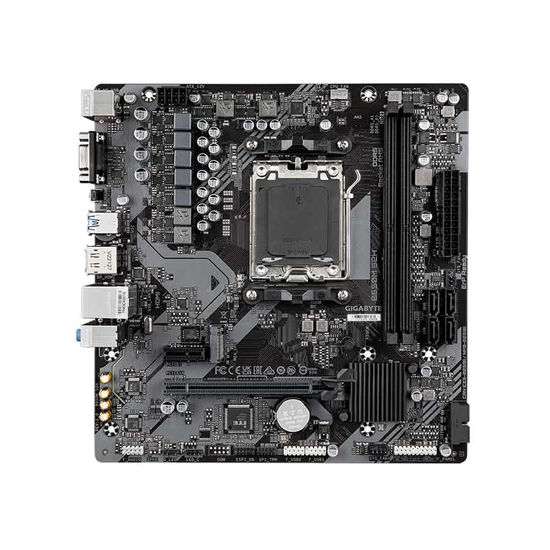

GIGABYTE B650M S2H AM5 Micro-ATX AMD Motherboard
Body Color | Black |
Form Factor | Micro-ATX |
Chipset Brand | AMD |
Chipset | AMD B650 |
Sockets Supported | AM5 |
Supported CPU | AMD Ryzen 7000 Series Processors |
Memory Type | DDR5 |
Memory MHz | 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz non-ECC Un-Buffered |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Slot (Additional Info) | 2 x DDR5 |
Memory Max. | 96GB |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 1 |
M.2/SSD Expansion Slot Details | 1 x M.2 connector (Socket 3, M key, Type 2580 PCIe 4.0 x4/x2 SSD Support) |
Graphics | Integrated |
Graphics Chipset | Integrated with Processor |
PCI Express Slot | 1 x PCI Express x16 Slot, Supporting PCIe 4.0 And running at x16, 1 x PCI Express x1 Slot, Supporting PCIe 3.0 And Running at x1 |
Audio Chipset | Realtek Audio CODEC |
Audio Channel | 2/4/5.1/7.1 |
LAN Chipset | Realtek GbE LAN chip |
LAN Speed (Mbps) | 0/100/1000 Mbps |
USB Port | 4 x USB 2.0/1.1 Ports, 2 x USB 3.2 Gen 1 Ports |
VGA Port | 1 |
HDMI Port | 1 |
DisplayPort (DP) | 1 |
SATA Port | 4 |
Cable Management | Front |
Raid Support | 0 , 1 , 10 |
RGB Support | RGB |
RGB Sync | RGB FUSION |
RGB Connector | 1 x RGB LED Strip Header |
Approx Power Consumption | 60W |
BIOS Type | 1 x 256 Mbit Flash |
BIOS Model | AMI UEFI BIOS |
BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Supported Operating System | Windows 10 / 11 64-bit |
Compatible Products | AMD Ryzen 7000 Series Processors |
Manufacturing Warranty | 3 Years |

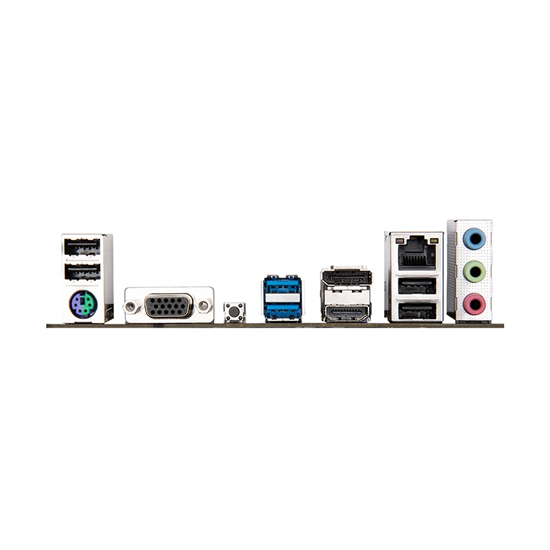

TheIGABYTE B650M S2H AM5 Micro-ATX Motherboard is tailored for gamers and. It is compatible with 7000/80009000 Series Desktop Processors utilizing the AMD B650 chipset. The motherboard boasts dual-channel DDR5 memory support, with speeds reaching up to 6400 (O.C.) and accommodating up to 96GB of RAM across memory slots. For storage, it provides.2 (Socket 3, M key, type 2580 that supports PCIe 0 mode, along with four SATA 6Gb/s ports, thus offering ample options for traditional and modern storage solutions. Network connectivity is facilitated by the Realtek RTL8111H Gigabit LAN, ensuring stable and smooth internet. The audio experience is enhanced through the Real ALC897 Codec, delivering high-quality sound for entertainment needs. The back panel I/O ports include one port, one DisplayPort, one VGA port two USB 2.0 ports two USB 3.2 Gen1 ports, and three audio jacks (Mic Line, and Line In). Expansion capabilities consist of one PCIe 4.0 x16 slot and PCIe 3.0 x1 slot, allowing for the addition further hardware components. With a micro-ATX factor (23.0 cm x 22.5), the is includes six mounting holes for secure installation. Additionally, the motherboard is supported by a 3-year warranty, providing reliability and peace of mind.
