Price: 13,500.00৳
Regular Price: 14,899.00৳
Save: 1,399.00৳

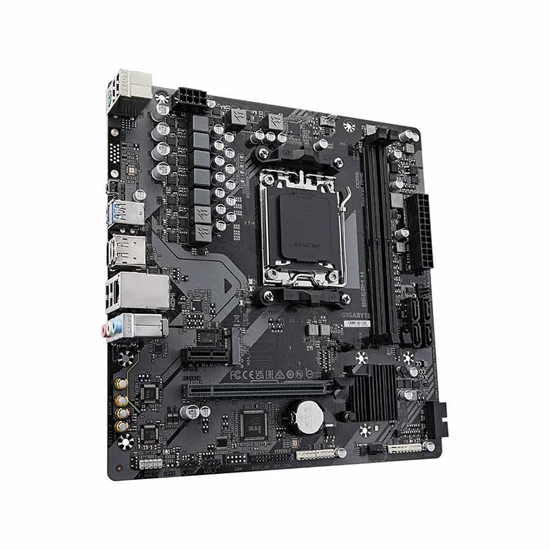

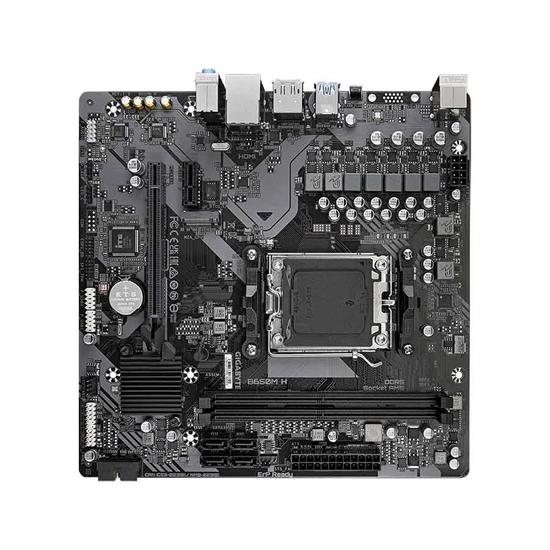

GIGABYTE B650M H AM5 Micro-ATX AMD Motherboard
Body Color | Black |
Form Factor | Micro-ATX |
Chipset Brand | AMD B650 |
Sockets Supported | AM5 |
Supported CPU | AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors |
Generation | Not Applicable |
Memory Type | DDR5 |
Memory MHz | 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s non-ECC Un-Buffered DIMM |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Max. | 96GB |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 1 |
M.2/SSD Expansion Slot Details | 1 x M.2 type 2580/2280 SSDs |
Graphics | Integrated |
Graphics Chipset | Integrated With Processor |
PCI Express Slot | 1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x1 slot |
Audio Chipset | Realtek Audio CODEC High Definition Audio |
Audio Channel | 7.1 |
LAN Chipset | Realtek GbE LAN |
LAN Speed (Mbps) | 10 / 100 / 1000Mbps |
USB Port | 4 x USB 2.0/1.1 Ports, 2 x USB 3.2 Gen 1 Ports |
HDMI Port | 1 |
DisplayPort (DP) | 1 |
SATA Port | 4 |
TPM Port | 1 |
Cable Management | Front |
Raid Support | 0 , 1, 10 |
RGB Support | RGB |
Approx Power Consumption | 60W |
BIOS Type | 1 x 256 Mbit Flash |
BIOS Model | AMI UEFI BIOS |
BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Supported Operating System | Windows 10, Windows 11 |
Compatible Products | AMD Socket AM5, Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors |
Manufacturing Warranty | 3 Years |

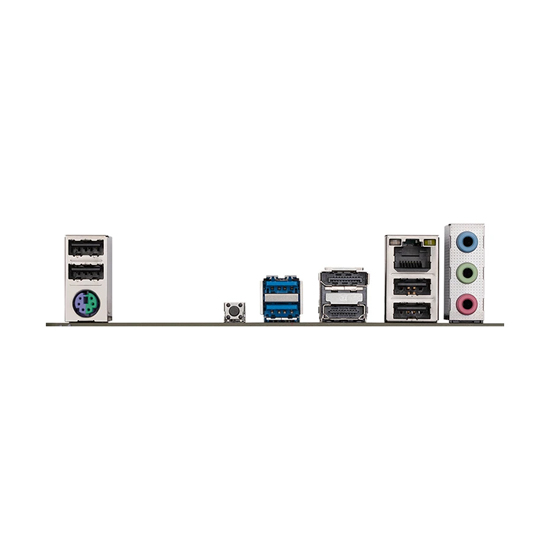

The GIGABYTE B650M H AM5 Micro-ATXboard is tailored for gamers and enthusiasts. It is compatible with AMD Ryzen 7000/8000/9000 Series Desktop Processors utilizing the AMD B650 chipset. This motherboard dual-channel DDR5 memory, with speeds reaching up to 6400 (O.C.) and a maximum of 96GB of RAM distributed across two memory slots. In terms of storage, it features one M.2 slot (Socket 3, M key, type 2580 that accommodates PCIe 4. x4 mode, along with four SATA 6/s ports, providing extensive options for both and contemporary storage solutions. Network connectivity is facilitated by Realtek RTL8111H Gigabit LAN, ensuring a smooth and stable internet experience. The audio performance is enhanced by the Realtek ALC897 Audio Codec, delivering sound quality for entertainment purposes. The back panel/O ports consist of one HDMI port, one Display, one VGA port, two USB .0 ports, two USB 3.2 Gen1 ports, three audio jacks (Mic in, Line Out, and Line In). Expansion options include one PCIe 40 x16 slot and one PCIe .0 x1 slot, allowing for the addition of extra hardware components. With its micro-X form factor (23.0 cm x 22.5 cm), this motherboard is ideal for PC builds, and it includes six mounting holes for secure installation. Furthermore, the motherboard is supported by a -year, reliability and peace of mind.
