Price: 11,000.00৳
Regular Price: 11,999.00৳
Save: 999.00৳

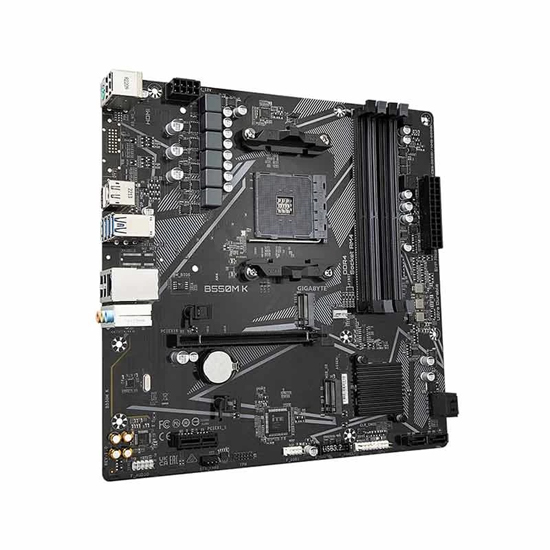

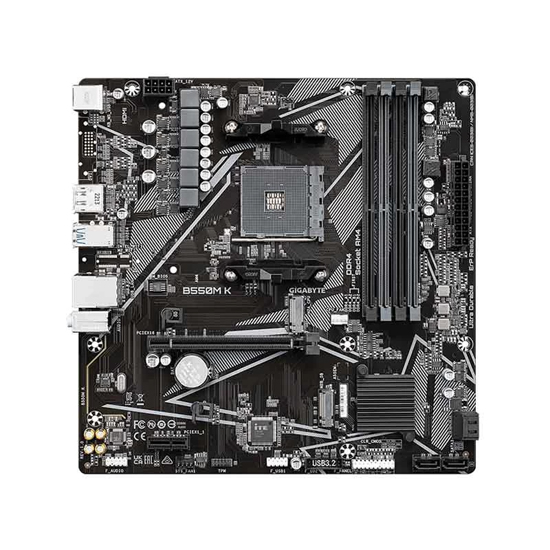

Gigabyte B550M K AMD AM4 Micro ATX Motherboard
Body Color | Black |
Form Factor | Micro-ATX |
Chipset Brand | AMD |
Chipset | AMD B550 |
Sockets Supported | AM4 |
Supported CPU | AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors |
Memory Type | DDR4 |
Memory MHz | 4733(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C)/ 3400(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133MHz |
Memory Channel | Dual |
Memory Slot | 4 |
Memory Max. | 128GB |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 2 |
M.2/SSD Expansion Slot Details | 2 x M.2 (1 x M.2 (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSD, 1 x M.2 (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSD) |
Graphics | Integrated |
Graphics Chipset | Integrated With Processor |
PCI Express Slot | 1 x PCI Express x 16 (AMD Ryzen 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode, AMD Ryzen 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode), 1 x PCI Express x 1 (PCIe 3.0 x1 mode) |
Audio Chipset | Realtek Audio CODEC |
Audio Channel | 2/4/5.1/7.1 |
LAN Chipset | Realtek GbE LAN |
LAN Speed (Mbps) | 10/100/1000Mbps |
USB Port | 4 x USB 2.0/1.1, 4 x USB 3.2 Gen 1 |
HDMI Port | 1 |
DisplayPort (DP) | 1 |
SATA Port | 4 x SATA |
TPM Port | 1 |
Cable Management | Front |
Raid Support | 0, 1, 10 |
Approx Power Consumption | 60W |
BIOS Type | 1 x 128 Mbit Flash |
BIOS Model | AMI UEFI BIOS |
BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Supported Operating System | Windows 10/ 11 |
Compatible Products | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Processors |
Manufacturing Warranty | 03 Years |

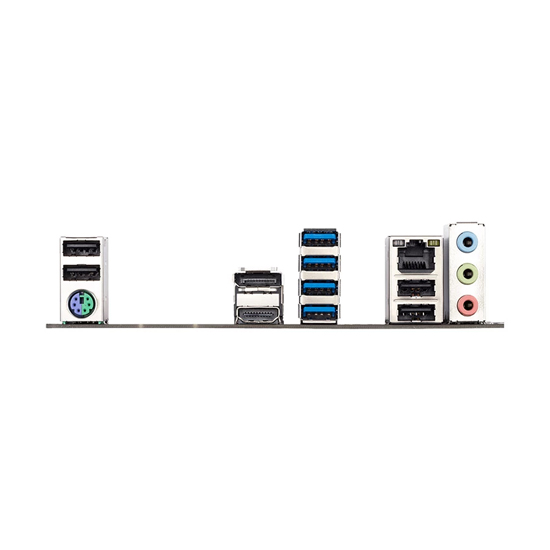

The Gig B550M K AMD AM4 Micro-ATX Motherboard is specifically engineered for gamers and enthusiasts. It supports AMD Ryzen 5000 Series, Ryzen 5000 G, Ryzen 4000 G-Series, and Ryzen3000 Series processors utilizing the AMD B550 chipset This motherboard is equipped with dual-channel DDR4 memory support, allowing speeds of up to 473 MHz (O.C.) accommodating up to 128GB of RAM across four memory slots. For storage solutions, it includes two M.2 slots—one Ultra M.2 slot that supports PCIe Gen3 x4 and one SATA3 M.2 slot—as well as four SATA 6Gb/s ports, offering a variety of options for both traditional modern storage configurations. Network connectivity is facilitated by the Realtek RTL1H Gigabit LAN, which ensures smooth and stable internet performance. The audio experience is enhanced via thetek ALC897 Audio Codec, providing high-quality sound for entertainment purposes. The back panel I/O ports consist of one HDMI port, one DisplayPort, one VGA port, two USB 2.0 ports, two USB 32 Gen1 ports, and three audio jacks (Mic in, Line Out, and Line In). Expansion capabilities are supported through one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot, enabling the addition of extra hardware components. its micro-ATX form factor (244 cm x 24.4 cm), this motherboard is ideal for compact PC builds and features six mounting holes for secure installation. Additionally, the motherboard is supported by a 3-year warranty ensuring reliability and peace of mind.
