Price: 11,600.00৳
Regular Price: 14,400.00৳
Save: 2,800.00৳

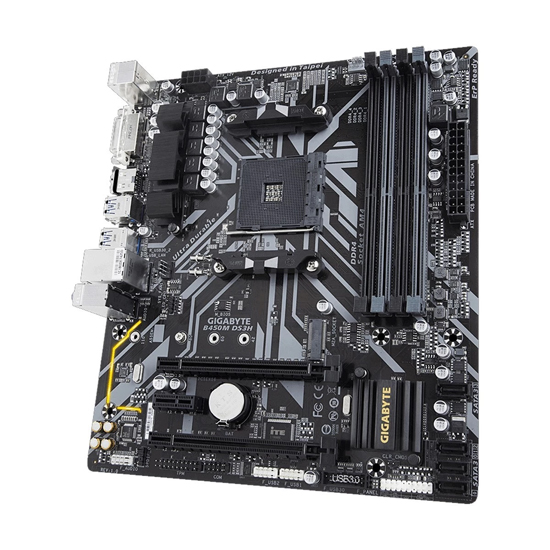

Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard
| Black |
| Micro-ATX |
| AMD |
| AMD B450 |
| AM4 |
| 1st/2nd Generation AMD Ryzen processors with Radeon Vega Graphics |
| 2nd |
| DDR4 |
| 3200(O.C.)/ 2933/ 2667/ 2400/ 2133MHz |
| Dual |
| 4 |
| 64GB |
| 6.0Gb/s |
| 1 |
| 1 x M.2 Socket 3 (type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) |
| Integrated |
| Integrated With Processor |
| AMD Quad-GPU CrossFire and 2-Way AMD CrossFire |
| 1 x PCI Express x16 slot, (running at x16, x4), 1 x PCI Express x1 slot |
| Realtek ALC887 |
| 2/4/5.1/7.1 |
| Realtek GbE LAN |
| 10/100/1000Mbps |
| 2 x USB 3.1 Gen 1, 8 x USB 2.0 |
| 1 |
| 1 |
| 4 x SATA |
| Yes |
| Front |
| Yes |
| 0, 1, 10 |
| RGB |
| RGB FUSION |
| 1 x RGB LED strip header |
| 60W |
| 1 x 128 Mbit flash |
| AMI UEFI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Windows 7 / 10 |
| Three M.2 sockets, one CPU fan header, one serial port header, one Trusted Platform Module (TPM) header, one clear CMOS jumper, and three audio jacks |
| 03 Years |

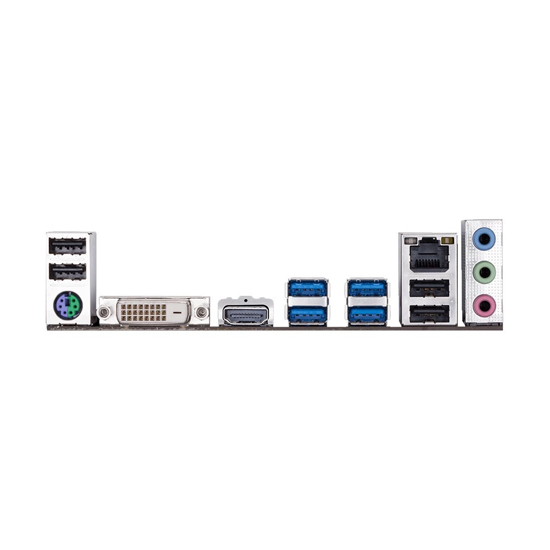

The Gigabyte B450M DS3H AM4 Micro-ATX Motherboard caters to gamers and PC enthusiasts. Compatible with a wide range of AMD processors including the Ryzen 5000, 5000 G-Series, 4000 G-Series, 3rd, 2nd, and 1st Gen Ryzen, as well as Ryzen and Athlon with Radeon Vega Graphics, it utilizes the AMD B450 chipset and AM4 socket. This motherboard supports dual-channel DDR4 memory, with speeds reaching up to 3600 (O.C.) MHz, and can accommodate up to 64GB of RAM over four memory slots. Storage options include an M.2 slot (Socket 3, M key, type 2242/2260/2280/22110) compatible with PCIe 3.0 x4 mode, alongside four SATA 6Gb/s ports. It features Realtek RTL8111H Gigabit LAN for network connectivity, ensuring reliable internet access. Audio quality is bolstered by the Realtek ALC897 Audio Codec. The rear I/O panel includes an HDMI port, a DVI-D port, two USB 3.2 Gen1 ports, four USB 2.0 ports, and three audio jacks (Mic in, Line Out, Line In). For expansion, it provides one PCIe 3.0 x16 slot and one PCIe 3.0 x1 slot. The motherboard's micro-ATX form factor (24.4 cm x 21.5 cm) makes it ideal for compact builds, and it comes with six mounting holes for installation. A 3-year warranty ensures long-term reliability.
