Price: 8,450.00৳
Regular Price: 9,300.00৳
Save: 850.00৳

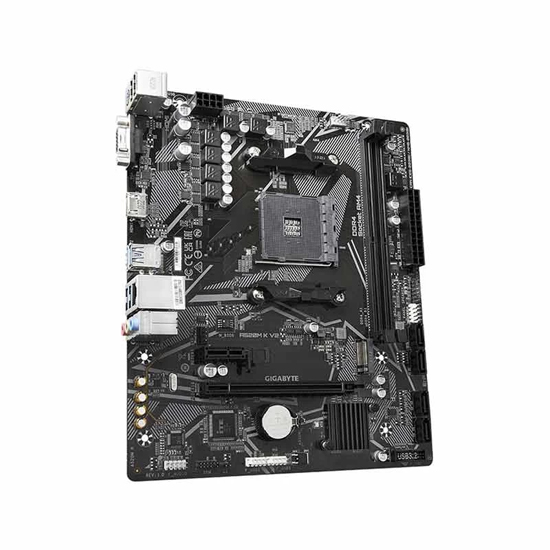

Gigabyte A520M K V2 DDR4 AM4 Micro ATX AMD Motherboard
Body Color | Black |
Form Factor | Micro-ATX |
Chipset Brand | AMD |
Chipset | AMD A520 |
Sockets Supported | AM4 |
Supported CPU | AMD Ryzen 5000 G-Series / 5000 Series Processors/ 4000 G-Series / 3000 Series Processors. |
Memory Type | DDR4 |
Memory MHz | 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz. |
Memory Channel | 2 |
Memory Slot | 2 |
Memory Slot (Additional Info) | 2 x DIMM |
Memory Max. | 64GB |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 1 |
M.2/SSD Expansion Slot Details | 1 x M.2 M key type 2280 Supports SATA and PCIe 3.0 x4/x2 SSD |
Graphics | Integrated |
Graphics Chipset | Integrated With Processor |
PCI Express Slot | 1 x PCI Express x16 slot supporting PCIe 3.0 and running at x16, 1 x PCI Express x1 slot supporting PCIe 3.0 and running at x1 |
Audio Chipset | Realtek Audio CODEC High Definition Audio |
Audio Channel | 2/4/5.1/7.1 |
LAN Chipset | Realtek GbE LAN chip |
LAN Speed (Mbps) | 10/100/1000Mbps |
USB Port | 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
VGA Port | 1 |
HDMI Port | 1 |
SATA Port | 4 x SATA |
TPM Port | 1 |
Cable Management | Front |
Raid Support | 0, 1, 10 |
Approx Power Consumption | 60W |
BIOS Type | 1 x 128 Mbit flash |
BIOS Model | AMI UEFI BIOS |
BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Supported Operating System | Windows 10 / 11 |
Compatible Products | Compatible with AM4 Sockets AMD Ryzen 5000 G-Series / 5000 Series Processors/ 4000 G-Series / 3000 Series Processors. |
Manufacturing Warranty | 03 Year Warranty |

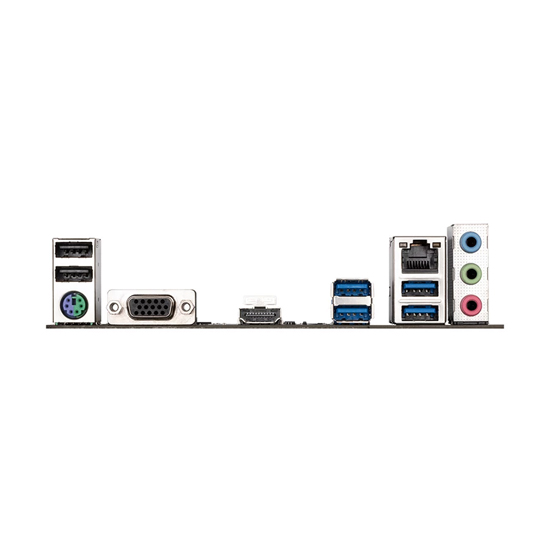

The Gigabyte A520M K V2 DDR4 AM4 Micro-ATX Motherboard is designed for both office and home use. It is compatible with AMD Ryzen 5000 Series, Ryzen G-Series, Ryzen 4000 G, and Ryzen 3000 Series processors, utilizing the AMD A520 chipset and AM4 socket. This motherboard dual DDR4 memory support, speeds reaching up to 5100 (O.C.) and accommodating up to 64GB of RAM across two memory slots. For storage options, it includes one M.2 (Socket 3, M key, type 2280) supporting PCIe 3.04 mode, with four SATA6Gb/s ports, providing ample choices both traditional and modern storage solutions. Network connectivity is facilitated by Real RTL8111H Gigabit LAN, ensuring smooth and stable internet performance. The audio experience is enhanced through the Realtek ALC897 Audio Codec, delivering high-quality sound for entertainment needs. The back I/O ports one VGA port, one HDMI port, two 3.2 Gen1 ports, four USB .0 ports, and three audio jacks (Mic in, Line Out, and Line In). Expansion capabilities include one PCIe 4.0 x slot and one PCI 3. x1 slot, allowing for additional hardware components. With its-ATX form factor (23. cm x 21.5), this motherboard is suitable for compact PC builds, and it features six mounting holes for secure installation. Furthermore, the motherboard is backed by a 3-year warranty, providing reliability and peace of mind.
