Gamdias HELIOS M1-650B 650W Non Modular 80 Plus Bronze Black Power Supply

Gamdias HELIOS M1-650B 650W Non Modular 80 Plus Bronze Black Power Supply

Model: HELIOS M1-650B

Reviews: No reviews yet

Price: 5,850.00৳

Regular Price: 6,470.00৳

Save: 620.00৳

Key Features:

  • Product Type: Power Supply
  • Maximum Power: 650 Watt
  • Color: Black
  • Form Factor: ATX
  • Manufacturing Warranty: 5 Year

Specifications

Basic Information

Product Type Power Supply
PSU Category Non Modular

Fan / Cooling System

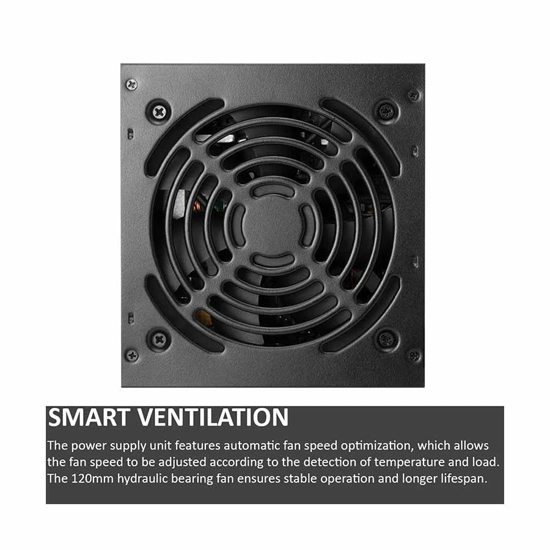

Fan Size 120mm
Fan Bearing Hydraulic Bearing

Performance

Efficiency 85% Efficiency
Efficiency Rating 80 Plus Bronze

Protection

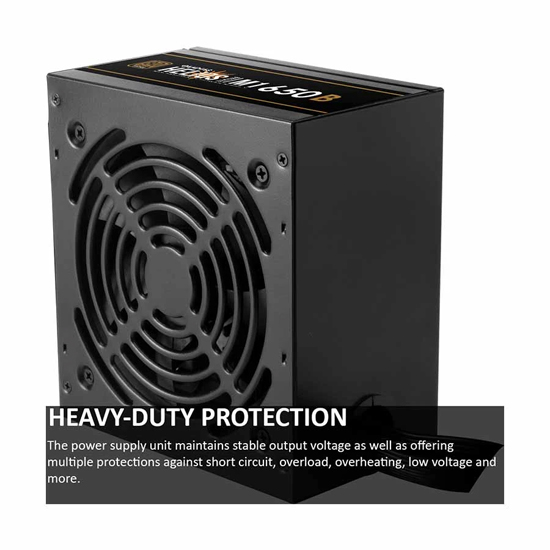

Protection OVP / UVP / OPP / OCP / SCP
Over Voltage Protection (OVP) Yes
Over Power Protection (OPP) Yes
Over Current Protection (OCP) Yes
Short Circuit Protection (SCP) Yes
Under Voltage Protection (UVP) Yes

Ports & Slots

ATX Main Connectors 1
EPS Connectors 1
PCIe Connectors 2
SATA Power Connectors 5
4-Pin Peripheral Connectors 3

Power Type

Min. Power (Approx.) 550W
Maximum Power 650 Watt
Input Voltage 100 - 240V
Input Frequency Range 47 - 63Hz
Input Current 5-10A
Peak Output Capacity 650W

Physical Specification

Color Black
Form Factor ATX
Cable Flat Cable
Dimension 150 x 86 x 140mm

Additional Info / Features

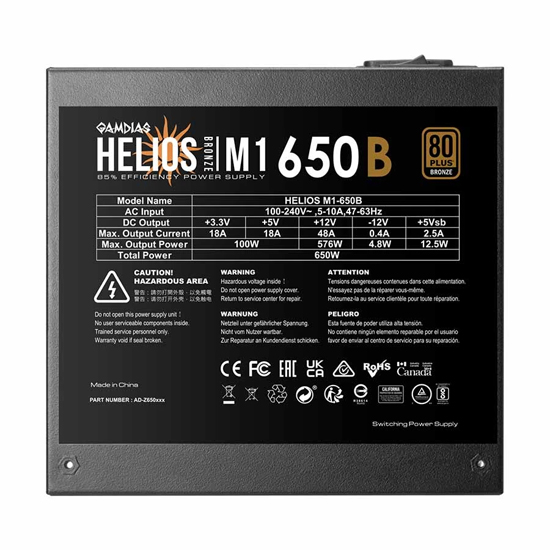

Others Output Current: 18A / 18A / 48A / 0.4A / 2.5A, Maximum; DC Output: +3.3V / +5V / +12V / -12V / +5Vsb 100W, 576W, 4.8W, And 12.5W Of Power C6/C7 Power State Support: Indeed, APFC With A Power Factor Correction Of 0.99

Warranty Information

Manufacturing Warranty 5 Year

Description

The Gamdias HELIOS M1-650B 650W Non-Modular 80 Plus Bronze Black Power Supply is a reliable and efficient unit, ideal for powering mid-range computer systems. With a continuous power output of 650 watts, it provides ample power for most computer components, including CPUs, GPUs, and peripherals. This power supply features a 24-pin ATX main connector, an 8-pin EPS12V connector, and an 8-pin PCI-E connector, ensuring compatibility with a wide range of motherboards and graphics cards. It also includes five SATA power connectors and three peripheral connectors, providing ample power for additional peripherals. The Gamdias HELIOS M1-650B is equipped with a 120mm hydraulic bearing fan and Thermal Manager, which utilize advanced low-voltage fan control for optimal heat and noise management. This ensures that the power supply operates quietly and efficiently, even under heavy loads. Additionally, the power supply comes with over voltage protection (OVP), over current protection (OCP), short circuit protection (SCP), over power protection (OPP), no load operation protection (NLO), and over temperature protection (OTP), safeguarding your system against electrical anomalies. Overall, the Gamdias HELIOS M1-650B 650W Non Modular 80 Plus Bronze Black Power Supply is an excellent choice for those seeking a dependable and efficient power solution for their computer system.
