Form Factor | Micro-ATX (21.1 cm x 16.8 cm) |
Chipset Brand | Intel |
Chipset | Intel G41 Northbridge, Intel ICH7 Southbridge |
Sockets Supported | LGA775 socket |
Supported CPU | Intel Core 2 Duo and Core 2 Quad Series Processors |
Memory Type | DDR3 |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Slot (Additional Info) | 2 x DDR3 |
Memory Max. | 16GB |
SATA Port | 2 x SATA 2.0 ports |
IDE Port | 1 x IDE port |
PCIe Connectors | 1 x PCIe 3.0 x16 slot |
VGA Port | 1 |
COM Port | 1 |
USB Port | 4 |
Front/Top Audio Port | 3 |
LAN Chipset | Realtek 8105E |
LAN Speed (Mbps) | 10/100 Mb/s |
Audio Chipset | Realtek ALC662 |
Audio Channel | 5.1 |
PCI Express Slot | 1 x PCI slot |
Manufacturing Warranty | 1 Year |

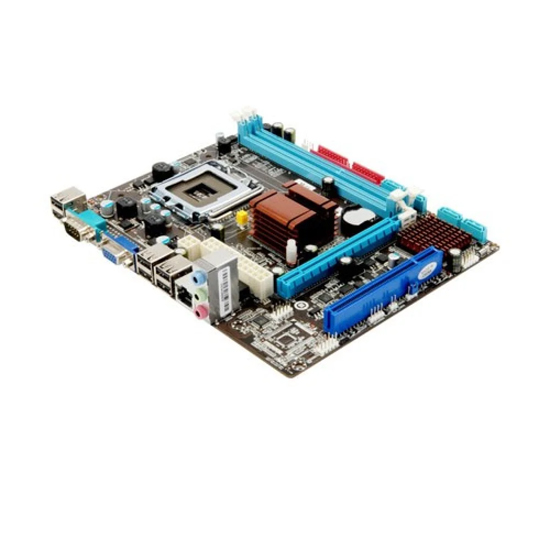

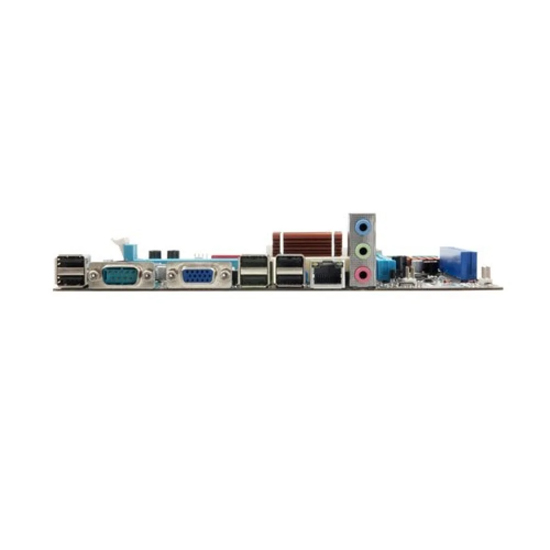

The Esonic Intel G41 DDR3 Micro-ATX Motherboard is designed for budget-conscious users. It supports Intel Core 2 Duo and Core 2 Quad Series Processors with the Intel G41 chipset and LGA775 socket. The motherboard features dual-channel DDR3 memory support, with speeds up to 1333/1066 MHz and up to 16GB of RAM across two memory slots. For storage, it offers two SATA 2.0 ports and one IDE port, providing options for both traditional hard drives and SSDs. Network connectivity is provided by Realtek 8105E 100M LAN, ensuring stable internet performance. The audio experience is enhanced with Realtek ALC662 Audio Codec, delivering 5.1-channel audio-out for immersive sound. The back panel I/O ports feature one VGA port, one PS/2 port, one COM port, four USB 2.0 ports, and three audio jacks (Mic in, Line Out, and Line In). Expansion capabilities include one PCI slot and one PCIe 3.0 x16 slot, allowing for additional hardware components. With its micro-ATX form factor (21.1 cm x 16.8 cm), the motherboard is suitable for compact PC builds, and it includes six mounting holes for secure installation. The motherboard is backed by a 1-year warranty, offering reliability and peace of mind.
