ATX12V V3.0 |
Non Modular |
120mm |
HYB(Hydro Bearing) |
85% Efficiency |
80 Plus Bronze |
100-150ms |
>=16ms |
OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
1 |
2 |
3 |
4 |
550 Watt |
100 - 240Vac, 8 - 4A, 50 - 60Hz |
100 - 240Vac100 - 240Vac |
50 - 60Hz |
8 - 4A |
0 - 40 Degree C |
Black |
ATX |
150 x 140 x 86mm |
100,000 Hours |
CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH |
5 Years |

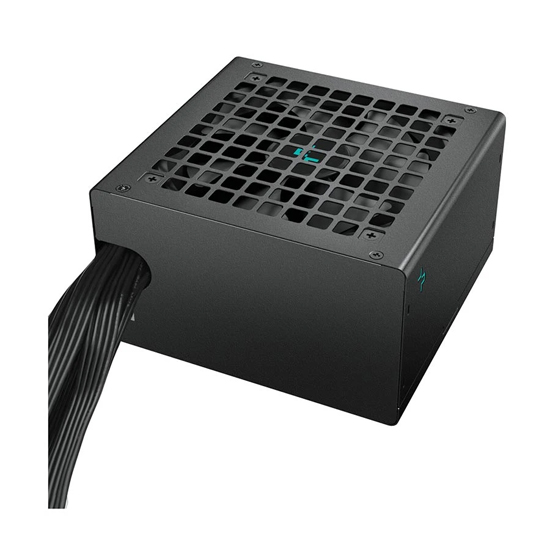

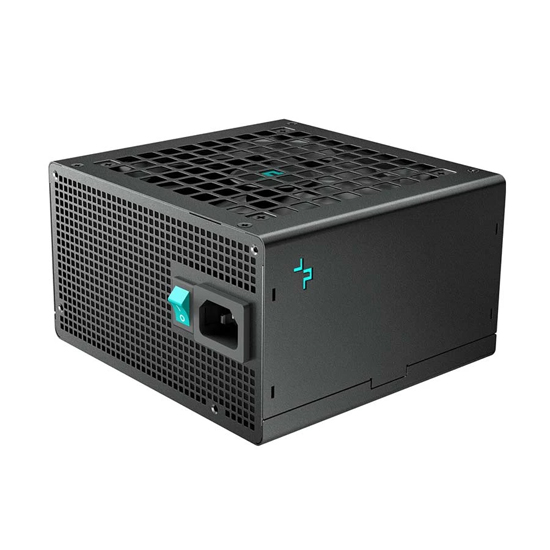

The DeepCool PL550D 550 Watt Non-Modular 80 PLUS Bronze ATX 3.0 Power Supply is a robust and efficient power supply unit designed to meet the demands of modern computer systems. With its 80 PLUS Bronze certification, it ensures energy efficiency with up to 85% efficiency under typical loads, reducing power wastage and heat generation. Equipped with a 120mm hydro-bearing fan, the DeepCool PL550D functions silently while delivering superior cooling performance. It is a non-modular unit, meaning all the cables are attached, making it ideal for systems where cable management is not a primary concern1. The power supply is equipped with multiple connectors, including a 20+4 Pin Main Power Connector, a 4+4 Pin CPU Connector, and 6+2 Pin PCI-E Connectors, ensuring compatibility with a wide range of components. The DeepCool PL550D is built to last, backed by a 5-year warranty. It also includes comprehensive protection mechanisms, such as Over Voltage Protection (OVP), Over Current Protection (OCP), Short Circuit Protection (SCP), Over Power Protection (OPP), No Load Operation Protection (NLO), Over Temperature Protection (OTP) is a crucial safety feature that guards your system against electrical irregularities by shutting down the power supply when the internal temperature exceeds a safe threshold. Overall, the DeepCool PL550D 550 Watt Non-Modular 80 PLUS Bronze ATX 3.0 Power Supply is an excellent choice for those seeking a dependable and efficient power solution for their computer system.
