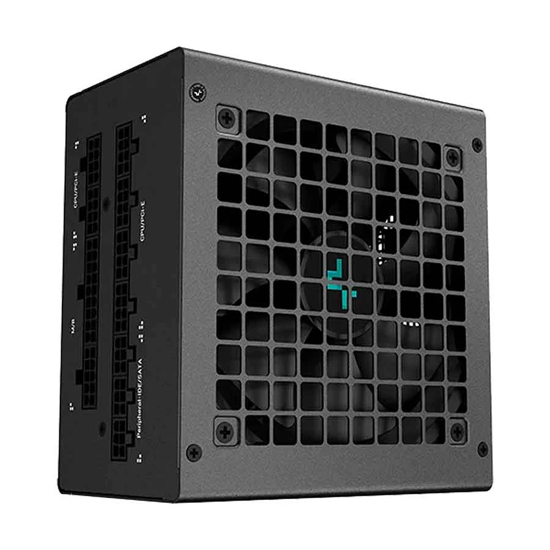

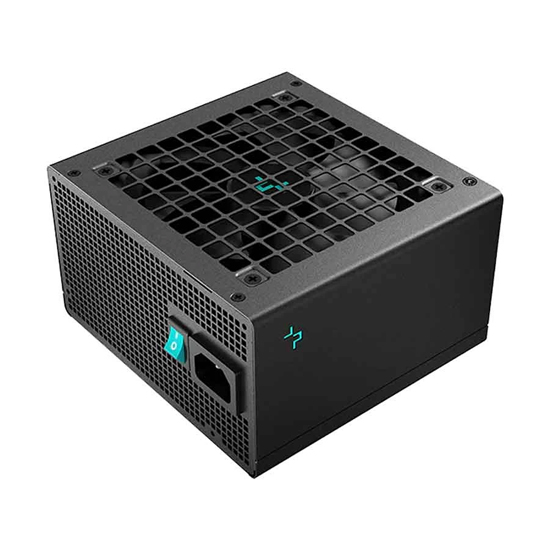

Deepcool DQ850M-V3L Full Modular 850W 80 Plus Gold Certified Black Power Supply

Deepcool DQ850M-V3L Full Modular 850W 80 Plus Gold Certified Black Power Supply

Model: DQ850M-V3L

Reviews: No reviews yet

Price: 12,400.00৳

Regular Price: 13,100.00৳

Save: 700.00৳

Key Features:

  • Product Type: ATX 12V
  • Maximum Power: 850 Watt
  • Operating Temperature: 0 - 40 degree C
  • Color: Black
  • Manufacturing Warranty: 07 Years

Specifications

Basic Information

Product Type ATX 12V
PSU Category Full Modular

Fan / Cooling System

Fan Size 120mm
Fan Bearing FDB (Fluid Dynamic Bearing)

Performance

Efficiency 90% Efficiency
Efficiency Rating 80 Plus Gold
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500ms
Hold Up Time >=16ms(80% Load)

Protection

Protection SCP, OPP, OTP, OVP, OCP, UVP
Over Voltage Protection (OVP) Yes
Over Power Protection (OPP) Yes
Over Current Protection (OCP) Yes
Over Temperature Protection (OTP) Yes
Short Circuit Protection (SCP) Yes
Under Voltage Protection (UVP) Yes

Ports & Slots

ATX Main Connectors 1
EPS Connectors 2
PCIe Connectors 3
SATA Power Connectors 2
4-Pin Peripheral Connectors 1

Power Type

Min. Power (Approx.) 765W
Maximum Power 850 Watt
Input AC 100 - 240Vac, 12.0A - 6.0A, 50 - 60Hz
Input Voltage 100 - 240Vac
Input Frequency 50 - 60Hz
Input Current 12.0A - 6.0A
Peak Output Capacity 850W

Environmental

Operating Temperature 0 - 40 degree C

Physical Specification

Color Black
Form Factor ATX
Dimension 150 x 140 x 86mm

Technical Info

MTBF 100000 Hours

Additional Info / Features

Regulatory / Safety Approval CB/CCC/CE/FCC/UKCA/BIS/EAC/CAN ICES-003(B)/NMB-003(B)
Others Type - ATX12V V2.4, Topology - Active PFC + Full Bridge SRC LLC + DC to DC, Capacitors - Full Japan Electrolytic Capacitors, Efficiency - >=90% Under Typical Load(50% Loading), Erp Regulation - ErP 2014

Warranty Information

Manufacturing Warranty 07 Years

Description

The DeepCool DQ850M-V3L Full Modular 850W 80 PLUS Gold Certified Black Power Supply is a high-performance and reliable power supply unit designed to meet the demands of modern computer systems. With its 80 PLUS Gold certification, it ensures energy efficiency with up to 91.2% efficiency under typical loads, reducing power wastage and heat generation. This power supply features a 120mm hydraulic bearing fan for quiet operation and effective cooling. It is fully modular, allowing for better cable management and a cleaner build. The full Japanese capacitors ensure durability and stability, while the active Power Factor Correction (PFC) enhances efficiency and reduces electrical noise. The DeepCool DQ850M-V3L is equipped with comprehensive protection mechanisms, including Over Voltage Protection (OVP), Over Current Protection (OCP), Short Circuit Protection (SCP), Over Power Protection (OPP), No Load Operation Protection (NLO), and Over Temperature Protection (OTP), safeguarding your system against electrical anomalies. With a sturdy black shell and a compact design, the DeepCool DQ850M-V3L is an excellent choice for those seeking a dependable and efficient power solution for their computer system.
