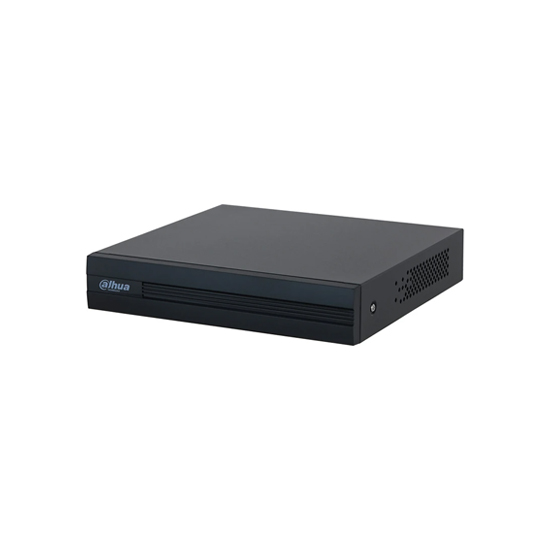

Dahua XVR1B04-I 4 Channel XVR (1SATA UP TO 6TB) 1080P
Thumbnail 1 Thumbnail 2

Dahua XVR1B04-I 4 Channel XVR (1SATA UP TO 6TB) 1080P

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: Dahua
৳2500 ৳3200 Save 22%

Key Features

  • Storage: 1 SATA port, up to 6 TB capacity
  • USB: 2 (2 rear USB 2.0 ports)
  • Power Supply: DC 12 V/1.5 A
  • Main Processor: Industrial-grade processor
  • Operating System: Embedded Linux
  • Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Storage
Storage 1 SATA port, up to 6 TB capacity
Ports & Slots
USB 2 (2 rear USB 2.0 ports)
Two-Way Talk Yes (share the same audio input with the first channel
Disk Interface 1 SATA port, up to 6 TB. This limit varies depending on the environment temperature.
HDMI 1
VGA 1
Network Port 1 (10/100 Mbps Ethernet port, RJ-45)
Power Type
Power Supply DC 12 V/1.5 A
Power Consumption < 7 W
Physical Specification
Dimension 197.0 mm × 203.1 mm × 41.5 mm (7.76" × 8.00" × 1.63") (W × D × H)
Net Weight 0.57 kg (1.25 lb)
Warranty Information
Warranty 1 Year Warranty
System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web; Local GUI
SMD Plus
SMD Plus by Recorder 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input 1. CVI: 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30 fps.
2. TVI: 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 1080p@25/30 fps; 720p@25/30 fps.
IP Camera Input Up to 5 channels of IPC access 1 IP channel by default + 4 channels (analog channels are converted to IP channels)
Encoding Capacity Main stream: 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps)
Sub stream: CIF@(1 fps–15 fps)
Dual Stream Yes
Video Bit Rate 32 kbps–4096 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output 1 HDMI, 1 VGA
HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-Screen Display When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/6
Third-Party Camera Access Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Compression Standard
Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression G.711a; G.711u; PCM
Networking & Connectivity
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP;
Mobile Phone Access iOS; Android
Interoperability ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE; Safari; Edge; Firefox
Recording Playback
Record Mode General; alarm; motion detection
Recording Playback 1/4
Backup Method USB device and network
Playback Mode Instant playback; general playback; event playback; tag playback; smart playback
Alarm
General Alarm Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm
Anomaly Alarm Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict)
Intelligent Alarm SMD Plus
Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
Audio Sound & Microphone
Audio Input 1-channel RCA
4-channel BNC (Coaxial Audio)
Audio Output 1-channel RCA
General Information
Operating temperature –10 °C to +45 °C (+14 °F to +113 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Installation Desktop
Environmental
Operating Humidity 10%–90% (RH), non-condensing
Additional Info / Features
Certifications CE-LVD: IEC 62368-1:2014

The Dahua XVR1B04-I 4 Channel XVR is a versatile and reliable video recording solution designed for small to medium-scale surveillance systems. Supporting up to 1080P resolution, it deliver crystal-clear video playback and recording for enhanced security monitoring. With compatibility for a single SATA hard drive of up to 6TB, it offers ample storage for extended recording needs. The XVR supports H.265+ compression technology, optimizing storage usage while maintaining video quality. It features intelligent functions like motion detection and smart search, ensuring efficient surveillance management. Its compact design makes installation easy, while compatibility with multiple camera formats (HDCVI, AHD, TVI, CVBS, and IP) ensures seamless integration. The Dahua XVR1B04-I is an excellent choice for dependable, high-quality security.
