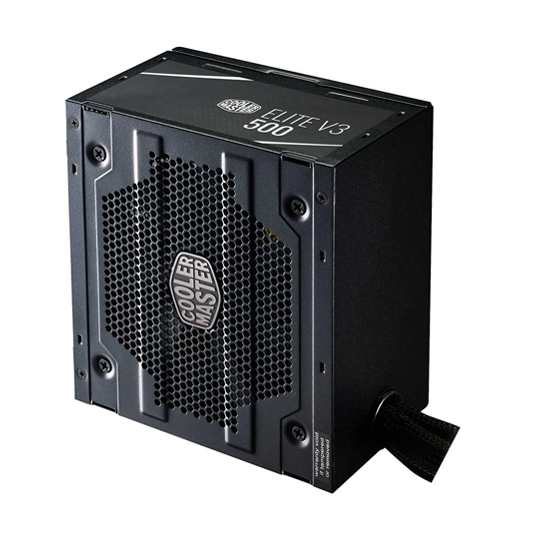

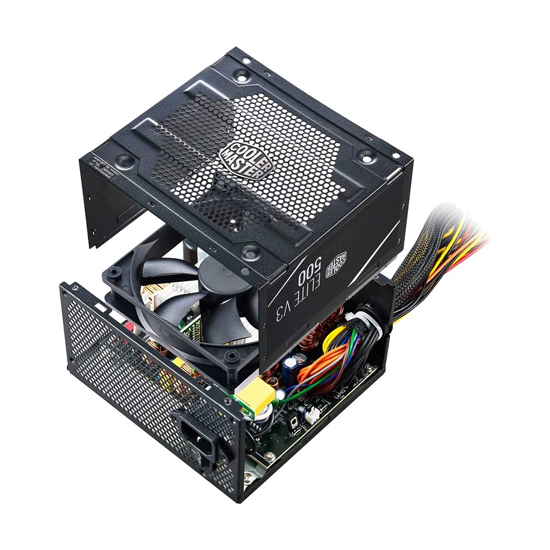

Cooler Master Elite V3 500W ATX Non-Modular Black Power Supply

Cooler Master Elite V3 500W ATX Non-Modular Black Power Supply

Model: Elite V3 500W

Reviews: No reviews yet

Price: 4,300.00৳

Regular Price: 4,900.00৳

Save: 600.00৳

Key Features:

  • Product Type: ATX 12V V2.31
  • Efficiency: 82% Efficiency
  • Color: Black
  • Form Factor: ATX
  • Manufacturing Warranty: 2 Years

Specifications

Basic Information

Product Type ATX 12V V2.31
PSU Category Non Modular

Fan / Cooling System

Fan Size 120mm
Fan Bearing Sleeve Fan

Performance

Efficiency 82% Efficiency
Efficiency Rating 80 Plus
PFC (Power Factor Correction) Active PFC (>0.9 Typical)
Power Good Signal 100 - 500 ms
Hold Up Time >10ms at 100% Full Load

Protection

Protection OVP, OPP, OTP, SCP
Over Voltage Protection (OVP) Yes
Over Power Protection (OPP) Yes
Over Temperature Protection (OTP) Yes
Short Circuit Protection (SCP) Yes

Ports & Slots

ATX Main Connectors 1
EPS Connectors 1
PCIe Connectors 2
SATA Power Connectors 6
4-Pin Peripheral Connectors 3
Floppy Connectors 1

Power Type

Min. Power (Approx.) 410W
Maximum Power 500 Watt
Input Voltage (V) 200 - 240V
Input Frequency Range 47Hz - 63Hz
Input Current 4A

Environmental

Operating Temperature 40 Degree C

Physical Specification

Color Black
Form Factor ATX
Dimension 140 x 86 x 150mm

Technical Info

MTBF >100,000 Hours

Additional Info / Features

Others Active Power Factor Correction, Greater Temperature Resistance, Peak Power Tolerance, Average Efficiency Of >80%, And A Refusal To Settle For Standard 82% Efficiency, Suitable For Any Environment
Specialty For Regular PC Users, The New Elite V3 Power Supply Is A Reliable Option. PCI-E Compatibility, A 120mm Silent Fan, And A Power Supply Unit That Draws Electricity Straight From The Wall Or Another Stationary Power Source

Warranty Information

Manufacturing Warranty 2 Years

Description

The Cooler Master Elite V3 500W ATX Non-Modular Black Power Supply is a reliable and efficient power supply unit designed for mid-range computer systems. With a continuous power output of 500 watts, it provides ample power for most computer components, including CPUs, GPUs, and peripherals. This power supply features a 24-pin ATX main connector, an 8-pin EPS12V connector, and an 8-pin PCI-E connector, ensuring compatibility with a wide range of motherboards and graphics cards. It also includes six SATA power connectors and three peripheral connectors, providing ample power for additional peripherals. The Cooler Master Elite V3 is equipped with a 120mm silent fan and Thermal Manager, which utilize advanced low-voltage fan control for optimal heat and noise management. This ensures that the power supply operates quietly and efficiently, even under heavy loads. Moreover, the power supply is equipped with over-voltage protection (OVP), over-current protection (OCP), short-circuit protection (SCP), and under-voltage protection (UVP), ensuring your system is shielded from electrical irregularities. Overall, the Cooler Master Elite V3 500W ATX Non-Modular Black Power Supply is an excellent choice for those seeking a dependable and efficient power solution for their computer system.
