Asus TUF GAMING B550M-PLUS DDR4 Micro ATX AMD Motherboard

Share:

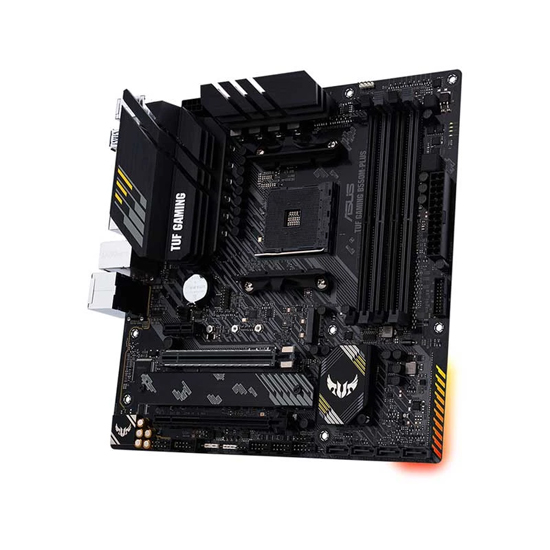

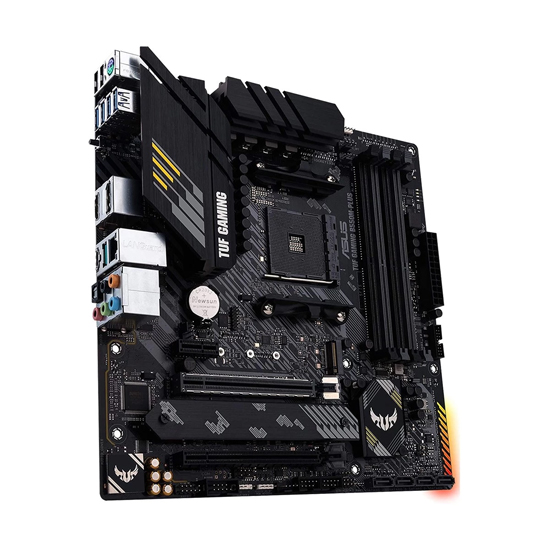

Asus TUF GAMING B550M-PLUS DDR4 Micro ATX AMD Motherboard

Asus TUF GAMING B550M-PLUS DDR4 Micro ATX AMD Motherboard

Model: TUF Gaming B550M-Plus

Reviews: No reviews yet

Price: 19,250.00৳

Regular Price: 19,999.00৳

Save: 749.00৳

Key Features:

  • Body Color: Black
  • Chipset: AMD B550
  • Memory Type: DDR4
  • Memory Max.: 128GB
  • Approx Power Consumption: 60W
  • Manufacturing Warranty: 03 Years Warranty

Specifications

Physical Specification

Body Color Black
Form Factor Micro-ATX

CPU

Chipset Brand AMD
Chipset AMD B550
Sockets Supported AM4
Supported CPU AMD Ryzen 3rd Generation Processors with Radeon Graphics Processors

Memory

Memory Type DDR4
Memory MHz 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133MHz
Memory Channel Dual
Memory Slot 4
Memory Slot (Additional Info) 4 x DIMM
Memory Max. 128GB
Memory Max. (Additional Info) 128GB

Storage

Storage Interface 6.0Gb/s
M.2/SSD Expansion Slot 2
M.2/SSD Expansion Slot Details 2 x M.2 Socket 3 (1 x M.2 (M Key, Type 2242/2260/2280 (PCIE 4.0 x4 And SATA modes) / 1 x M.2 (M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 And SATA Modes))

Graphics

Graphics Integrated
Graphics Chipset Integrated With Processor
Multi-GPU Support 2-Way AMD CrossFireX
PCI Express Slot 1 x PCIe 4.0 x16 (x16 Mode), 1 x PCIe 3.0 x16 (x16 Mode), 1 x PCIe 3.0 x16 (x4 Mode), 1 x PCIe 3.0 x1

Audio Sound & Microphone

Audio Chipset Realtek ALC S1200A
Audio Channel 7.1

Networking & Connectivity

LAN Chipset Realtek RTL8125B
LAN Speed (Mbps) 2.5Gbps

Ports & Slots

USB Port 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C), 2 x USB 2.0, 4 x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack)
HDMI Port 1
DisplayPort (DP) Yes
SATA Port 4 x SATA
TPM Port Yes
COM Port Yes

Technical Info

Cable Management Front
Heatsink Yes
CrossFire Support Yes
Raid Support 0, 1, 10
RGB Support ARGB
RGB Sync Aura Sync
RGB Connector 2 x Aura RGB Strip Headers, 1 x Addressable Gen 2 Header

Power Type

Approx Power Consumption 60W

Bios Information

BIOS Type 256 Mb Flash ROM
BIOS Model UEFI AMI BIOS

Compatibility

Supported Operating System Windows 10
Compatible Products Sockets Supported AM4: AMD Ryzen 3rd Generation

Warranty Information

Manufacturing Warranty 03 Years Warranty

Description

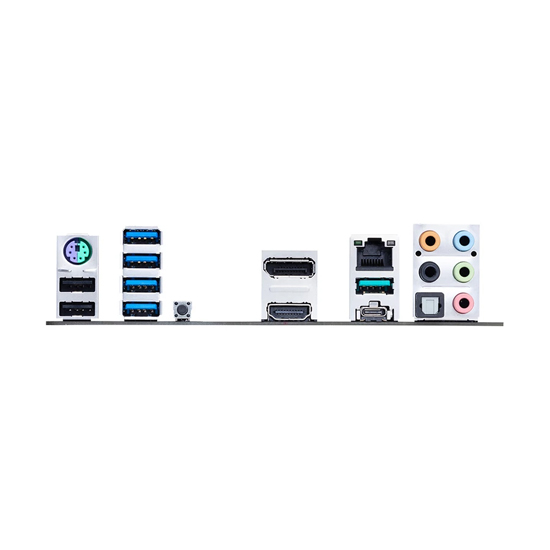

The Asus TUF GAMING B550M-PLUS DDR4 Micro ATX AMD Motherboard is designed for gamers and enthusiasts. It supports AMD Ryzen 5000/4000G Series and AMD Ryzen 3rd Generation Processors with the AMD B550 chipset. The motherboard features dual-channel DDR4 memory support, with speeds up to 4800 (O.C.)/4600 (O.C.)/4466 (O.C.)/4400 (O.C.)/4266 (O.C.)/4133 (O.C.)/4000 (O.C.)/3866 (O.C.)/3733 (O.C.)/3600 (O.C.)/3466 (O.C.)/3333 (O.C.)/3200/3000/2800/2666/2400/2133 MHz and up to 128GB of RAM across four memory slots. For storage, it offers two M.2 slots (Socket 3, M key, type 2242/2260/2280/22110) that support PCIe 4.0 x4 mode, and four SATA 6Gb/s ports, providing ample options for both traditional and modern storage solutions. Network connectivity is provided by Realtek RTL8125B 2.5G LAN, ensuring smooth and stable internet performance. The audio experience is enhanced with Realtek ALC897 Audio Codec, delivering high-quality sound for your entertainment needs. The back panel I/O ports feature one HDMI port, one DisplayPort, one VGA port, two USB 2.0 ports, four USB 3.2 Gen1 ports, and three audio jacks (Mic in, Line Out, and Line In). Expansion capabilities include one PCIe 4.0 x16 slot and two PCIe 4.0 x1 slots, allowing for additional hardware components. With its micro-ATX form factor (24.4 cm x 24.4 cm), the motherboard is suitable for compact PC builds, and it includes six mounting holes for secure installation.

Customer Reviews

No reviews yet. Be the first to leave a review!
