Price: 11,700.00৳
Regular Price: 12,900.00৳
Save: 1,200.00৳

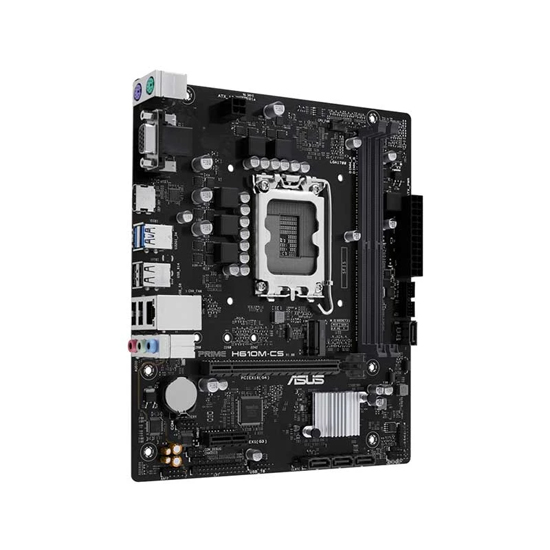

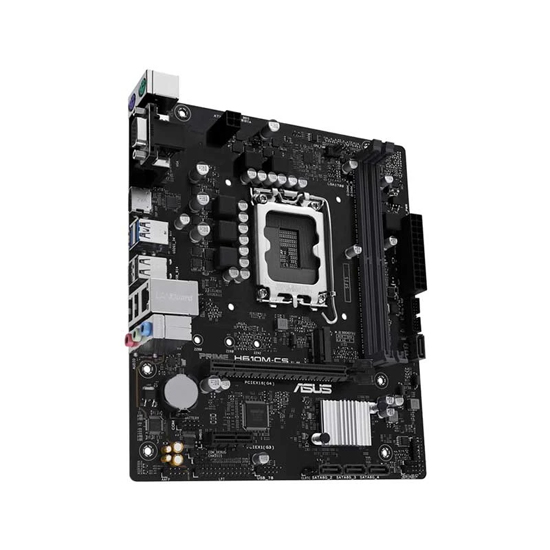

Asus PRIME H610M-CS DDR5 mATX Intel Motherboard
| Black |
| Micro-ATX |
| Intel |
| Intel H610 |
| LGA1700 |
| Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors |
| 12th/13th/14th |
| DDR5 |
| 5600MHz/ 5400MHz/ 5200MHz/ 5000MHz/ 4800MHz Non-ECC, Un-buffered Memory |
| Dual |
| 2 |
| 96GB |
| 6.0Gb/s |
| 1 |
| 1 x M.2 type 2242/2260/2280 (supports PCIe 3.0 x4 mode) |
| Integrated |
| Integrated With Processor |
| 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x1 slot |
| Realtek 7.1 Surround Sound High Definition Audio CODEC |
| 7.1 |
| Realtek 1Gb Ethernet |
| 10 / 100 / 1000Mbps |
| 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A) |
| 1 |
| 1 |
| 4 |
| Front |
| 60W |
| 128 Mb Flash ROM |
| UEFI AMI BIOS |
| Windows 11, Windows 10 |
| Intel Core 12th, 13th & 14th, Pentium Gold and Celeron Processors |
| Manageability: WOL by PME, PXE, Accessories: Cables, 2 x SATA 6Gb/s cables, Miscellaneous: 1 x I/O Shield, 1 x M.2 ANCHOR, Documentation: 1 x User guide, Supports Intel Extreme Memory Profile (XMP) |
| 3 Years Warranty |

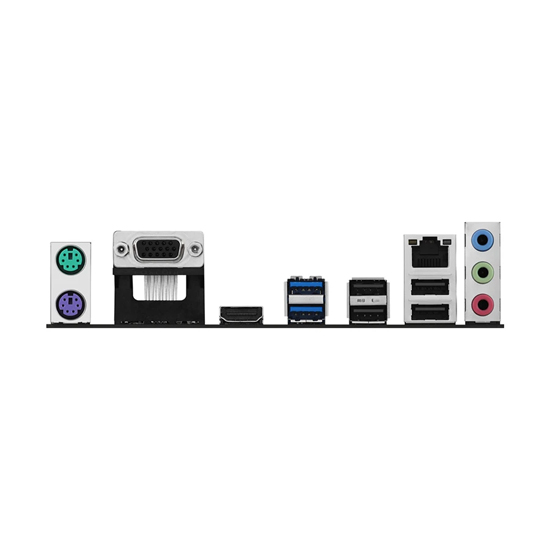

The Asus PRIME H610M-CS DDR5 Micro-ATX Motherboard is specifically designed for both office and home use. It supports the 14th, th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors, utilizing the Intel H610 chipset andGA1700 socket. This motherboard features dual-channel DDR5 memory support, accommodating speeds of up to 5600 MHz and a maximum of 96GB of RAM across two memory slots In terms of storage, it provides one M.2 (Socket 3, M key, type 2280/2260) that supports PCIe 3.0 x4 mode, along with four SATA 6Gb/s ports, which offer extensive options for both traditional and modern storage solutions. Network connectivity is facilitated by the Realtek RTL8111H Gigabit LAN ensuring smooth and stable internet performance. The audio experience is enhanced by the Realtek ALC897 Audio Codec, delivering high-quality sound for entertainment purposes The panel I/O ports include one VGA port, one HDMI port, two USB 3.2 Gen1 ports, four USB .0 ports, and three audio jacks (Mic in, Line Out, and Line In). Expansion capabilities consist of one PCIe 4.0 x16 slot and one PCIe 30 x1 slot, allowing for the addition of extra hardware components. With micro-ATX form factor (22.6 cm x 19.5 cm), this motherboard is well-suited for compact PC builds and includes six mounting holes for secure installation.
