Price: 10,300.00৳
Regular Price: 11,700.00৳
Save: 1,400.00৳

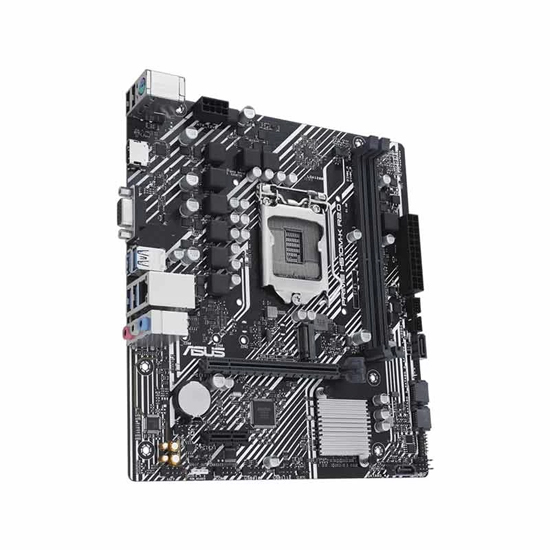

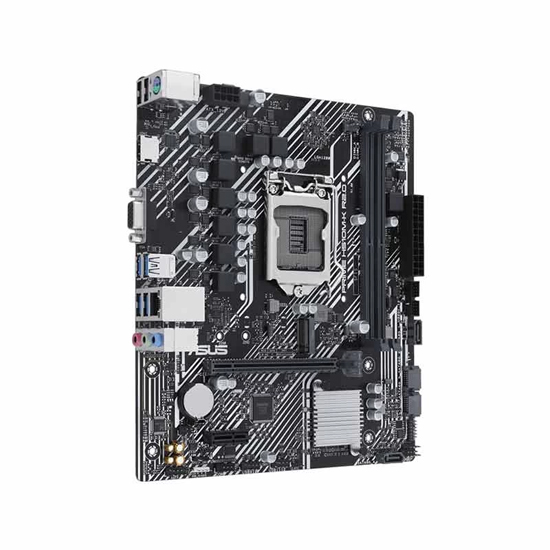

Asus PRIME H510M-K R2.0 Micro-ATX DDR4 Intel Motherboard
| Black |
| Micro-ATX |
| Intel |
| Intel H470 |
| LGA1200 |
| 10th / 11th Gen Intel Core, Pentium and Celeron processors |
| 10th/11th |
| DDR4 |
| 3200(OC)/ 3000(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory |
| Dual |
| 2 |
| 2 x DIMM |
| 64GB |
| 6.0Gb/s |
| 1 |
| 1 x M.2 slot (Key M) type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
| Integrated |
| Integrated With Processor |
| 1 x PCIe 4.0/3.0 x16 slot, 1 x PCIe 3.0 x1 slot |
| Realtek 7.1 Surround Sound High Definition Audio CODEC |
| 7.1 |
| 1 x Realtek 1Gb Ethernet |
| 0/100/1000 Mbps |
| 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
| 1 |
| 1 |
| 2 x SATA |
| 1 |
| 1 |
| Front |
| RGB |
| ASUS Lighting Control |
| 1 x RGB header |
| 60W |
| 128 Mb Flash ROM |
| UEFI AMI BIOS |
| Windows 10 |
| LGA1200 Socket 10th & 11th Gen Intel Processor |
| ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot), ASUS Thermal Solution (Aluminum heatsink design), ASUS Lighting Control, and ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core |
| 3 Years |

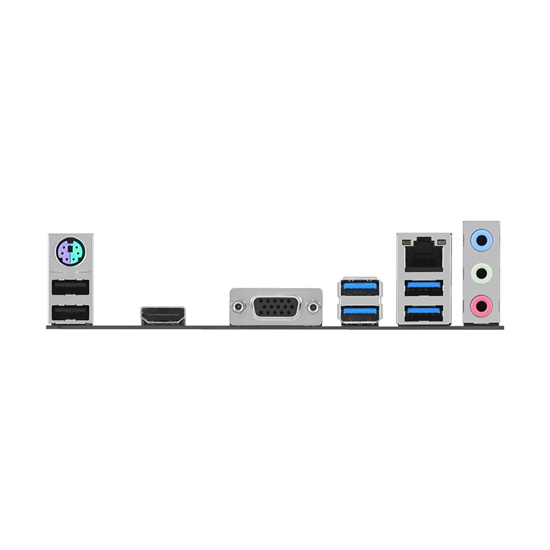

The Asus PRIME H510M-K R2.0 Micro-ATX Motherboard is designed for both and home use. It supports 10th and 11th Generation Intel Core, Pent Gold, Celeron processors, utilizing the Intel H510 chipset and LGA1200 socket. The motherboard features dual-channel DDR4 memory support, with speeds up to 3200 MHz and accommodating up to 64GB of RAM across two memory slots. For storage options, provides one M.2 slot (Socket 3, M key, type2280/2260) that supports PCIe 3.0 x4 mode, in addition to four SATA 6Gb/s ports, offer ample choices for both traditional and modern storage solutions. Network connectivity is facilitated by Realtek RTL1H Gigabit LAN, ensuring smooth and stable internet performance. The audio experience is by the Realtek A Audio Codec, delivering high-quality sound entertainment needs. back panel I/O ports include one VGA, one HDMI port, two USB 3.2 Gen1 ports, USB 20 ports, and three audio jacks (Mic in, Line Out, and Line In). Expansion capabilities consist of one PCIe 4.0 x16 slot and one PCIe 3.0 x1, allowing for additional hardware components With its micro-ATX form factor (22.6 cm x 20.3 cm the motherboard is suitable for compact PC builds and includes six mounting holes for secure installation. Furthermore, the motherboard is backed by a 3-year warranty, providing reliability and peace of mind.
