Price: 14,900.00৳
Regular Price: 15,700.00৳
Save: 800.00৳

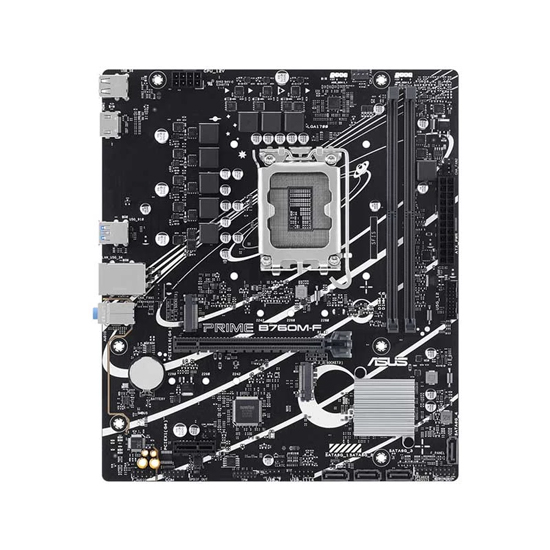

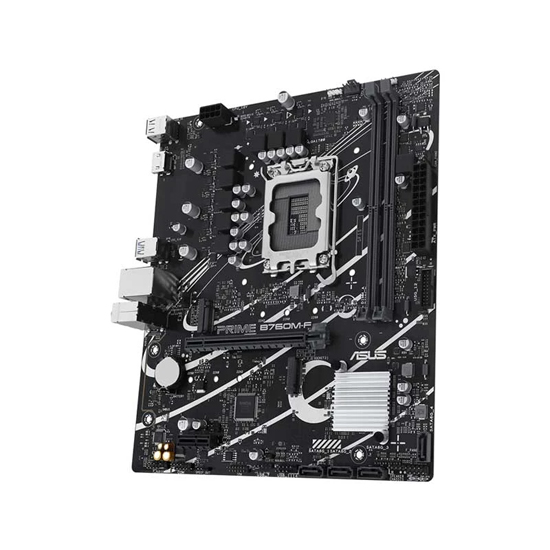

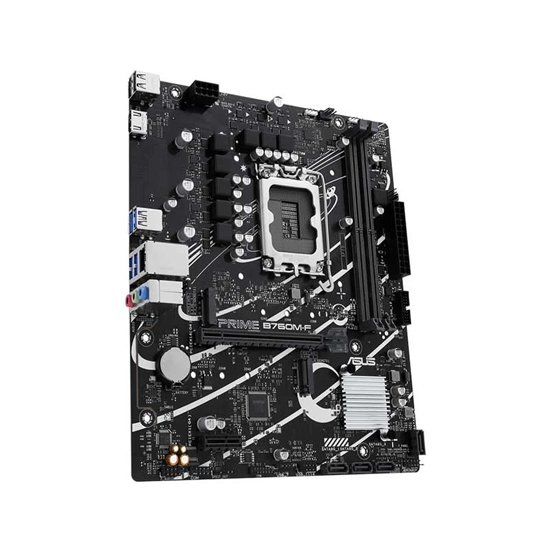

Asus PRIME B760M-F DDR5 Intel Motherboard
| Black |
| Micro-ATX |
| Intel |
| Integrated |
| LGA1700 |
| Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold And Celeron Processors |
| 12th/13th/14th |
| DDR5 |
| 8000(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-Buffered Memory |
| Dual |
| 2 |
| 96GB |
| 6.0Gb/s |
| 2 |
| 2 x M.2 (M.2_1 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 x4 Mode), M.2_2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 x4 Mode) |
| Integrated With Processor |
| 1 x PCIe 4.0 x16 (Intel Core Processors (14th & 13th & 12th Gen)), 1 x PCIe 4.0 x1 (Intel B760 Chipset) |
| Realtek 7.1 Surround Sound High Definition Audio CODEC |
| 7.1 |
| 1 x Realtek 1Gb Ethernet |
| 10/100/1000Mbps |
| 2 x USB 2.0 Type-A, 4 x USB 5Gbps Type-A |
| 1 |
| 4 x SATA |
| 1 |
| 1 |
| Front |
| Yes |
| 0, 1, 5, 10 |
| ARGB |
| AURA Sync |
| 2 x Addressable Gen 2 Headers |
| 60W |
| 128 Mb Flash ROM |
| UEFI AMI BIOS |
| Windows 11, 10 |
| 14th, 13th, And 12th Gen Intel Core, Pentium Gold And Celeron Processors |
| 3 Years Warranty |

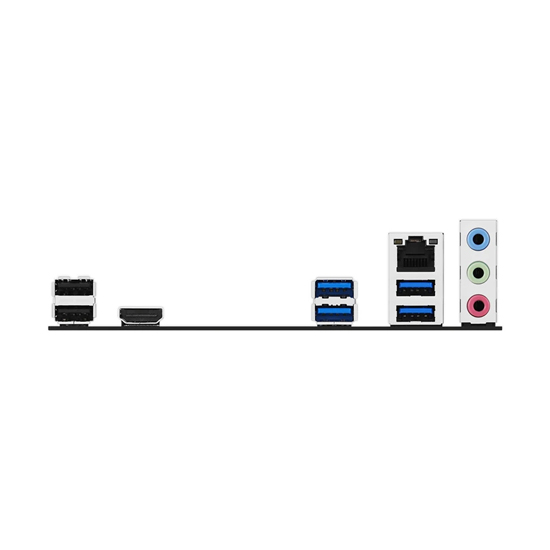

The Asus PRIME B760M-F mATX Motherboard is a versatile and reliable motherboard designed to support Intel's 14th, 13th, and 12th Gen Core processors (LGA1700 socket). It features the Intel B760 chipset, ensuring compatibility with a wide range of components and providing stable performance for everyday computing tasks. This motherboard supports dual-channel DDR5 memory with speeds of 8000 (O.C.)/7800 (O.C.)/7600 (O.C.)/7400 (O.C.)/7200 (O.C.)/7000 (O.C.)/6800 (O.C.)/6600 (O.C.)/6400 (O.C.)/6200 (O.C.)/6000 (O.C.)/5800 (O.C.)/5600/5400/5200/5000/4800 MHz and up to 96GB of RAM across two memory slots. For storage, it offers two M.2 slots (Socket 3, M key, type 2242/2260/2280/22110) that support PCIe 4.0 x4 mode, and four SATA 6Gb/s ports, providing ample options for both traditional and modern storage solutions. Network connectivity is provided by Realtek RTL8111H Gigabit LAN, ensuring smooth and stable internet performance. The audio experience is enhanced with Realtek ALC897 Audio Codec, delivering high-quality sound for your entertainment needs. The back panel I/O ports feature one HDMI port, one VGA port, two USB 2.0 ports, four USB 5Gbps ports, and three audio jacks (Mic in, Line Out, and Line In). Expansion capabilities include one PCIe 4.0 x16 slot and one PCIe 4.0 x1 slot, allowing for additional hardware components. With its micro-ATX form factor (24.4 cm x 21.1 cm), the motherboard is suitable for compact PC builds, and it includes six mounting holes for secure installation. Overall, the Asus PRIME B760M-F mATX Motherboard is an excellent choice for building a powerful and efficient PC.
