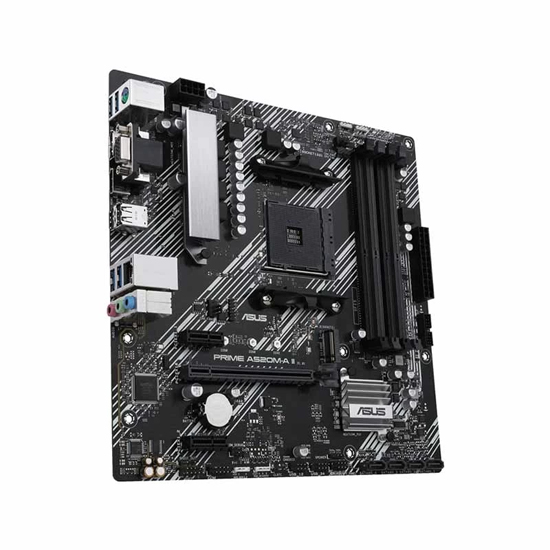

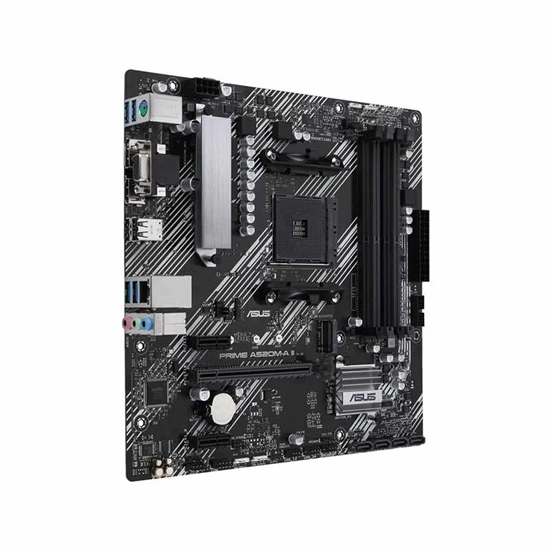

Asus PRIME A520M-A II AM4 micro ATX AMD Motherboard
Body Color | Black |
Form Factor | Micro-ATX |
Chipset Brand | AMD |
Chipset | AMD A520 |
Sockets Supported | AM4 |
Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
Memory Type | DDR4 |
Memory MHz | 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC) /3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory |
Memory Channel | Dual |
Memory Slot | 4 |
Memory Max. | 128GB |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 1 |
M.2/SSD Expansion Slot Details | 1 x M.2 (M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)) |
Graphics | Integrated |
Graphics Chipset | Integrated With Processor |
PCI Express Slot | 1 x PCIe 3.0 x 16 (supports x16 mode), 2 x PCIe 3.0 x 1 |
Audio Chipset | Realtek ALC887/897 |
Audio Channel | 7.1 |
LAN Chipset | Realtek 1Gb Ethernet |
LAN Speed (Mbps) | 10/100/1000Mbps |
USB Port | 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
HDMI Port | 1 |
DisplayPort (DP) | 1 |
SATA Port | 4 x SATA |
Cable Management | Front |
Raid Support | 0, 1, 10 |
RGB Support | RGB |
RGB Sync | Aura RGB |
RGB Connector | 2 x AURA RGB headers |
Approx Power Consumption | 60W |
BIOS Type | 128 Mb Flash ROM |
BIOS Model | UEFI AMI BIOS |
Supported Operating System | Windows 10 |
Feature | Special Features: ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O, ASUS Q-Design: ASUS Q-DIMM, ASUS Q-Slot |
Manufacturing Warranty | 03 Year Warranty |

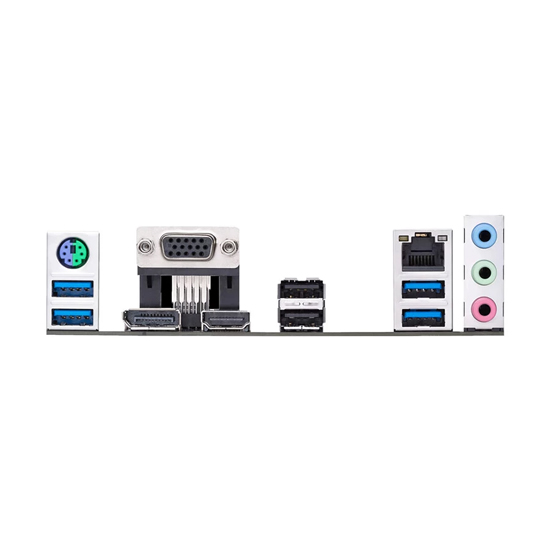

The Asus PRIME520M-A II AM4 Micro-ATX Motherboard is designed for both and home use. It supports AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, and Ryzen 3000 Series processors, utilizing the A chipset and AM4 socket. The motherboard features dual-channel DDR4 memory support, with speeds of up to 4866 (O.C.) and a maximum capacity of 128 of RAM across two memory slots. For storage, it provides one M.2 slot (Socket3, M key, type 2280) supporting PCIe 3.0 x4 mode, as well as four 6Gb/s, thereby offering options for both traditional and modern storage solutions. Network is facilitated by Realtek RTL8111H Gigabit LAN, ensuring smooth and stable internet performance. The audio experience is enhanced by the Realtek ALC Audio Codec, delivering high-quality sound for entertainment needs. back panel I/O ports consist of one Display, one VGA, two USB 3.2 Gen ports, four USB 2.0 ports, and three audio jacks ( in, Line Out, and Line In). Expansion capabilities include one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot, enabling the addition of further hardware components. With its micro-ATX form factor (24.4 x 24.4 cm), the motherboard is suitable for compact PC builds and features six mounting holes for secure installation. Additionally, the motherboard is backed by a 3-year warranty, providing reliability and peace of mind.
